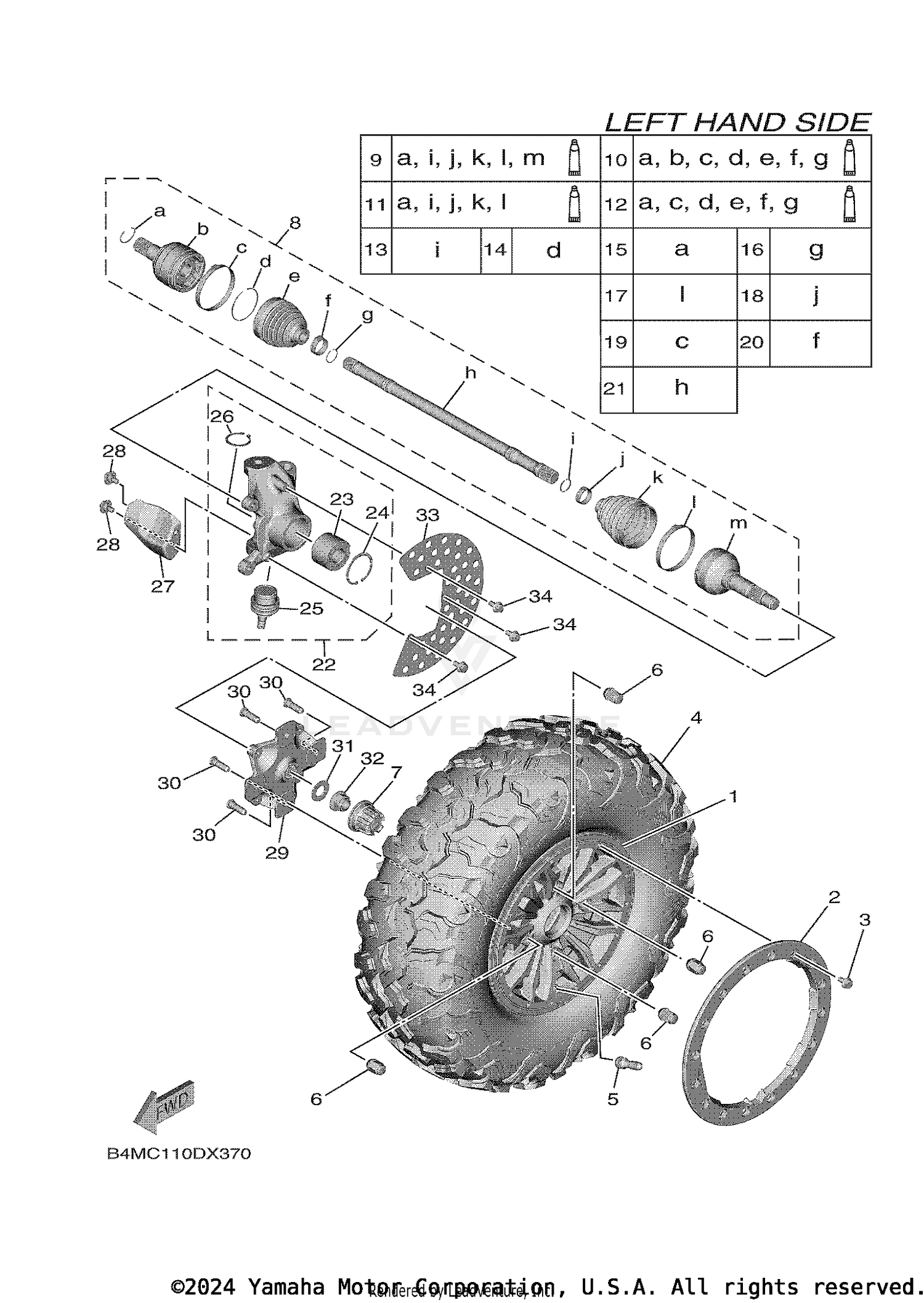

| Ref | Part Number | Description |
|---|
| 1 |
BKP-F5168-30-00 |
CAST, WHEEL FRONT MATT BLACK This part replaces B5H-F5168-11-00. Price: $422.99 |
| 2 |
B5H-F5185-30-00 |
RING 1 Price: $170.99 |
| 3 |
90105-088J5-00 |
BOLT, FLANGE Price: $3.55 |
| 6 |
90176-12801-00 |
NUT, CROWN Price: $3.55 |
| 7 |
2HC-F512A-00-00 |
CAP, WHEEL Price: $3.25 |
| 8 |
B4J-2518F-02-00 |
DRIVE SHAFT ASSY This part replaces B4J-2518F-01-00. Price: $249.99 |
| 10 |
B4J-2510J-02-00 |
DOUBLE OFF SET JOI This part replaces B4J-2510J-01-00. Price: $299.99 |
| 11 |
B4J-2510G-02-00 |
BOOT SET (BALL JOI This part replaces B4J-2510G-01-00. Price: $53.99 |
| 13 |
BG4-25185-00-00 |
CIRCLIP Price: $5.99 |
| 14 |
2HC-2536E-00-00 |
CLIP, SPRING Price: $5.49 |
| 15 |
16B-2536E-00-00 |
CLIP, SPRING Price: $5.49 |
| 16 |
2HC-2512J-00-00 |
SNAP RING Price: $4.95 |
| 17 |
B4J-2511H-00-00 |
BOOT BAND(DOUBLE OFF Price: $9.49 |
| 18 |
B4J-2511G-00-00 |
BOOT BAND (BALL JOIN Price: $8.49 |
| 19 |
2HC-26293-00-00 |
BAND Price: $10.99 |
| 20 |
2HC-25719-00-00 |
BAND Price: $7.49 |
| 21 |
B4J-2518E-00-00 |
SHAFT Price: $145.99 |
| 22 |
B4J-F3501-00-00 |
STEERING KNUCKLE A Price: $240.99 |
| 23 |
93305-00604-00 |
BEARING Price: $136.99 |
| 24 |
99009-62500-00 |
CIRCLIP Price: $9.49 |
| 25 |
2HC-23579-00-00 |
BALL JOINT 2 Price: $104.99 |
| 26 |
93410-42096-00 |
CIRCLIP Price: $2.75 |
| 27 |
B4J-F3123-00-00 |
COVER, UNDER 1 Price: $3.75 |
| 28 |
90109-06202-00 |
BOLT Price: $3.10 |
| 29 |
B5H-F5111-02-00 |
HUB, FRONT This part replaces B5H-F5111-01-00. Price: $142.99 |
| 30 |
90114-12005-00 |
BOLT, SERRATION Price: $3.20 |
| 31 |
90201-25023-00 |
WASHER, PLATE Price: $11.49 |
| 32 |
90179-24006-00 |
NUT This part replaces 90179-24801-00. Price: $15.49 |
| 33 |
2HC-F514A-00-00 |
RING, WHEEL 1 Price: $9.49 |
