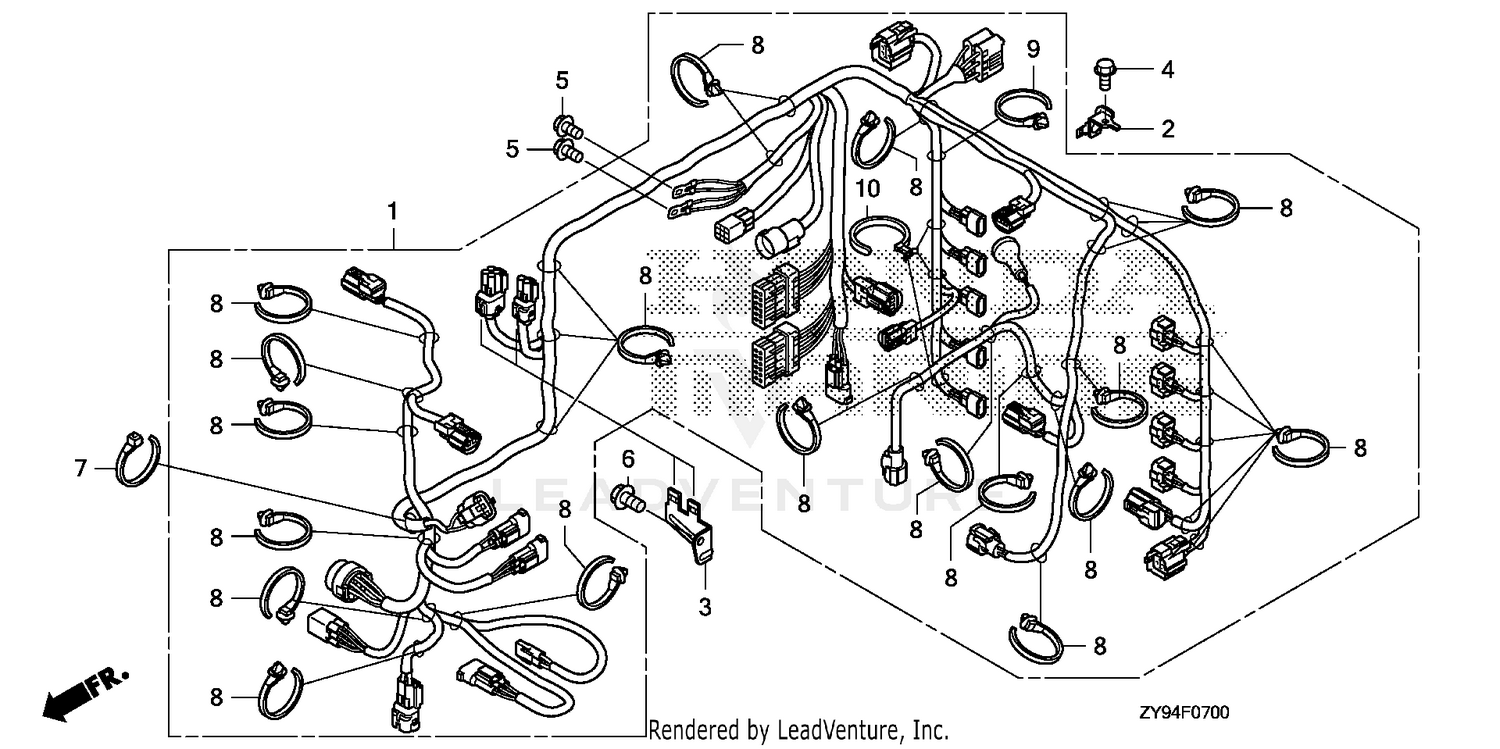

MAIN WIRE HARNESS
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 32100-ZZ0-000 | WIRE HARNESS ASSY., MAIN Price: $840.10 |
| 2 | 32101-ZY9-000 | BRACKET A, CONNECTOR Price: $15.98 |
| 3 | 32103-ZY9-000 | BRACKET C, CONNECTOR Price: $6.98 |
| 4 | 90011-ZW9-000 | SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (CT200) Price: $2.34 |
| 5 | 90013-ZW9-000 | BOLT, FLANGE (6X12) Price: $2.02 |
| 6 | 90103-ZZ0-M01 | BOLT, FLANGE (6X10) Price: $1.80 |
| 7 | 90652-ZY9-003 | BAND, WIRE HARNESS Price: $4.28 |
| 8 | 91541-S0A-003 | CLIP, HARNESS BAND (145MM) (BLACK) Price: $4.98 |
| 9 | 91551-SW5-003 | CLIP, HARNESS BAND (151MM) (BROWN) Price: $8.52 |
