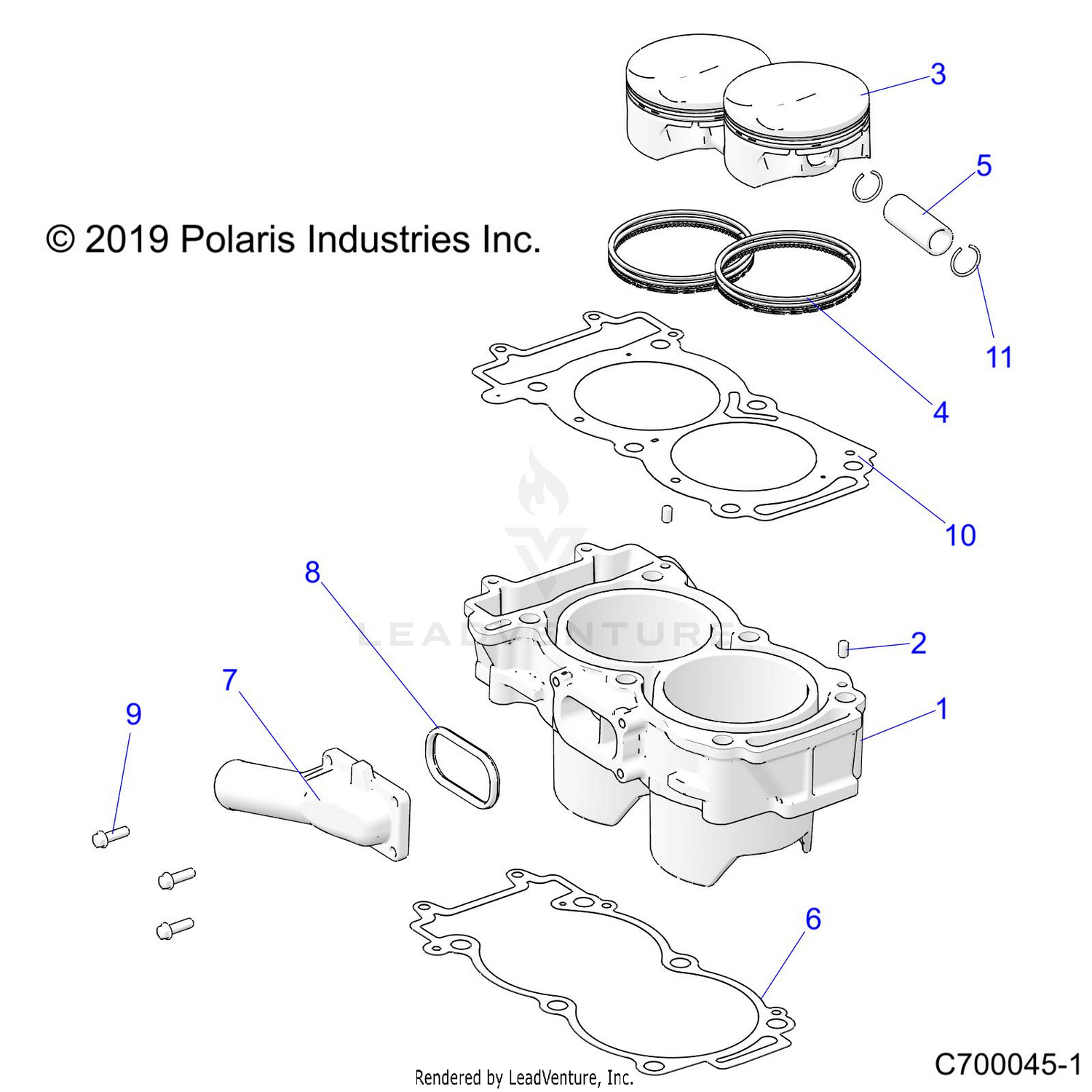

ENGINE, CYLINDER AND PISTON - R26RRE99CN/C9/EN/E9 (C700045-1)
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 5132835 | PIN-DOWEL,M6X10 Price: $2.99 |
| 4 | 2204949 | KIT, PISTON RING This part replaces 2205245. Price: $104.99 |
| 5 | 3022358 | PIN-PISTON Price: $29.99 |
| 6 | 5272970 | GASKET-BASE,2 CYL Price: $44.99 |
| 7 | 5632557 | COVER-WATER INLET,CAST Price: $18.99 |
| 8 | 5813736 | GASKET-WATER,INLET Price: $29.99 |
| 9 | 7518576 | SCREW-HXFL-M6X1.0X20 8.8 ZY3 Price: $3.99 |
| 10 | 5814793 | GASKET-CYLINDER,HEAD Price: $74.99 |
