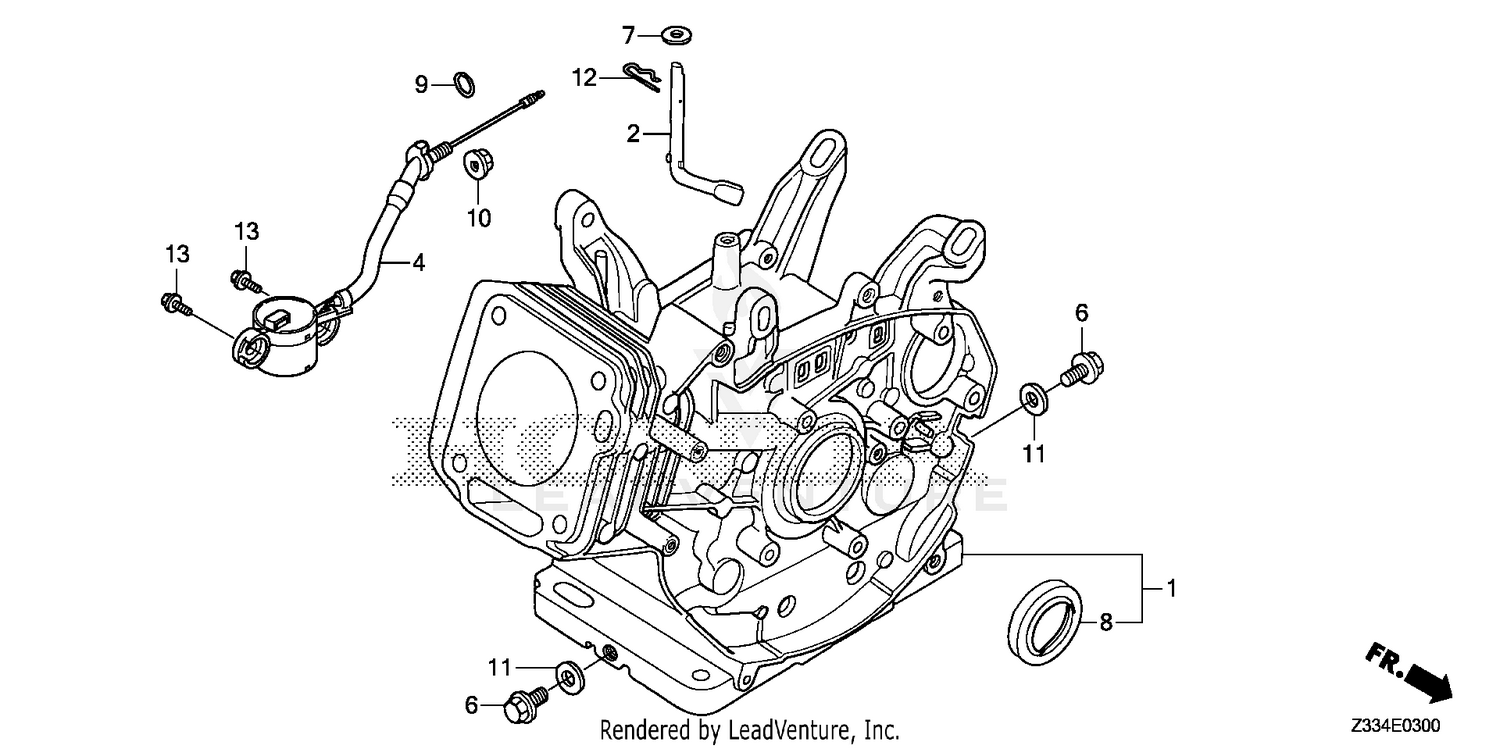

| Ref | Part Number | Description |
|---|
| 1 |
12000-Z5K-406 |
CYLINDER ASSY. Price: $124.61 |
| 2 |
16541-ZE2-010 |
SEE PART DETAILS - PRI; SHAFT, GOVERNOR ARM Price: $12.16 |
| 6 |
90131-896-650 |
SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (Honda Code 1986231). Price: $2.76 |
| 7 |
90446-KE1-000 |
WASHER (8.2X17X0.8) (Honda Code 2027134). Price: $2.22 |
| 8 |
91201-Z1D-003 |
OIL SEAL (30X46X8) (NOK ASIA) Price: $13.12 |
| 8 |
91201-Z7B-003 |
OIL SEAL (30X46X8) Price: $10.96 |
| 9 |
91353-671-003 |
SEE PART DETAILS - PRI; O-RING (14MM) (ARAI) Use up to Engine SN 2949254. Price: $3.60 |
| 10 |
94050-10000 |
SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0483867). Price: $1.94 |
| 11 |
94109-12000 |
SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM) (Honda Code 0171868). Price: $1.54 |
| 12 |
94251-10000 |
PIN, LOCK (10MM) (Honda Code 0159269). Price: $1.50 |
