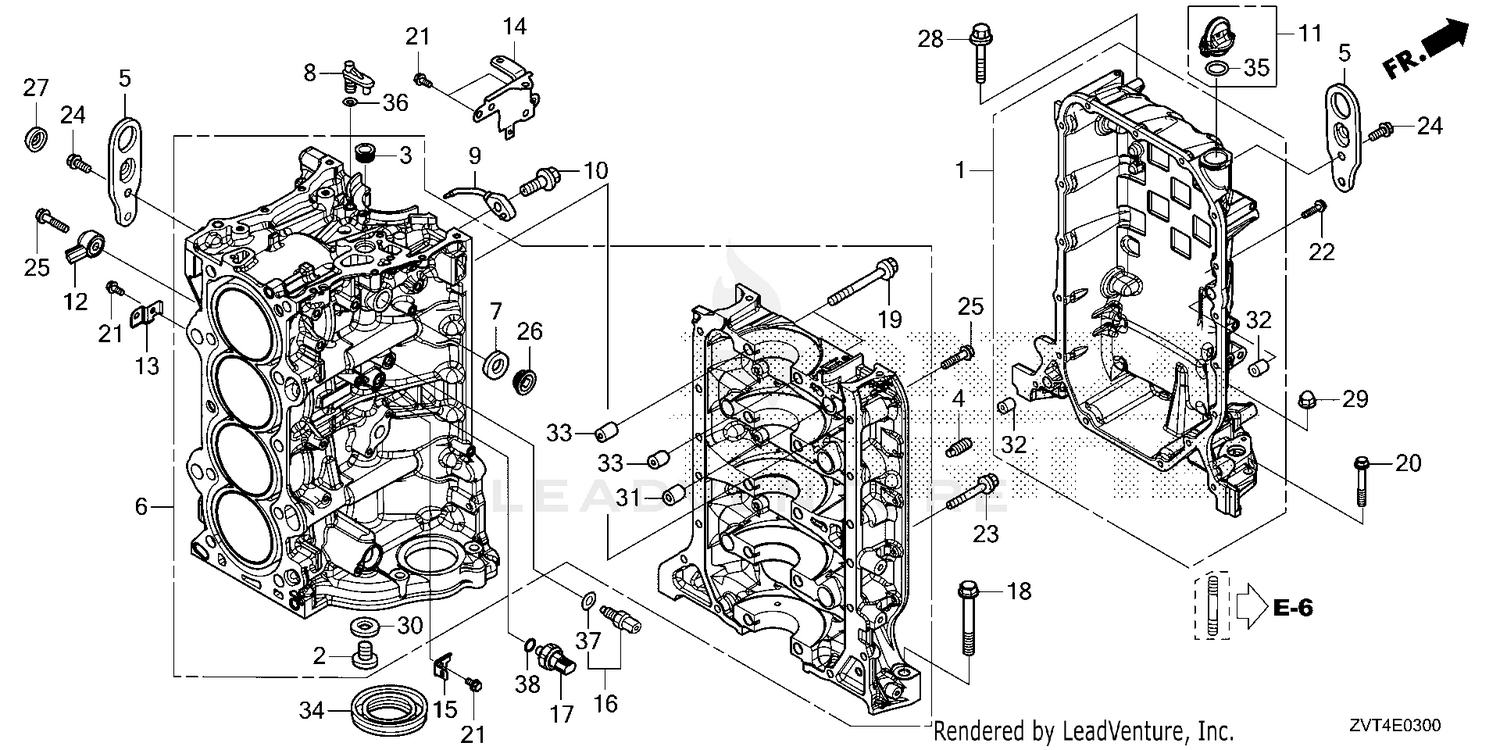

| Ref | Part Number | Description |
|---|
| 1 |
11100-ZVT-405 |
CRANKCASE COMP Price: $379.65 |
| 2 |
11106-PR4-013 |
BOLT, SEALING (28MM) Price: $20.74 |
| 3 |
11106-ZY6-000 |
BOLT, SEALING (20MM) Price: $9.32 |
| 4 |
11135-PNA-000 |
ORIFICE, BLOCK (LOWER) Price: $10.94 |
| 5 |
11911-ZY6-000 |
HANGER, ENGINE Price: $28.02 |
| 6 |
12000-ZVT-405ZA |
BLOCK (0000) *NH8* Price: $2,349.36 |
| 7 |
12214-ZV5-000 |
SEE PART DETAILS - PRI; WASHER, SEALING (22MM) Price: $4.00 |
| 8 |
15152-ZY6-000 |
ORIFICE, OIL JET Price: $26.64 |
| 9 |
15280-PRB-A00 |
BODY, OIL JET Price: $34.48 |
| 10 |
15290-PRA-000 |
BOLT, OIL JET Price: $45.16 |
| 11 |
15600-ZY9-M00 |
CAP ASSY., OIL FILLER Price: $13.04 |
| 12 |
30530-R1A-A01 |
SENSOR, KNOCK Price: $236.04 |
| 13 |
32114-ZVL-000 |
BRACKET, CLIP B Price: $3.96 |
| 14 |
32114-ZY6-010 |
BRACKET D, HARNESS CLIP Price: $24.56 |
| 15 |
32117-ZVT-000 |
BRACKET, HARN CLIP G Price: $4.58 |
| 16 |
35673-ZY3-003 |
SENSOR ASSY., WATER TEMPERATURE Price: $30.98 |
| 17 |
37260-RNA-A01 |
SENSOR, OIL PRESSURE Price: $445.42 |
| 18 |
90005-ZY6-030 |
BOLT, FLANGE (12X83) Price: $10.94 |
| 19 |
90006-PNA-003 |
BOLT-WASHER (11X95) Price: $10.34 |
| 20 |
90010-ZVL-010 |
BOLT, FLANGE (8X55) Price: $1.80 |
| 21 |
90011-ZZ5-M01 |
BOLT, FLANGE (6X14) (CT200) Price: $1.62 |
| 22 |
90014-ZZ5-M01 |
BOLT, FLANGE (6X25) Price: $2.56 |
| 23 |
90020-ZVL-010 |
BOLT, FLANGE (8X50) Price: $1.70 |
| 24 |
90026-ZY9-M01 |
BOLT, FLANGE (8X20) Price: $2.04 |
| 25 |
90054-ZY9-M01 |
BOLT, FLANGE (8X35) Price: $2.36 |
| 26 |
90081-ZY6-010 |
BOLT, SEALING (22MM) Price: $9.18 |
| 27 |
90082-ZY6-003 |
CAP, BOLT (8MM) Price: $3.96 |
| 28 |
90162-ZW4-030 |
BOLT, FLANGE (10X70) Price: $2.98 |
| 29 |
90204-ZVL-010 |
NUT (10MM) Price: $1.64 |
| 30 |
90401-PR4-000 |
WASHER, SEALING (28MM) Price: $7.28 |
| 31 |
90703-PE0-000 |
PIN, DOWEL (18X22) Price: $12.68 |
| 32 |
90715-PC6-000 |
PIN, DOWEL (13X20) (Honda Code 1477652). Price: $7.74 |
| 33 |
90715-PNA-000 |
PIN, DOWEL (13X14) Price: $7.74 |
| 34 |
91214-RNB-A01 |
SEE PART DETAILS - PRI; OIL SEAL (80X98X10) (ARAI) This part replaces 91214-PNA-014. Price: $23.48 |
| 35 |
91302-MAL-601 |
O-RING (18.1X3.6) Price: $4.86 |
| 36 |
91305-ZY6-003 |
O-RING (6.5X1.5) Price: $2.32 |
| 37 |
91307-PNA-003 |
O-RING (9.5X1.9) Price: $2.76 |
