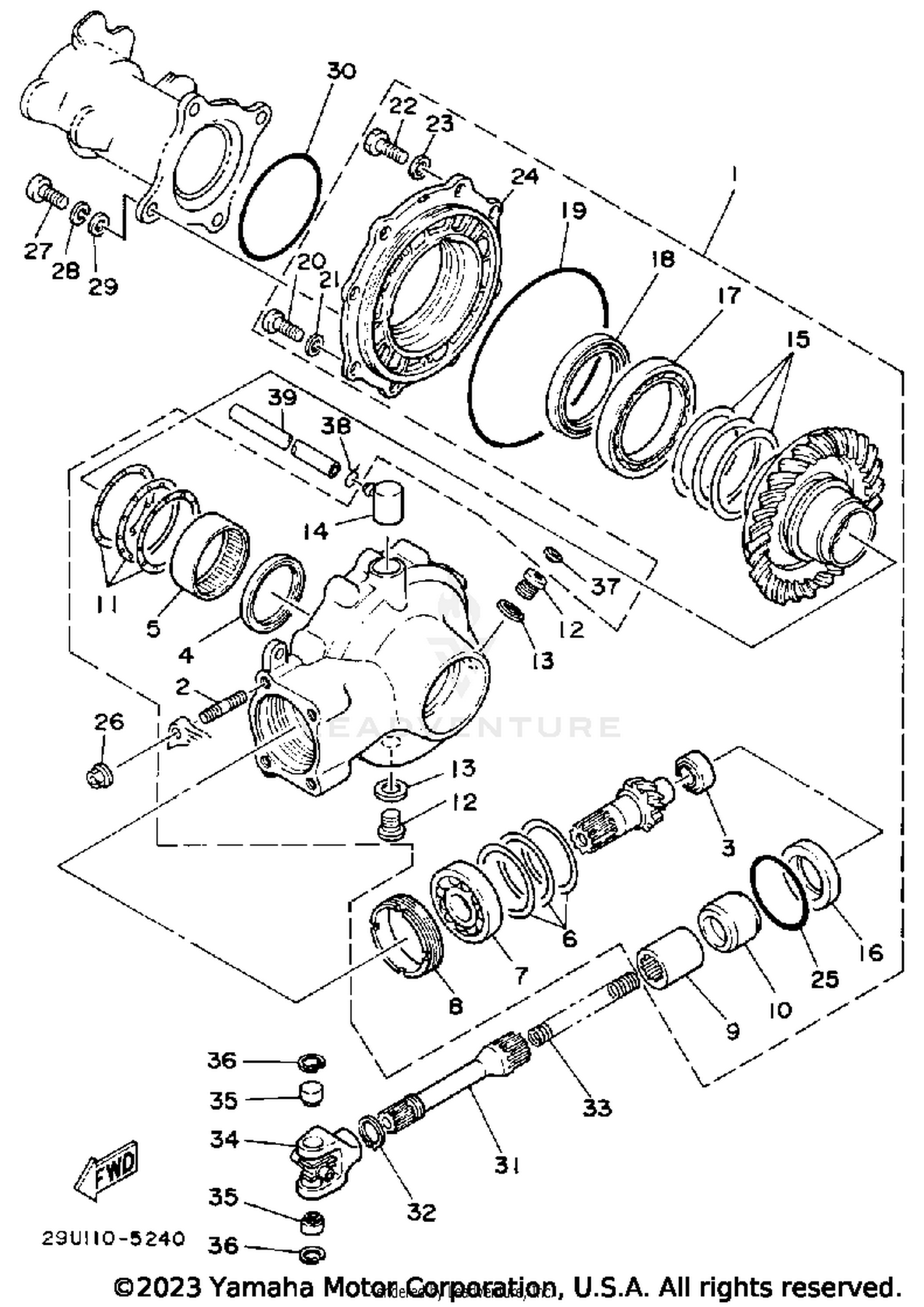

| Ref | Part Number | Description |
|---|
| 1 |
29U-46101-01-00 |
R.AXLE GEAR CS.ASY Price: $714.99 |
| 2 |
95617-08620-00 |
BOLT, STUD This part replaces 90116-08360-00. Price: $8.49 |
| 3 |
24W-46102-00-00 |
BEARING ASSY Price: $41.99 |
| 4 |
93101-52116-00 |
OIL SEAL Price: $18.49 |
| 5 |
93317-85569-00 |
BEARING Price: $93.99 |
| 7 |
93306-30533-00 |
BEARING This part replaces 93306-30539-00. Price: $149.99 |
| 8 |
29U-46125-00-00 |
RETAINER, BEARING Price: $100.99 |
| 9 |
2HR-46123-00-00 |
COUPLING, GEAR Price: $58.99 |
| 10 |
90387-255H9-00 |
COLLAR Price: $36.99 |
| 12 |
90340-14002-00 |
PLUG, STRAIGHT SCREW This part replaces 90340-14046-00. Price: $22.99 |
| 13 |
214-11198-01-00 |
GASKET Price: $3.17 |
| 14 |
2H7-17591-01-00 |
BREATHER Price: $24.99 |
| 16 |
93101-38098-00 |
OIL SEAL, (S) TYPE Price: $19.49 |
| 17 |
93316-01301-00 |
BEARING Price: $120.99 |
| 18 |
93102-65277-00 |
OIL SEAL Price: $18.49 |
| 19 |
93211-44348-00 |
O-RING Price: $20.99 |
| 20 |
97013-08025-00 |
BOLT, KICK CRANK Price: $9.49 |
| 21 |
92990-08600-00 |
WASHER, PLATE This part replaces 92901-08600-00. Price: $2.70 |
| 22 |
97017-10025-00 |
BOLT This part replaces 97011-10025-00. Price: $9.49 |
| 23 |
92990-10600-00 |
WASHER, PLATE Price: $3.00 |
| 24 |
3GC-46152-00-00 |
HOUSING, BEARING This part replaces 29U-46152-00-00. Price: $195.99 |
| 25 |
93210-59531-00 |
O-RING Price: $17.49 |
| 26 |
95704-08500-00 |
NUT, FLANGE This part replaces 95701-08500-00. Price: $9.49 |
| 27 |
97017-10025-00 |
BOLT This part replaces 97011-10025-00. Price: $9.49 |
| 28 |
92990-10100-00 |
WASHER, SPRING Price: $3.25 |
| 29 |
92990-10600-00 |
WASHER, PLATE Price: $3.00 |
| 30 |
93210-85075-00 |
O-RING Price: $5.49 |
| 31 |
29U-46172-01-00 |
SHAFT,DRIVE Price: $76.99 |
| 32 |
99009-20400-00 |
CIRCLIP Price: $9.49 |
| 33 |
90501-16780-00 |
SPRING, COMPRESSION Price: $6.49 |
| 36 |
99009-17500-00 |
CIRCLIP Price: $2.65 |
| 37 |
341-23469-00-00 |
CAP, BOLT Price: $10.99 |
| 38 |
90467-07029-00 |
CLIP Price: $2.60 |
