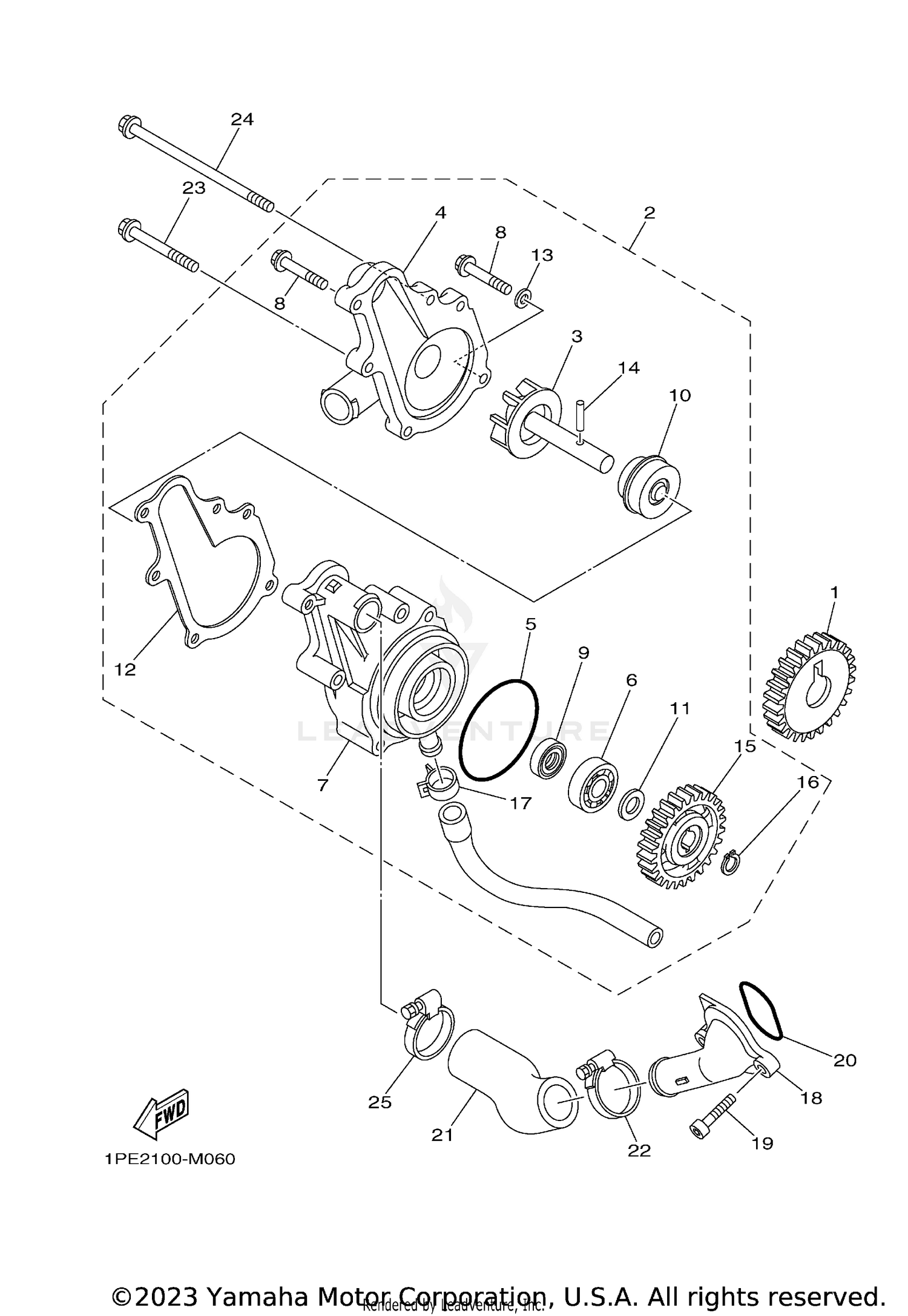

| Ref | Part Number | Description |
|---|
| 1 |
1S3-12436-00-00 |
GEAR, DRIVE Price: $58.99 |
| 2 |
1S3-12420-00-00 |
WATER PUMP ASSY Price: $315.99 |
| 3 |
1S3-12450-00-00 |
IMPELLER SHAFT ASSY Price: $62.99 |
| 4 |
1S3-12422-00-00 |
COVER, HOUSING Price: $65.99 |
| 5 |
93210-61750-00 |
O-RING Price: $9.49 |
| 6 |
93306-00105-00 |
BEARING This part replaces 93306-00106-00. Price: $33.99 |
| 7 |
1S3-12421-00-00 |
HOUSING, WATER PUMP Price: $81.99 |
| 8 |
95022-06025-00 |
BOLT, FLANGE Price: $1.90 |
| 9 |
93101-12173-00 |
OIL SEAL Price: $14.49 |
| 10 |
4C8-12438-00-00 |
SEAL, MECHANICAL Price: $53.99 |
| 11 |
90201-12541-00 |
WASHER, PLATE Price: $8.49 |
| 12 |
1S3-12428-00-00 |
GASKET, HOUSING COVER 2 Price: $11.99 |
| 13 |
90430-06014-00 |
GASKET Price: $8.60 |
| 14 |
93603-16219-00 |
PIN, DOWEL Price: $9.49 |
| 15 |
5VK-12459-00-00 |
GEAR, IMPELLER SHAFT Price: $47.99 |
| 16 |
99009-12400-00 |
CIRCLIP Price: $3.59 |
| 17 |
90467-14117-00 |
CLIP(MG5) This part replaces 90467-13062-00. Price: $9.49 |
| 18 |
1S3-12469-00-00 |
JOINT 1 Price: $22.99 |
| 19 |
91314-06020-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 91312-06020-00. Price: $2.65 |
| 20 |
93210-33006-00 |
O-RING Price: $5.49 |
| 21 |
1S3-12577-00-00 |
HOSE 2 Price: $16.49 |
| 22 |
90450-32015-00 |
HOSE CLAMP ASSY Price: $19.49 |
| 23 |
95022-06050-00 |
BOLT, FLANGE Price: $1.80 |
| 24 |
95022-06110-00 |
BOLT, FLANGE Price: $4.70 |
