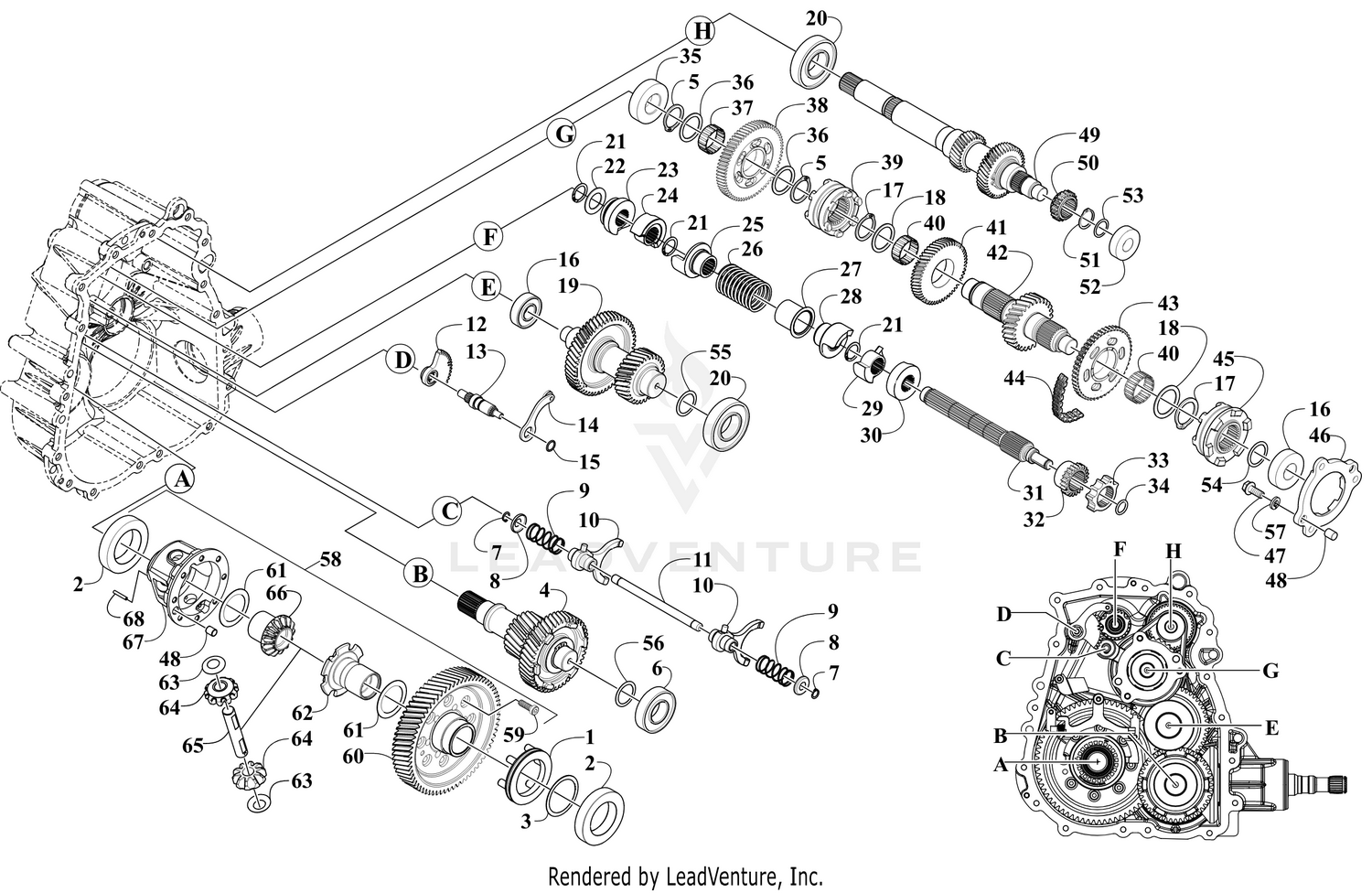

TRANSAXLE ASSEMBLY [304385]

Parts (67)

Ref	Part Number	Description
0	2502-792	Transaxle, Rear Price: $1,506.95
1	0817-247	Dog, Engagement Price: $61.95
2	0817-176	Bearing Price: $30.95
3	0817-270	Shim Price: $266.95
4	0817-395	Subassembly, Stage 3 Price: $151.95
5	0817-161	Ring, Retaining Price: $0.97
6	0817-177	Bearing Price: $12.91
7	0817-164	Ring, Retaining Price: $0.54
8	0817-158	Washer, Cup Price: $1.16
9	0817-181	Spring Price: $0.64
10	0817-205	Fork, Shift Price: $22.24
11	0817-194	Rail, Shift Shaft Price: $6.04
12	0817-188	Gear, Sector 47T Price: $6.43
13	0817-249	Shaft, Shift Price: $38.95
14	0817-209	Pawl - Detent - Roller Price: $1.83
15	0817-217	O-Ring Price: $0.54
16	0817-174	Bearing Price: $7.51
17	0817-165	Ring, Retaining Price: $0.97
18	0817-159	Washer Price: $1.90
19	0817-394	Subassembly, Shaft, Idler Price: $12.95
20	0817-178	Bearing Price: $17.23
21	0817-167	Ring, Retaining Price: $1.03
22	0817-206	Spacer Price: $1.39
23	0818-183	Cam, D Price: $20.29
24	0817-397	Cam, D-2 Price: $31.95
25	0818-182	Cam, C Price: $22.24
26	0817-184	Spring Price: $1.83
27	0817-207	Bushing, Spring Supporter Price: $1.39
28	0818-181	Cam, B Price: $20.59
29	0817-396	Cam, A-2 Price: $44.95
30	0818-180	Cam, A Price: $26.95
31	0817-186	Shaft, Shift Drum Price: $48.95
32	0817-187	Gear, 23T Price: $4.20
33	0817-189	Star, Detent Price: $3.88
34	0817-216	O-Ring Price: $0.64
35	0817-175	Bearing Price: $9.67
36	0817-169	Washer Price: $0.85
37	0817-179	Bearing Price: $8.20
38	0817-200	Gear, 66T Price: $57.95
39	0817-201	Engagement Dog Price: $38.95
40	0817-173	Bearing Price: $8.95
41	0817-198	Gear, 53T Price: $63.95
42	0817-241	Shaft, Reverse - 27T Price: Call Us
43	0817-278	Sprocket - 35T Price: $72.95
44	0817-282	Chain Price: $126.95
45	0817-197	Engagement Dog Price: $24.79
46	0817-220	Flange, Park Price: $16.84
47	0817-222	Screw Price: $2.04
48	0817-221	Pin, Dowl Price: $3.34
49	0817-168	Shaft, Input Price: $124.95
50	0817-273	Sprocket - 15T Price: $34.95
51	0817-162	Ring, Retaining Price: $1.13
52	0817-180	Bearing Price: $6.43
53	0817-267	Shim Price: $1.69
54	0817-107	Screw Price: $2.98
55	0817-108	Pin Price: $25.09
56	0817-269	Shim Price: $2.20
57	0817-266	Washer, Lock Price: $0.49
59	0817-258	Screw Price: $2.59
60	0817-192	Gear, Output - 68T Price: $286.95
61	0817-254	Washer Price: $1.09
62	0817-243	Gear, Output - 14T Price: Call Us
63	0817-256	Washer Price: $1.49
64	0817-251	Pinion, Differential  Price: $42.95
65	0817-250	Pin, Differential Price: $19.95
66	0817-244	Gear, Output - Differential - 14T Price: $72.95
67	0817-240	Carrier Price: $117.95
