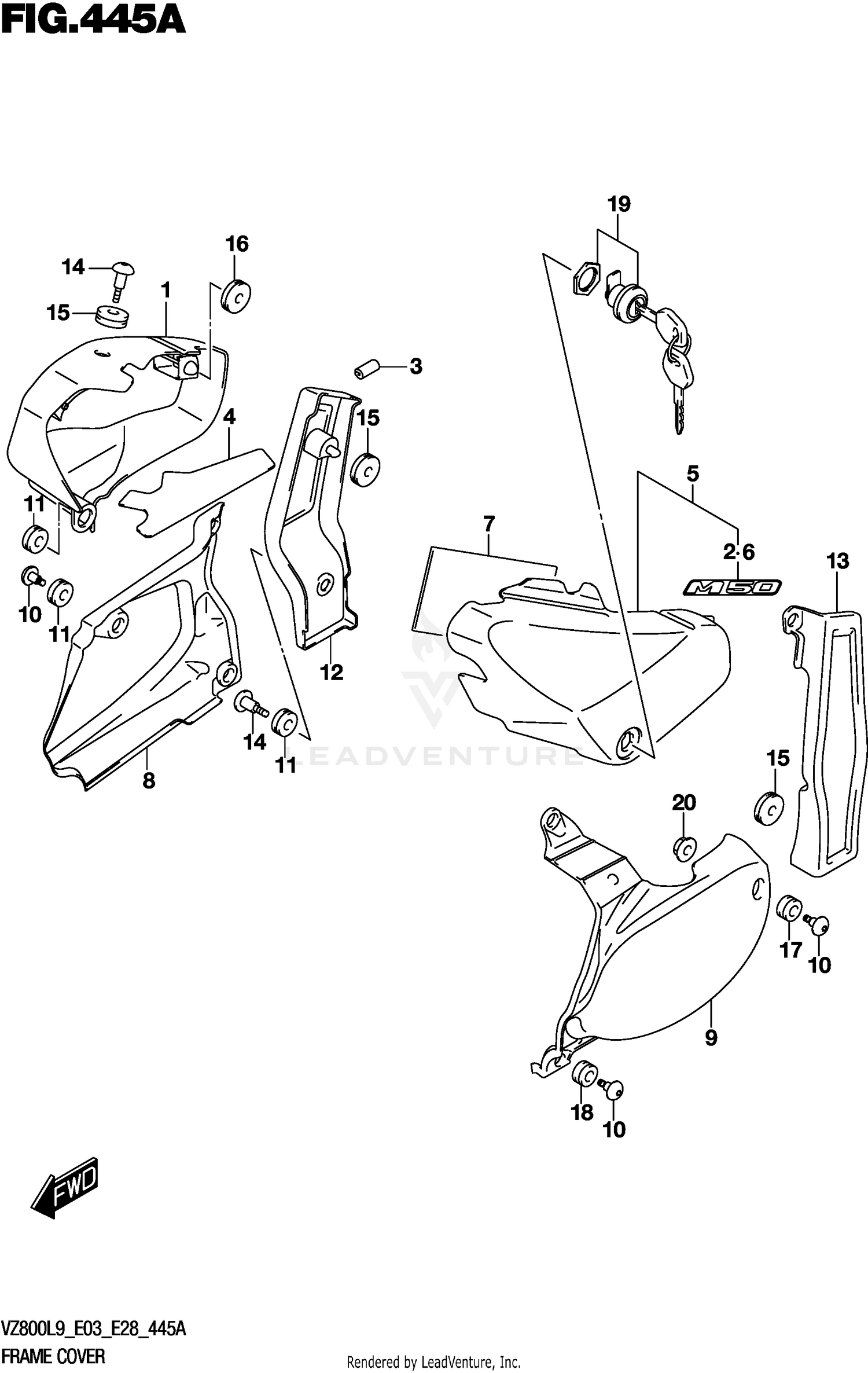

FRAME COVER (VZ800L9 E03)
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 47110-39GA0-PGZ | COVER, FRAME RH (GRAY) Price: $217.38 |
| 5 | 47210-39GA0-PGZ | COVER, FRAME LH (GRAY) Price: $217.38 |
| 8 | 47130-41F10 | COVER Price: $231.82 |
| 9 | 47231-41F10 | COVER Price: $312.38 |
| 10 | 47133-43H00 | SCREW,SIDE COVER LOWER,R Price: $7.65 |
| 11 | 09320-08510 | CUSHION (8.5X20X8) This part replaces 09320-08021. Price: $2.05 |
| 12 | 47141-41F01-019 | COVER,SIDE RR RH (BLACK) Price: $148.95 |
| 13 | 47241-41F00-019 | COVER,SIDE RR LH (BLACK) Price: $148.95 |
| 14 | 09139-06126 | SCREW (6X20) Price: $4.92 |
| 15 | 09320-08018 | CUSHION (8X26X7) Price: $3.70 |
| 16 | 09320-08028 | CUSHION (8X26X7) Price: $3.70 |
| 17 | 09320-09501 | CUSHION (9X18X10) Price: $2.48 |
| 18 | 09320-09062 | CUSHION This part replaces 09320-09045. Price: $2.18 |
| 19 | 95700-07861 | LOCK SET,COVER This part replaces 95700-07860. Price: $93.79 |
