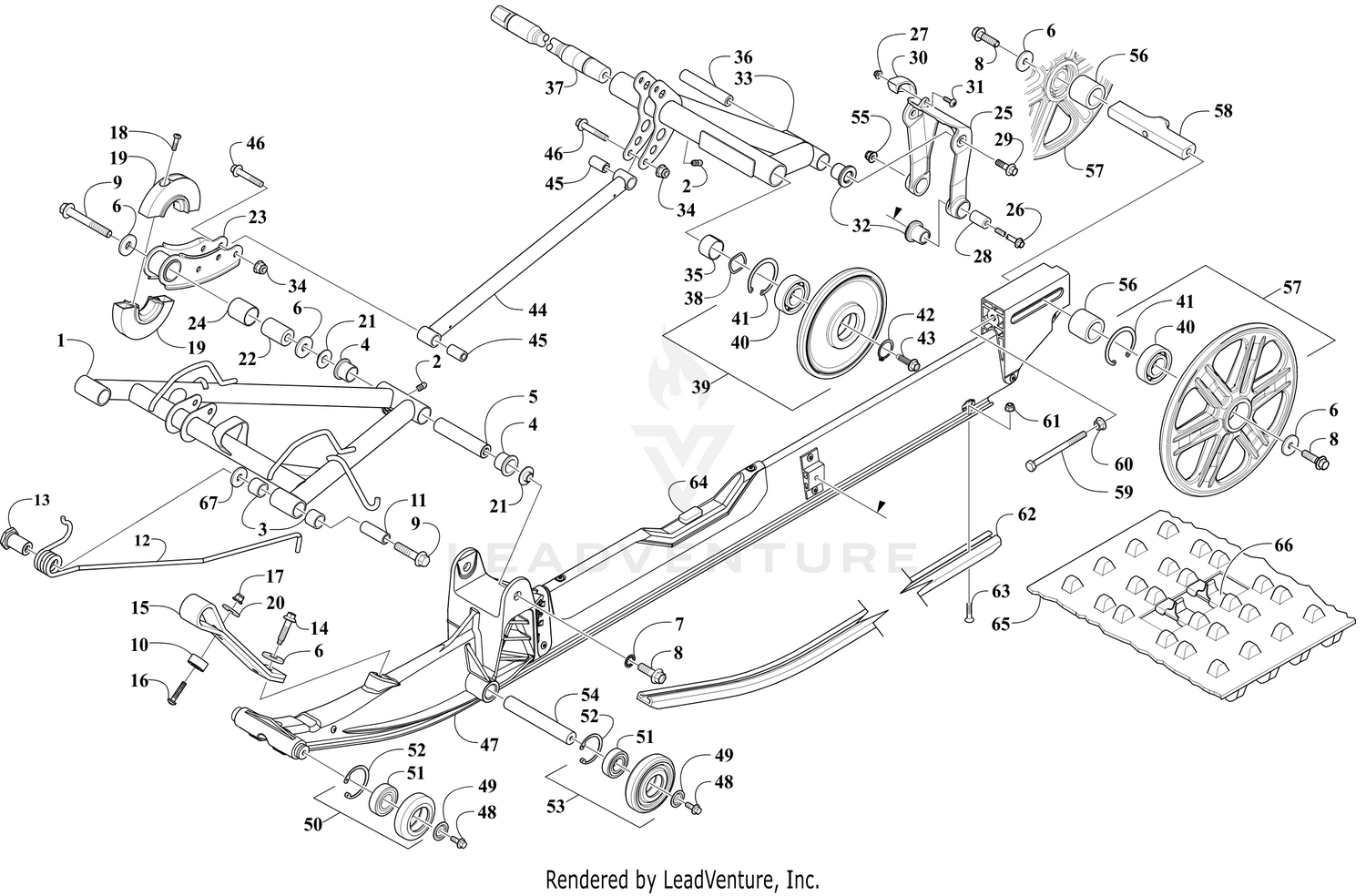

RAIL AND ARM ASSEMBLY [110927]

Parts (60)

Ref	Part Number	Description
2	1623-010	Fitting, Grease Price: $2.05
3	0604-889	Bushing Price: $3.88
4	3604-028	Bushing, Flared Price: $3.75
5	4604-308	Axle Price: $16.92
6	1623-931	Washer Price: $1.70
7	1623-992	Washer, Internal Tooth Lock Price: $0.35
8	8409-036	Screw, Cap Price: $2.05
9	8415-076	Screw, Cap Price: $3.02
10	2623-302	Bumper, Rubber Price: $2.53
11	3604-665	Axle Price: $20.56
12	3704-962	Scratcher, Ice - Right Price: $23.79
12	3704-963	Scratcher, Ice - Left Price: $23.19
13	4604-572	Bushing Price: $5.79
14	2623-282	Screw, Cap Price: $1.70
15	4604-589	Strap, Limiter Price: $25.95
16	8468-630	Screw, Machine Price: $0.71
17	8427-602	Nut, Hex Price: $0.23
18	1623-929	Screw, Self-Tapping Price: $1.45
19	4604-201	Wheel, Track Guide Price: $9.64
20	8450-109	Washer Price: $0.70
21	3604-266	Insert, Rail Price: $3.51
22	4604-306	Axle Price: $10.85
24	4604-418	Bushing Price: $8.43
25	3704-712	Arm, Rear - Black Price: $60.95
26	2623-297	Screw, Cap Price: $14.49
27	8427-502	Nut, Lock Price: $1.07
28	4604-372	Axle Price: $5.81
29	8409-826	Screw, Cap Price: $5.79
30	4604-384	Bumper, Track Guide Price: $3.75
31	8477-516	Screw, Machine Price: $0.71
32	0403-409	Bushing Price: $2.56
34	8437-804	Nut, Lock Price: $0.96
35	2604-852	Bearing Price: $12.07
36	4604-310	Axle Price: $12.67
37	4604-532	Axle, Inner Carriage Price: $48.95
38	1623-692	Washer, Wave Price: $2.66
40	0107-598	Bearing Price: $13.28
41	0123-798	Ring, Retaining Price: $1.80
42	1623-690	Ring, Retaining Price: $1.20
43	8409-041	Screw, Cap Price: $2.30
44	2704-790	Link, Rear Shock - Black Price: $48.95
45	3604-846	Sleeve Price: $2.66
46	8413-845	Screw, Cap Price: $1.45
47	3704-865	Rail, Formed - Black Price: $636.95
48	8413-617	Screw, Cap Price: $1.32
49	2623-025	Washer Price: $1.45
51	3604-033	Bearing Price: $13.95
52	0623-946	Ring, Retaining Price: $2.26
53	4604-292	Wheel, Idler Price: $24.20
54	4604-309	Axle Price: $13.28
55	8437-604	Nut, Lock Price: $1.08
56	4604-315	Sleeve Price: $4.35
58	4604-529	Shaft, Track Tension Price: $35.95
59	2623-337	Screw, Cap Price: $2.75
60	8424-802	NUT,HEX-FLG M8X1.25 CL8 Z&Y Price: $0.59
61	8047-366	Nut, Lock Price: $0.46
62	4604-314	Wearstrip, Slide Rail Price: $26.95
63	2623-338	Screw, Cap Price: $3.05
64	4604-575	Pad, Shock Price: $10.85
66	3602-373	Clip, Guide Price: $11.95
