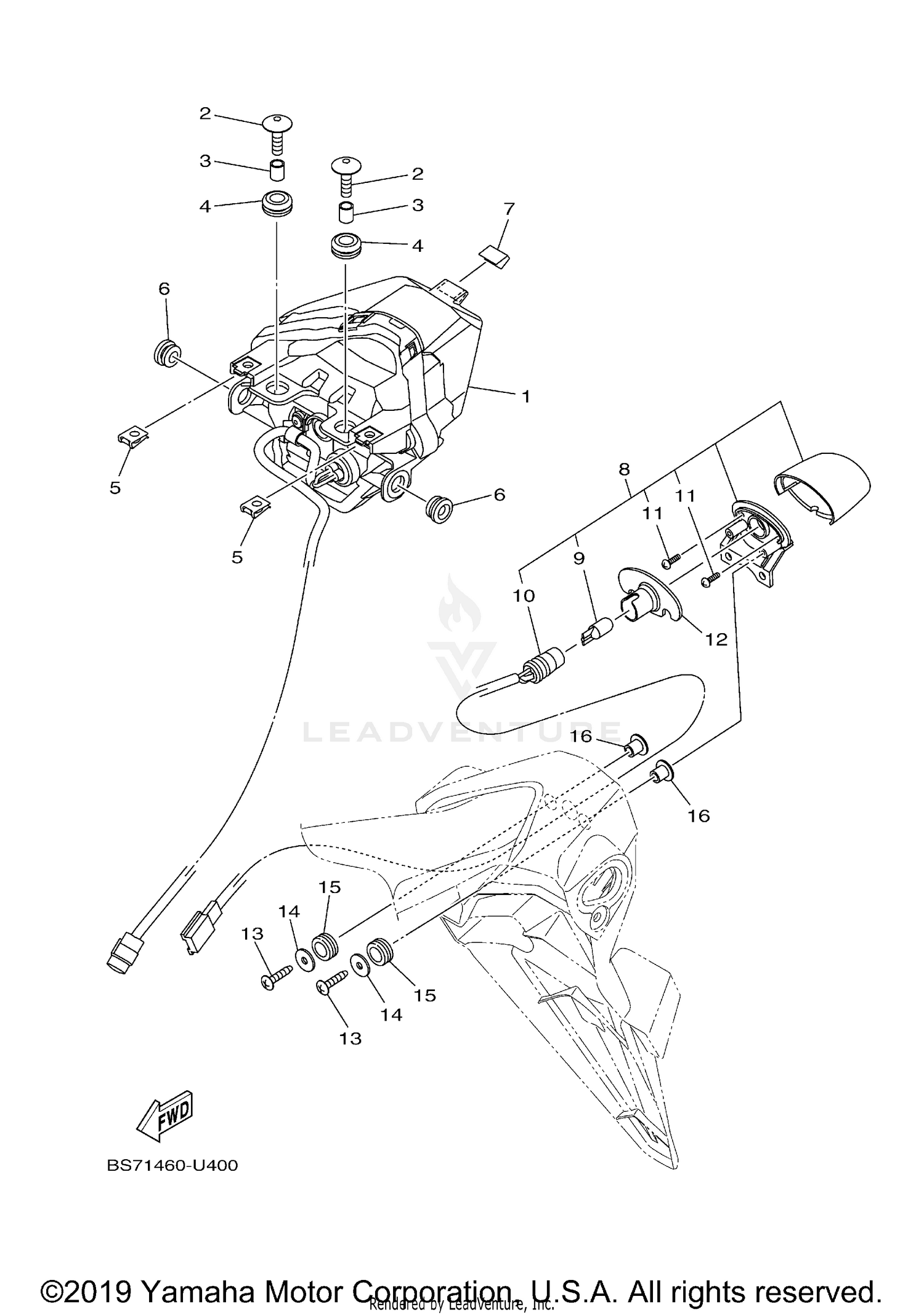

TAILLIGHT
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1WD-H4710-02-00 | TAILLIGHT UNIT ASS This part replaces 1WD-H4710-01-00. Price: $318.99 |
| 2 | 90111-06117-00 | BOLT, HEX. SOCKET BUTTON Price: $2.80 |
| 3 | 90387-067V1-00 | COLLAR Price: $3.20 |
| 4 | 90480-13001-00 | GROMMET Price: $1.30 |
| 5 | 90183-05042-00 | NUT, SPRING This part replaces 90183-05807-00. Price: $1.00 |
| 6 | 90480-10003-00 | GROMMET Price: $9.49 |
| 7 | 1WD-F1732-00-00 | SEAL 1 Price: $1.60 |
| 8 | BS7-H4740-00-00 | LICENCE LIGHT ASSY Price: $22.99 |
| 9 | 1WD-H4744-00-00 | BULB (12V-5W) Price: $13.49 |
| 10 | 1WD-H4547-00-00 | CORD, LICENSE LIGHT Price: $6.49 |
| 11 | 1WD-H4726-00-00 | SCREW Price: $0.50 |
| 12 | 1WD-H4753-00-00 | DAMPER Price: $1.30 |
| 13 | 97707-40020-00 | SCREW, TAPPING Price: $0.70 |
| 14 | 90201-047A2-00 | WASHER, PLATE This part replaces 90201-04804-00. Price: $4.00 |
| 15 | 90480-11009-00 | GROMMET Price: $1.20 |
