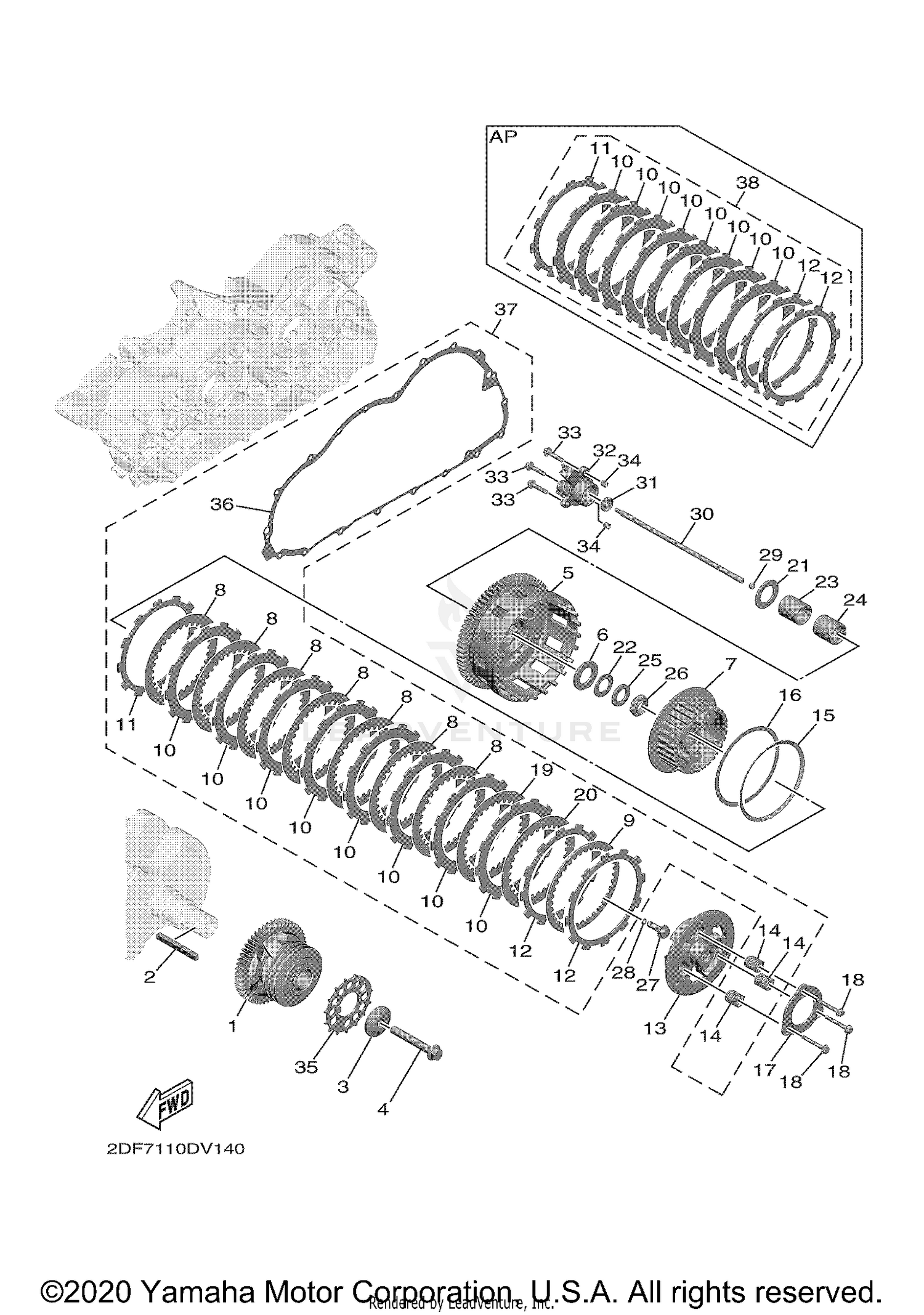

| Ref | Part Number | Description |
|---|
| 1 |
2DF-16200-00-00 |
CAM DAMPER ASSY Price: $511.99 |
| 2 |
2DF-16193-00-00 |
KEY, FEATHER Price: $15.49 |
| 3 |
2DF-16192-00-00 |
WASHER Price: $30.99 |
| 4 |
90105-12118-00 |
BOLT, FLANGE Price: $6.49 |
| 5 |
2DF-16150-00-00 |
PRIMARY DRIVEN GEAR COMP. Price: $405.99 |
| 6 |
1D7-16154-00-00 |
PLATE, THRUST 1 Price: $39.99 |
| 7 |
2DF-16371-00-00 |
BOSS, CLUTCH Price: $123.99 |
| 10 |
1D7-16321-00-00 |
PLATE, FRICTION Price: $28.99 |
| 11 |
4XV-16331-00-00 |
PLATE, FRICTION 2 Price: $26.99 |
| 12 |
27D-16331-00-00 |
PLATE, FRICTION 2 Price: $21.99 |
| 13 |
2DF-16350-00-00 |
PRESSURE PLATE ASSY Price: $104.99 |
| 14 |
2DF-16173-00-00 |
SPRING, COMPRESSION Price: $21.99 |
| 15 |
36Y-16383-00-00 |
SPRING, CLUTCH BOSS Price: $74.99 |
| 16 |
36Y-16384-00-00 |
PLATE, SEAT Price: $31.99 |
| 17 |
1D7-16352-00-00 |
PLATE, PRESSURE 2 Price: $18.99 |
| 18 |
1D7-16337-00-00 |
SCREW, SPRING Price: $2.65 |
| 21 |
2DF-16164-00-00 |
PLATE, THRUST 2 Price: $5.49 |
| 22 |
90201-22013-00 |
WASHER, PLATE Price: $9.49 |
| 23 |
93310-33597-00 |
BEARING Price: $26.99 |
| 24 |
2DF-16181-00-00 |
SPACER 1 Price: $31.99 |
| 25 |
90208-22003-00 |
WASHER, CONICAL SPRING Price: $13.49 |
| 26 |
90179-22010-00 |
NUT Price: $22.99 |
| 27 |
4KG-16356-00-00 |
ROD, PUSH 1 Price: $33.99 |
| 28 |
93210-06632-00 |
O-RING Price: $9.49 |
| 29 |
93511-32027-00 |
BALL This part replaces 93511-32017-00. Price: $9.49 |
| 30 |
2DF-16357-00-00 |
ROD, PUSH 2 Price: $42.99 |
| 31 |
93109-08061-00 |
OIL SEAL Price: $8.49 |
| 32 |
2DF-16381-00-00 |
PUSH LEVER COMP. Price: $77.99 |
| 33 |
90110-06346-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 34 |
99530-08012-00 |
PIN, DOWEL Price: $6.60 |
| 35 |
2DF-81673-00-00 |
ROTOR Price: $37.99 |
| 36 |
2DF-15451-00-00 |
GASKET, CRANKCASE COVER 1 Price: $21.99 |
