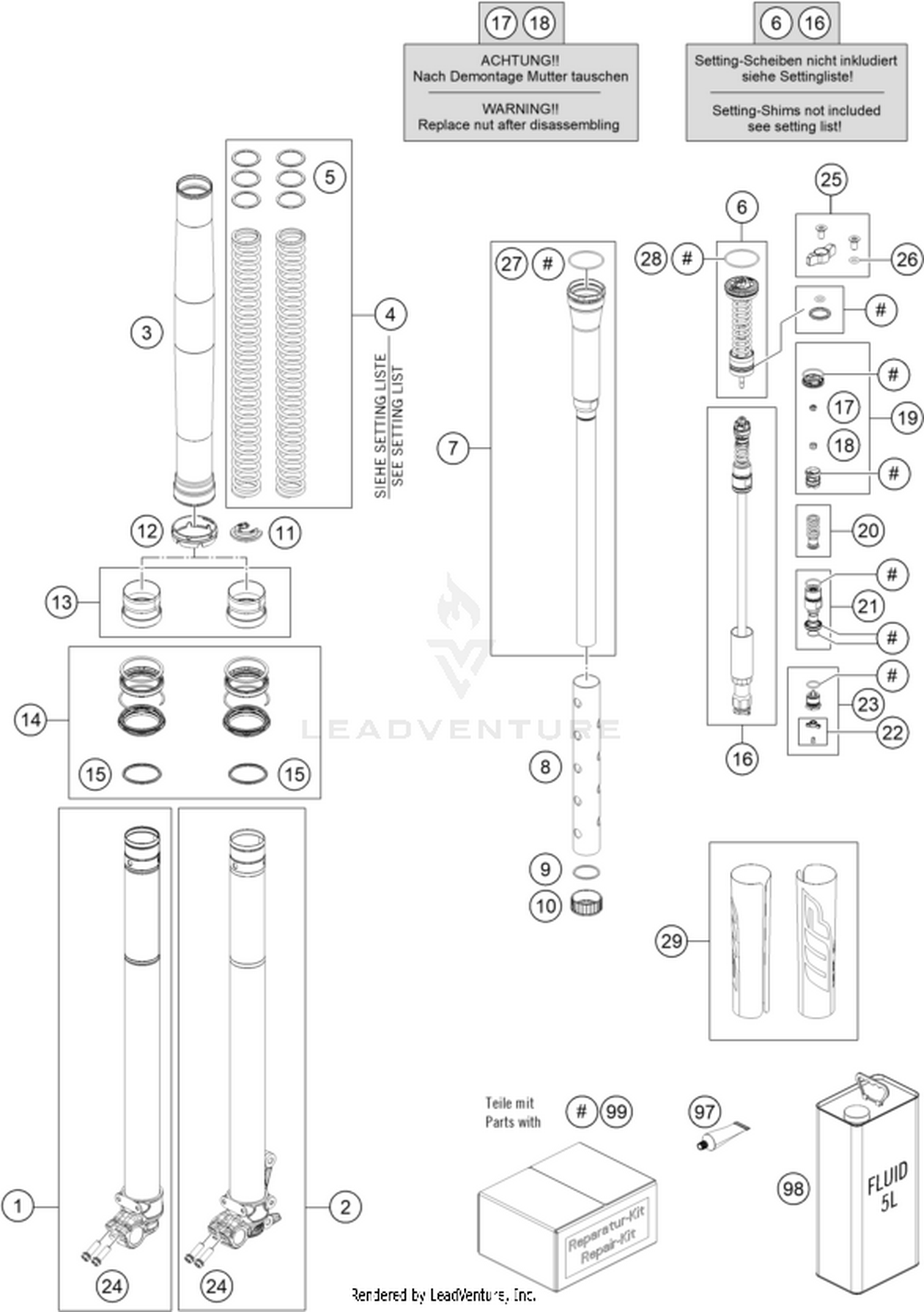

| Ref | Part Number | Description |
|---|
| 1 |
48602046S2 |
Axle clamp ri. with inner tube Price: Call Us |
| 2 |
48602045S2 |
Axle clamp le. with inner tube Price: Call Us |
| 5 |
48600456 |
Washer 35x43x2,5 plastic Price: Call Us |
| 5 |
48600457 |
Preload bush 35x43x3,5 Price: Call Us |
| 5 |
48600458 |
Washer 35x43x1,5 plastic Price: Call Us |
| 6 |
S043400000S0200 |
Compression cmpl. Price: Call Us |
| 7 |
S418900003S0100 |
Pressure tank M38x0.5 cmpl. Price: Call Us |
| 8 |
S53360000000000 |
Tube 35x38x277 Price: Call Us |
| 9 |
48600752 |
Washer 33,5x38x1,5 Price: Call Us |
| 10 |
S82890000200000 |
Spring seat 33.5x44.5x18.5 Price: Call Us |
| 11 |
S82890000100000 |
Spring seat D44 clip Price: Call Us |
| 12 |
S639200001000FA |
Fork protection ring 59,8mm Price: Call Us |
| 13 |
R14047T |
Guide bushing set fork 48mm Price: Call Us |
| 14 |
RP10048T |
Seal kit 48mm SKF black This part replaces RP10012T. Price: Call Us |
| 15 |
48602007 |
Stroke indicator 48mm red Price: Call Us |
| 16 |
S501200022S0000 |
Piston rod 12.0x397.5 cmpl. Price: Call Us |
| 17 |
48602128 |
Nut M6 h5,4 SW10 Price: Call Us |
| 18 |
40540486 |
Nut M6x0,5 h6,5 WAF10 rebound Price: Call Us |
| 19 |
RP10054T |
Repair kit piston CC spring fo Price: Call Us |
| 20 |
48600578S |
Spring (13,9) 37-32 rebound cp Price: Call Us |
| 21 |
S408800002S0000 |
Screw cap M24.5x1 cmpl. Price: Call Us |
| 22 |
RP10033T |
Repair kit adjuster rebound re Price: Call Us |
| 24 |
0025080256 |
HH collar screw M8x25 Price: Call Us |
| 26 |
50180222 |
O-ring 4x1,5 NBR70 Price: Call Us |
| 27 |
48600048 |
O-ring 46x2 NBR70 siliconized Price: Call Us |
| 28 |
40140024 |
O-ring 43x2 NBR70 siliconized Price: Call Us |
| 29 |
52000318SET |
Sticker set, XACT CC 238x182.5 Price: Call Us |
| 97 |
T14034 |
Fuchs grease IPR (250g) Price: Call Us |
| 98 |
48601166S1 |
Fork Fluid Viscosity 4.0 5L Price: Call Us |
