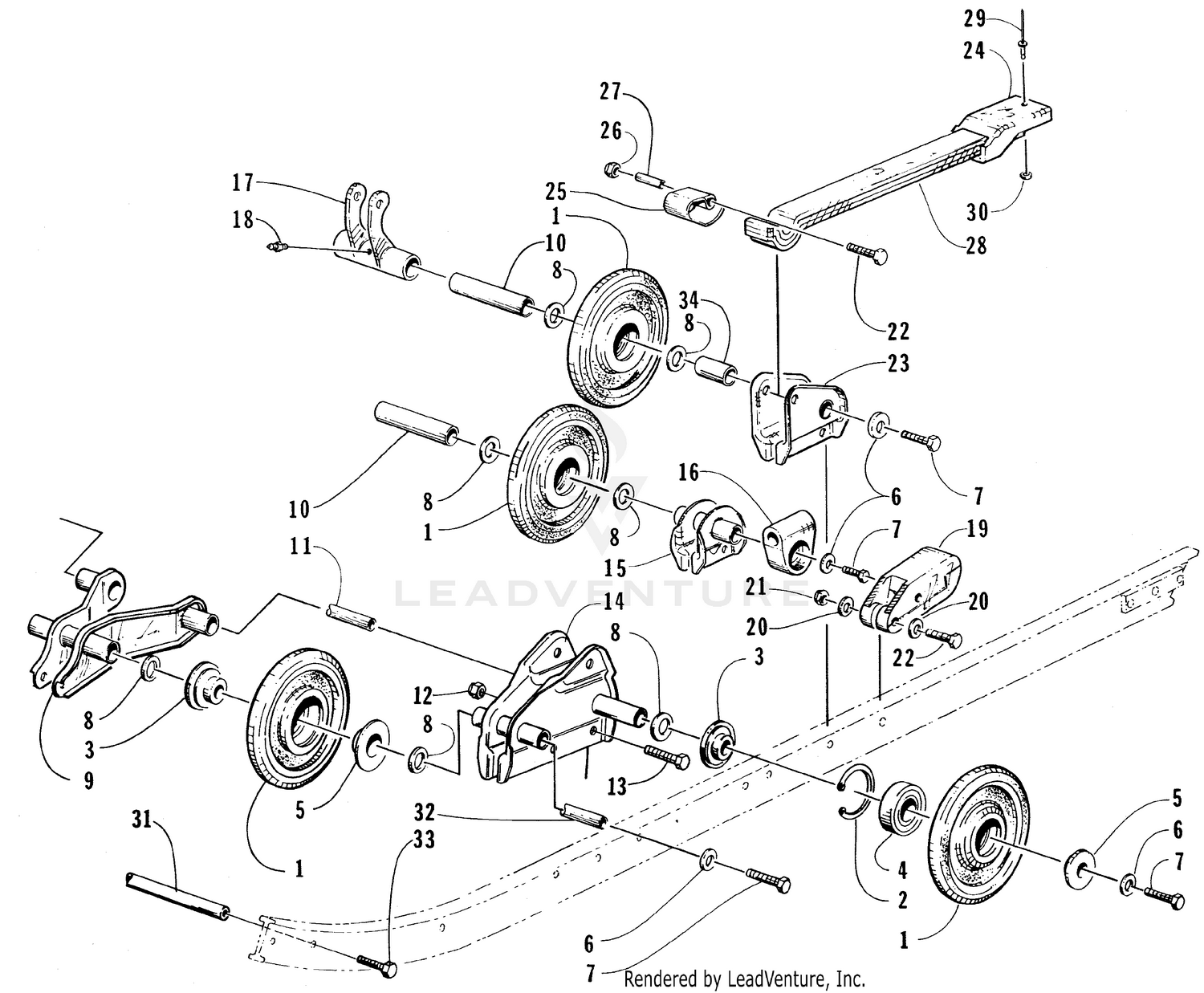

REAR SUSPENSION AXLE ASSEMBLY [63549]

Parts (35)

Ref	Part Number	Description
1	0114-240	Wheel, Idler Price: $53.95
2	0123-798	Ring, Retaining Price: $1.80
3	1604-772	Insert, 5/8 Bore X 2 OD (Short) Price: $2.89
4	0107-598	Bearing Price: $13.28
5	1604-773	Insert, 5/8 Bore X 1.580 OD Price: $5.81
6	0123-260	Washer Price: $1.66
7	8012-132	Screw, Cap Price: $0.49
8	0123-439	Washer Price: $4.04
9	1704-682	BRKT,FRONT SHOCK-PTD BLK Price: $167.95
10	0604-942	Spacer, Idler Wheel Price: $2.09
11	0604-979	Axle, Idler Wheel Price: $36.95
12	8040-426	Nut, Hex Lock - NYL 5/16-18 Z&Y Price: $1.79
13	8002-131	Screw, Cap Price: $1.20
14	1704-212	BRACKET,MTG-FRT ARM-RH-PTD BLK Price: $86.95
14	1704-213	BRACKET,MTG-FRT ARM-LH-PTD BLK Price: $65.95
15	0704-279	Bracket, Idler Wheel Price: $13.95
16	2604-515	Slide, Spring Price: $7.23
17	0704-589	PIVOT,REAR SHOCK-PTD BLK Price: $33.95
18	9916-963	Fitting, Grease Price: $4.35
19	0604-612	Block, Spring Tension Price: $6.95
20	8050-277	Washer, Flat Price: $0.35
21	8040-486	Nut, Lock Price: $1.20
22	8002-227	Screw, Cap Price: $0.89
23	0704-280	Bracket, Mounting - Idler Wheel - Right Price: $56.06
23	0704-281	Bracket, Mounting - Idler Wheel - Left Price: $56.06
24	0604-859	Block, Wear Price: $31.95
25	0604-860	Clip, Retaining Price: $3.09
26	8041-486	Nut, Hex - Thin Lock Price: $0.46
27	0604-739	Bushing, Overload Spring Price: $11.99
28	1604-450	SPRING,TRIPLE OVERLOAD ASSY Price: $281.95
29	8060-510	Rivet Price: $0.84
30	0123-149	Washer, Flat Price: $2.26
31	0604-938	Support, Rail Price: $7.95
32	1604-724	AXLE,XBRC-.625X16.375 (5/16-18) Price: $59.95
33	8012-132	Screw, Cap Price: $0.49
