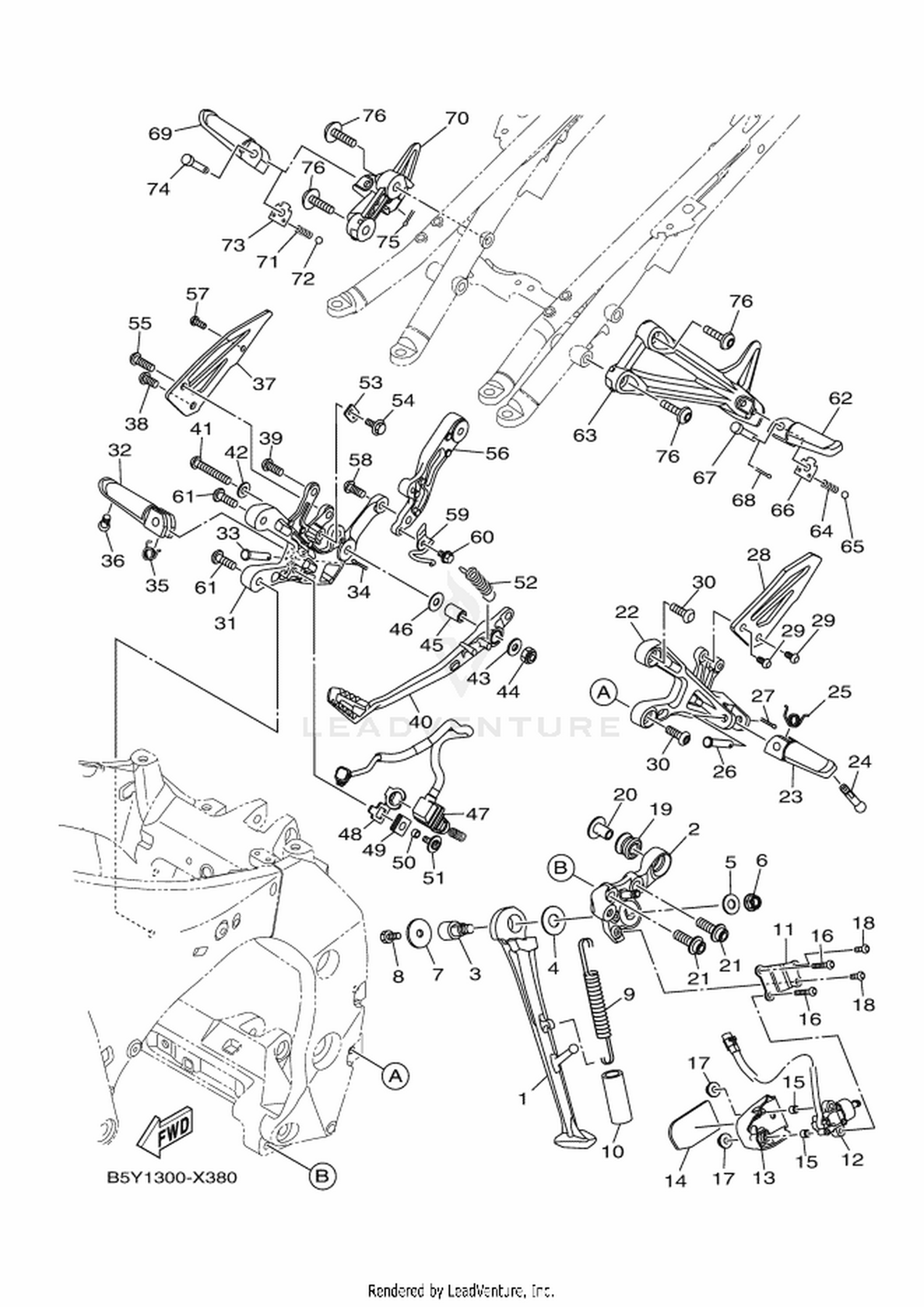

| Ref | Part Number | Description |
|---|
| 1 |
B67-27311-00 |
STAND, SIDE Price: Call Us |
| 2 |
B5Y-27321-00 |
BRACKET, SIDE STAND Price: Call Us |
| 3 |
B3L-27351-00 |
GUIDE, SIDE STAND Price: Call Us |
| 4 |
90201-146F9 |
WASHER, PLATE Price: Call Us |
| 5 |
90201-10035 |
WASHER, PLATE Price: Call Us |
| 6 |
95602-10200 |
NUT, U FLANGE Price: Call Us |
| 7 |
90201-08050 |
WASHER, PLATE Price: Call Us |
| 8 |
90101-08065 |
BOLT Price: Call Us |
| 9 |
90506-20032 |
SPRING, TENSION Price: Call Us |
| 10 |
90445-197J2 |
HOSE (L60) Price: Call Us |
| 12 |
BN6-82566-00 |
SWITCH, SIDE STAND Price: Call Us |
| 15 |
90387-05025 |
COLLAR Price: Call Us |
| 16 |
92012-05030 |
BOLT, BUTTON HEAD Price: Call Us |
| 17 |
95602-05200 |
NUT, SELF-LOCKING Price: Call Us |
| 18 |
90110-05038 |
BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 19 |
5VY-14747-00 |
DAMPER, MUFFLER Price: Call Us |
| 20 |
90387-08021 |
COLLAR Price: Call Us |
| 21 |
90109-10002 |
BOLT Price: Call Us |
| 22 |
B67-27442-10 |
BRACKET 2 Price: Call Us |
| 23 |
3XV-27451-02 |
FOOTREST Price: Call Us |
| 24 |
90109-08231 |
BOLT Price: Call Us |
| 25 |
90508-18134 |
SPRING, TORSION Price: Call Us |
| 26 |
91701-08040 |
PIN Price: Call Us |
| 27 |
91402-25015 |
PIN, COTTER Price: Call Us |
| 28 |
B67-27445-10 |
PLATE 1 Price: Call Us |
| 29 |
90111-06065 |
BOLT,HEX. SOCKET BUTTON Price: Call Us |
| 30 |
90111-08085 |
BOLT,HEX. SOCKET BUTTON Price: Call Us |
| 31 |
B67-27443-10 |
BRACKET 3 Price: Call Us |
| 32 |
3XV-27461-02 |
FOOTREST Price: Call Us |
| 33 |
91701-08040 |
PIN Price: Call Us |
| 34 |
91402-25015 |
PIN, COTTER Price: Call Us |
| 35 |
90508-18135 |
SPRING, TORSION Price: Call Us |
| 36 |
90109-08231 |
BOLT Price: Call Us |
| 37 |
B67-27446-10 |
PLATE 2 Price: Call Us |
| 38 |
92012-08016 |
BOLT, BUTTON HEAD Price: Call Us |
| 39 |
92012-08020 |
BOLT, BUTTON HEAD Price: Call Us |
| 40 |
B67-27211-00 |
PEDAL, BRAKE Price: Call Us |
| 41 |
92012-08050 |
BOLT, BUTTON HEAD Price: Call Us |
| 42 |
92902-08200 |
WASHER Price: Call Us |
| 44 |
90185-08089 |
NUT, SELF-LOCKING Price: Call Us |
| 45 |
90387-08102 |
COLLAR Price: Call Us |
| 46 |
90201-08103 |
WASHER, PLATE Price: Call Us |
| 47 |
B5Y-82530-00 |
STOP SWITCH ASSY Price: Call Us |
| 48 |
B5Y-2144G-00 |
STAY, STOP SWITCH Price: Call Us |
| 49 |
90480-12607 |
GROMMET Price: Call Us |
| 50 |
90387-06M16 |
COLLAR Price: Call Us |
| 51 |
90159-06150 |
SCREW, WITH WASHER Price: Call Us |
| 52 |
90506-23027 |
SPRING, TENSION Price: Call Us |
| 53 |
B67-27432-00 |
BRACKET 1 Price: Call Us |
| 54 |
95D32-06010 |
BOLT, FLANGE DEEP RECESS Price: Call Us |
| 55 |
92012-08025 |
BOLT, BUTTON HEAD Price: Call Us |
| 56 |
B5Y-21487-00 |
STAY, MUFFLER 3 Price: Call Us |
| 57 |
92012-06014 |
BOLT, BUTTON HEAD Price: Call Us |
| 58 |
92012-08020 |
BOLT, BUTTON HEAD Price: Call Us |
| 59 |
B5Y-2148X-00 |
BRACKET 4 Price: Call Us |
| 60 |
95D32-06010 |
BOLT, FLANGE DEEP RECESS Price: Call Us |
| 61 |
90111-08085 |
BOLT,HEX. SOCKET BUTTON Price: Call Us |
| 62 |
3XV-27431-01 |
FOOTREST, REAR 1 Price: Call Us |
| 63 |
1RC-2741L-01 |
BRACKET 4 Price: Call Us |
| 64 |
90501-12743 |
SPRING, COMPRESSION Price: Call Us |
| 65 |
93501-04011 |
BALL Price: Call Us |
| 66 |
5VX-27437-00 |
WASHER, SPECIAL Price: Call Us |
| 68 |
91401-25015 |
PIN, COTTER Price: Call Us |
| 69 |
3XV-27441-11 |
FOOTREST, REAR 2 Price: Call Us |
| 70 |
B67-2742L-00 |
BRACKET 5 Price: Call Us |
| 71 |
90501-12743 |
SPRING, COMPRESSION Price: Call Us |
| 72 |
93501-04011 |
BALL Price: Call Us |
| 73 |
5VX-27437-00 |
WASHER, SPECIAL Price: Call Us |
| 75 |
91401-25015 |
PIN, COTTER Price: Call Us |
