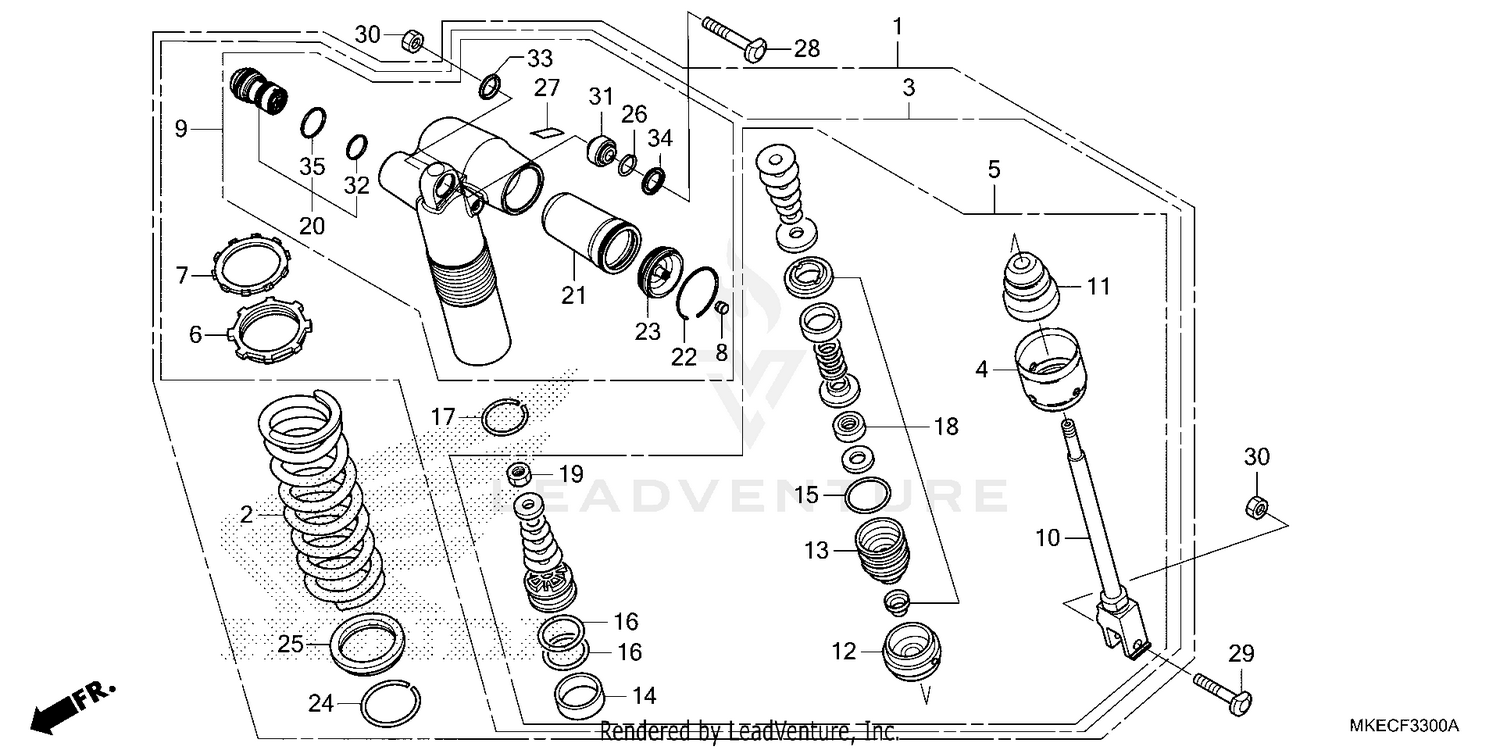

| Ref | Part Number | Description |
|---|
| 1 |
52400-MKE-AH3 |
CUSHION ASSY., RR. Price: $1,408.44 |
| 2 |
52401-MKE-AF1 |
SPRING, RR. SHOCK ABSORBER (54N/MM) Price: $266.24 |
| 3 |
52410-MKE-AH3 |
DAMPER, RR. Price: $1,107.25 |
| 4 |
52419-MKE-AH1 |
STOPPER, SPRING SEAT Price: $27.51 |
| 5 |
52421-MKE-AH2 |
ROD, PISTON Price: $585.98 |
| 6 |
52422-KRN-A41 |
ADJUSTER, SPRING Price: $34.24 |
| 7 |
52423-KRN-A41 |
NUT, ADJUSTER Price: $16.60 |
| 8 |
52425-381-771 |
CAP, AIR VALVE Price: $6.35 |
| 9 |
52425-MKE-AH2 |
CASE, DAMPER Price: $650.45 |
| 10 |
52426-MKE-AH1 |
ROD Price: $486.93 |
| 10 |
52426-MKE-AH2 |
ROD Price: $503.42 |
| 11 |
52427-MKE-AH1 |
RUBBER, STOPPER Price: $21.64 |
| 12 |
52428-MKE-AH1 |
PLATE, END Price: $27.58 |
| 13 |
52429-MKE-AH1 |
CASE, ROD GUIDE Price: $51.11 |
| 14 |
52431-KZ3-J31 |
RING, PISTON Price: $17.98 |
| 15 |
52434-KZ3-J21 |
O-RING (3.5X43.7) Price: $4.25 |
| 16 |
52434-KZ3-J31 |
O-RING (42.5X2.0) Price: $4.33 |
| 17 |
52435-KZ3-J21 |
RING, STOPPER Price: $2.71 |
| 18 |
52436-MKE-AH1 |
OIL SEAL SET Price: $28.24 |
| 19 |
52438-MKE-AH1 |
NUT, HEX. Price: $3.93 |
| 20 |
52440-MKE-AF1 |
ADJUSTER, COMPRESSION DAMPING FORCE Price: $214.67 |
| 21 |
52451-MKE-AF1 |
BLADDER Price: $20.09 |
| 22 |
52452-KS7-831 |
RING, STOPPER (SHOWA) Price: $3.31 |
| 23 |
52453-KRN-711 |
CAP, CHAMBER Price: $31.58 |
| 24 |
52455-KZ3-J21 |
RING, STOPPER Price: $6.64 |
| 25 |
52486-KZ3-J21 |
SEAT, SPRING Price: $32.73 |
| 26 |
52487-KA4-831 |
RING, STOPPER (SHOWA) Price: $4.93 |
| 27 |
87516-KZ1-600 |
LABEL, RR. DAMPER WARNING Price: $7.70 |
| 28 |
90152-MEB-750 |
BOLT, CUSHION (UPPER) (10X53) Price: $3.55 |
| 29 |
90153-KZ4-710 |
BOLT, CUSHION (LOWER) (10X43.5) Price: $11.36 |
| 30 |
90306-KZ4-711 |
NUT, U (10MM) Price: $4.71 |
| 31 |
91074-MAC-741 |
BEARING, SPHERICAL (10) Price: $42.44 |
| 32 |
91257-KZ3-891 |
O-RING (26.2X1.9) Price: $3.85 |
| 33 |
91351-KZ3-731 |
DUST SEAL, RR. CUSHION PIVOT Price: $6.13 |
| 34 |
91351-MAC-671 |
DUST SEAL, SHOCK (16X26X3) Price: $7.27 |
