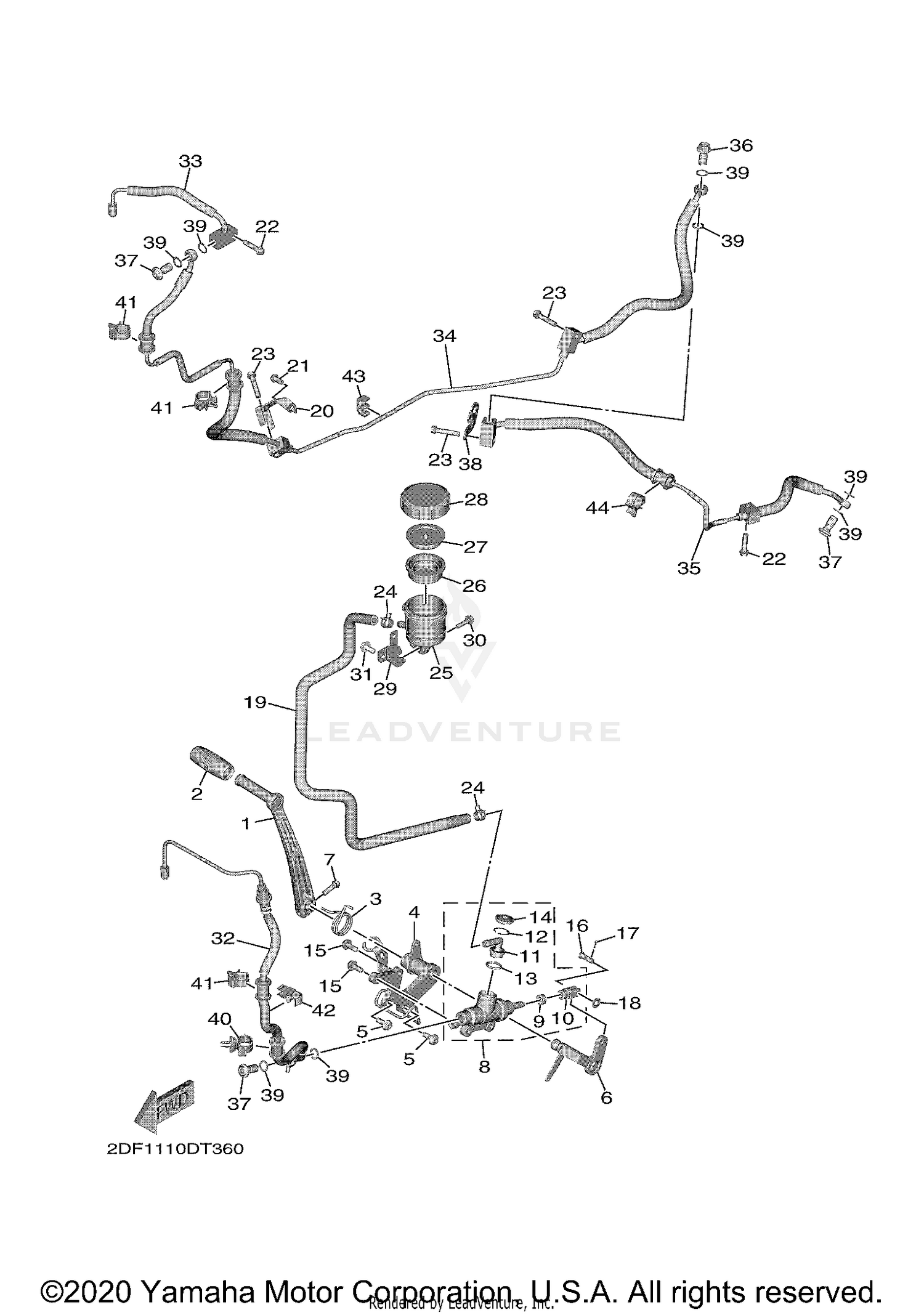

| Ref | Part Number | Description |
|---|
| 1 |
2DF-27211-00-00 |
PEDAL, BRAKE Price: $82.99 |
| 2 |
5VN-18113-00-00 |
COVER, SHIFT PEDAL Price: $16.49 |
| 3 |
1TP-27216-00-00 |
SPRING, RETURN Price: $9.49 |
| 4 |
2DF-25867-00-00 |
BRACKET, MASTER CYLINDER Price: $70.99 |
| 5 |
90111-06059-00 |
BOLT, HEX. SOCKET BUTTON Price: $5.49 |
| 6 |
2DF-27262-00-00 |
LEVER Price: $42.99 |
| 7 |
95022-06020-00 |
BOLT, FLANGE This part replaces 90105-06201-00. Price: $3.90 |
| 8 |
2DF-2583V-00-00 |
REAR MASTER CYLINDER ASSY. Price: $150.99 |
| 9 |
95317-08700-00 |
NUT This part replaces 95307-08700-00. Price: $10.49 |
| 10 |
4XV-27222-01-00 |
JOINT Price: $47.99 |
| 11 |
4ML-2582A-50-00 |
JOINT Price: $15.49 |
| 12 |
2VN-25866-00-00 |
CIRCLIP Price: $7.49 |
| 13 |
93210-15566-00 |
O-RING This part replaces 93210-15620-00. Price: $8.49 |
| 14 |
3FV-2589A-00-00 |
COVER, DUST Price: $22.99 |
| 15 |
90111-06059-00 |
BOLT, HEX. SOCKET BUTTON Price: $5.49 |
| 16 |
91701-06018-00 |
PIN This part replaces 91702-06018-00. Price: $5.49 |
| 17 |
91490-16020-00 |
PIN, COTTER This part replaces 91402-16012-00. Price: $6.70 |
| 18 |
92990-06200-00 |
WASHER, PLAIN This part replaces 92902-06200-00. Price: $1.00 |
| 19 |
2DF-25895-00-00 |
HOSE, RESERVOIR Price: $33.99 |
| 20 |
2DF-2587A-00-00 |
HOLDER, BRAKE HOSE Price: $15.49 |
| 21 |
92017-06012-00 |
BOLT, BUTTON HEAD Price: $2.65 |
| 22 |
95022-06025-00 |
BOLT, FLANGE Price: $1.90 |
| 23 |
95027-06030-00 |
BOLT, FLANGE Price: $4.30 |
| 24 |
90467-11044-00 |
CLIP This part replaces 90467-12191-00. Price: $9.49 |
| 25 |
2CR-25894-00-00 |
TANK, RESERVOIR Price: $19.99 |
| 26 |
3FV-25854-00-00 |
DIAPHRAGM, RESERVOIR Price: $30.99 |
| 27 |
2CR-25855-00-00 |
BUSH, DIAPHRAGM Price: $7.49 |
| 28 |
3GM-25852-50-00 |
CAP, RESERVOIR Price: $32.99 |
| 29 |
2DF-25896-00-00 |
PLATE, RESERVOIR Price: $7.49 |
| 30 |
90105-05006-00 |
BOLT, FLANGE Price: $0.60 |
| 31 |
90110-06245-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 32 |
2DF-2581J-00-00 |
HOSE, BRAKE 4 Price: $65.99 |
| 33 |
2DF-2581K-00-00 |
HOSE, BRAKE 5 Price: $52.99 |
| 34 |
2DF-2582J-00-00 |
HOSE, BRAKE 6 Price: $143.99 |
| 35 |
2DF-2582K-01-00 |
HOSE, BRAKE 7 This part replaces 2DF-2582K-00-00. Price: $103.99 |
| 36 |
90401-10020-00 |
BOLT, UNION Price: $10.49 |
| 37 |
90401-10172-00 |
BOLT, UNION Price: $6.49 |
| 38 |
2DF-27332-00-00 |
BRACKET Price: $9.49 |
| 39 |
90430-10005-00 |
GASKET Price: $9.49 |
| 40 |
90464-16012-00 |
CLAMP Price: $8.49 |
| 41 |
90464-16006-00 |
CLAMP Price: $10.49 |
| 42 |
90464-12008-00 |
CLAMP Price: $3.00 |
| 43 |
90464-07006-00 |
CLAMP Price: $6.49 |
