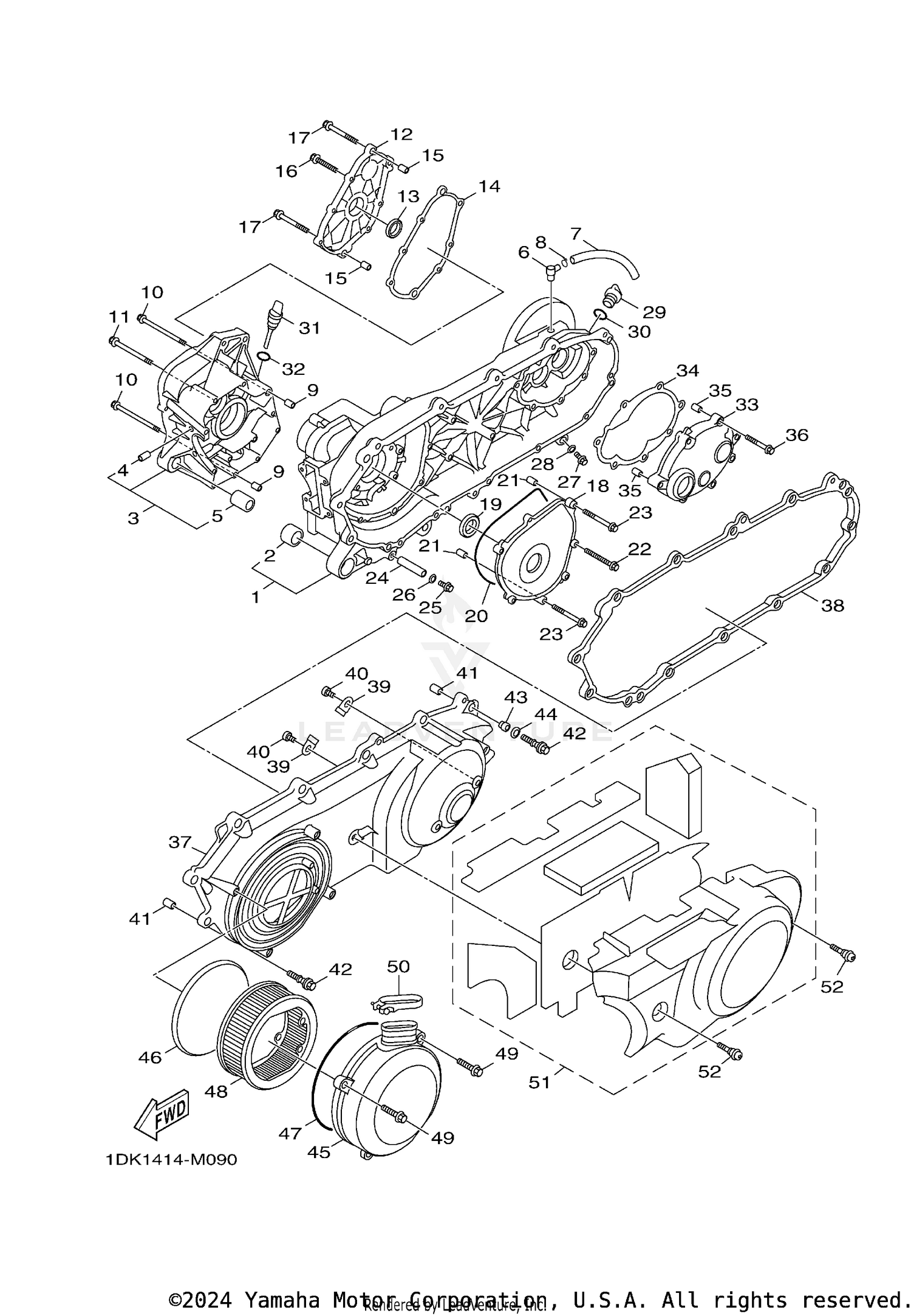

| Ref | Part Number | Description |
|---|
| 1 |
1DK-WE511-01-00 |
CRANKCASE 1 Price: $218.99 |
| 2 |
52S-F2124-00-00 |
BUSH 2 Price: $12.49 |
| 3 |
1DK-WE512-00-00 |
CRANKCASE 2 Price: $148.99 |
| 4 |
52S-E5138-00-00 |
NOZZLE 1 Price: $1.20 |
| 5 |
52S-F2123-00-00 |
BUSH 1 Price: $13.99 |
| 6 |
5ST-E5371-00-00 |
BREATHER Price: $1.00 |
| 7 |
90445-11804-00 |
HOSE Price: $1.99 |
| 8 |
90467-10803-00 |
CLIP Price: $0.99 |
| 9 |
91810-14807-00 |
PIN, DOWEL Price: $1.75 |
| 10 |
95022-06060-00 |
BOLT, FLANGE Price: $9.49 |
| 11 |
95022-06120-00 |
BOLT, FLANGE Price: $1.95 |
| 12 |
52S-E5417-00-00 |
COVER, CAP Price: $27.99 |
| 13 |
93102-22823-00 |
OIL SEAL Price: $4.15 |
| 14 |
52S-E5453-00-00 |
GASKET Price: $8.49 |
| 15 |
91810-14807-00 |
PIN, DOWEL Price: $1.75 |
| 16 |
95022-06025-00 |
BOLT, FLANGE Price: $1.90 |
| 17 |
95022-06035-00 |
BOLT, FLANGE Price: $3.85 |
| 18 |
52S-E5423-00-00 |
COVER 2 Price: $28.99 |
| 19 |
93102-25817-00 |
OIL SEAL Price: $5.49 |
| 20 |
93211-55801-00 |
O-RING Price: $3.70 |
| 21 |
91810-14807-00 |
PIN, DOWEL Price: $1.75 |
| 22 |
95022-06025-00 |
BOLT, FLANGE Price: $1.90 |
| 23 |
95022-06035-00 |
BOLT, FLANGE Price: $3.85 |
| 24 |
5ST-E3416-00-00 |
PIPE, OIL 1 Price: $1.65 |
| 25 |
90340-12802-00 |
PLUG, STRAIGHT SCREW Price: $2.20 |
| 26 |
90201-12172-00 |
WASHER, PLATE Price: $3.45 |
| 27 |
95817-08016-00 |
BOLT,FLANGE (JN5) This part replaces 95812-08016-00. Price: $5.49 |
| 28 |
90430-08119-00 |
GASKET Price: $7.49 |
| 29 |
4Y4-E5363-00-00 |
PLUG, OIL Price: $1.10 |
| 30 |
93210-14579-00 |
O-RING This part replaces 93210-14805-00. Price: $7.49 |
| 31 |
1DK-E5362-00-00 |
PLUG, OIL LEVEL Price: $2.20 |
| 32 |
5ML-E3769-00-00 |
O-RING Price: $0.40 |
| 33 |
52S-E5421-00-00 |
COVER, CRANKCASE 2 Price: $31.99 |
| 34 |
52S-E5461-00-00 |
GASKET, CRANKCASE COVER 2 Price: $9.49 |
| 35 |
91810-14807-00 |
PIN, DOWEL Price: $1.75 |
| 36 |
95024-08040-00 |
BOLT, FLANGE This part replaces 95022-08040-00. Price: $9.49 |
| 37 |
1DK-E5411-01-00 |
COVER, CRANKCASE 1 Price: $101.99 |
| 38 |
52S-E5451-00-00 |
GASKET, CRANKCASE COVER 1 Price: $13.49 |
| 39 |
52S-E5383-00-00 |
PLATE, BEARING COVER Price: $0.55 |
| 40 |
92012-06012-00 |
BOLT, BUTTON HEAD This part replaces 90111-06065-00. Price: $4.70 |
| 41 |
91810-14807-00 |
PIN, DOWEL Price: $1.75 |
| 42 |
5ML-E5481-00-00 |
BOLT 1 Price: $2.35 |
| 43 |
5ML-E5422-00-00 |
BUSH Price: $8.49 |
| 44 |
5ML-E5158-00-00 |
WASHER Price: $1.20 |
| 45 |
1DK-E5471-00-00 |
DUCT, AIR Price: $9.49 |
| 46 |
1DK-E5338-00-00 |
DAMPER 5 Price: $3.55 |
| 47 |
52S-E5472-00-00 |
SEAL, AIR DUCT Price: $2.35 |
| 48 |
52S-E5408-00-00 |
ELEMENT 2 Price: $13.49 |
| 49 |
95027-06020-00 |
BOLT, FLANGE Price: $1.20 |
| 50 |
1DK-E5484-00-00 |
CLAMP 2 Price: $3.80 |
| 51 |
1DK-XE543-00-00 |
COVER, CRANKCASE 3 Price: $39.99 |
