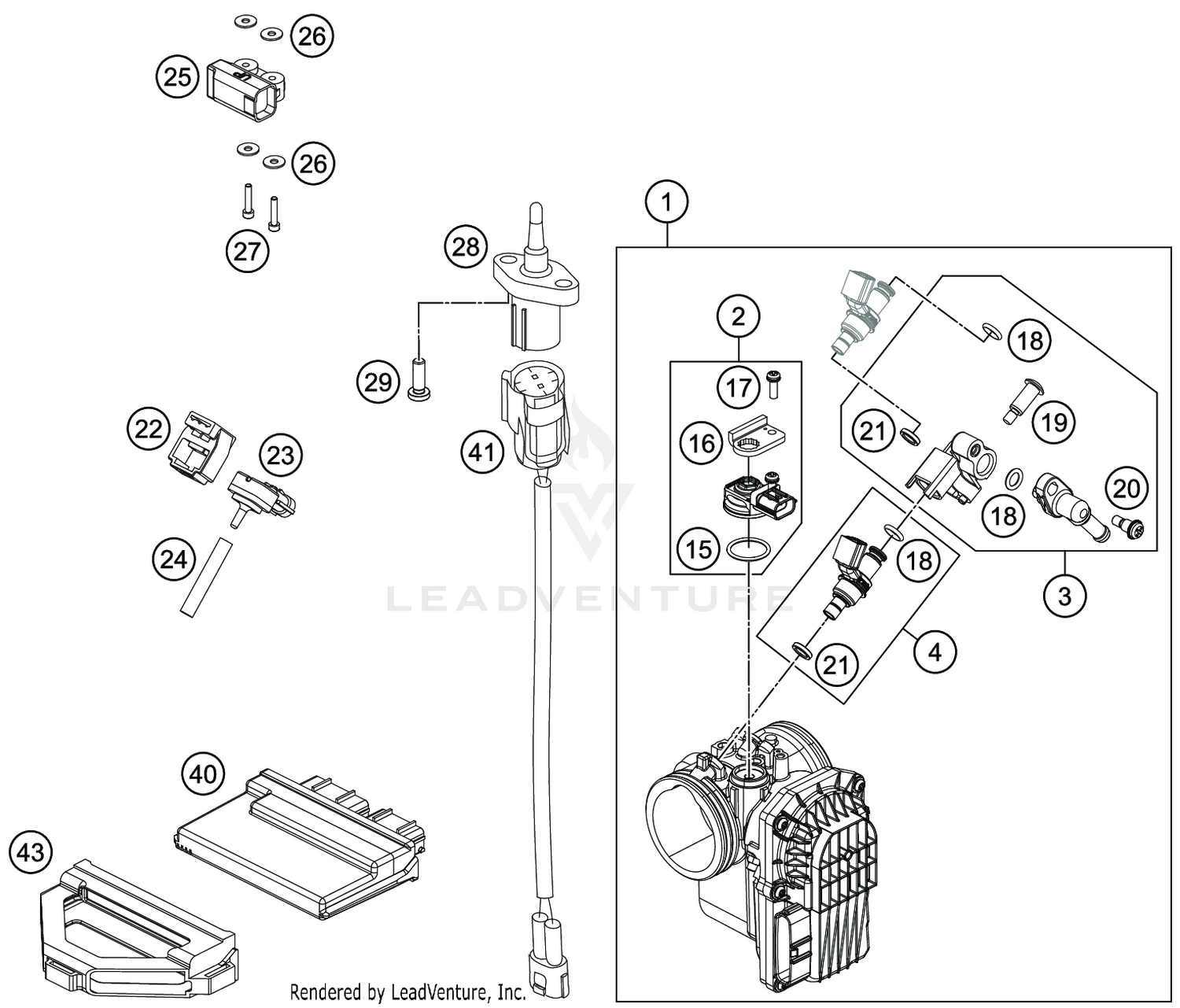

THROTTLE BODY
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 76641001000 | THROTTLE BODY Price: $669.01 |
| 2 | 75041085044 | MAP SENSOR CPL. 07 Price: $211.74 |
| 3 | 75041013044 | FUEL RAIL ASSY SET 07 Price: $123.30 |
| 4 | 76041023044 | FUEL INJECTOR ASSY SET Price: $239.24 |
| 15 | 75041085010 | O-RING Price: $7.14 |
| 16 | 75041085020 | PLATE, STAY Price: $6.15 |
| 17 | 75041085030 | SCREW WASHER Price: $3.99 |
| 18 | 75041023020 | O-RING 7,2x2,2 Price: $10.66 |
| 19 | 75041013060 | SCREW SHOULDER Price: $7.91 |
| 20 | 75041013010 | SCREW SHOULDER Price: $7.80 |
| 21 | 75041023010 | SEAL RING Price: $13.52 |
| 22 | 61041085150 | RUBBER SUPP. PRESSURE SENS. 06 Price: $6.15 |
| 23 | 61041085100 | PRESSURE SENSOR 06 Price: $169.83 |
| 25 | 61041088000 | ROLLOVER SENSOR 05 Price: $79.63 |
| 26 | 61041088050 | SHIM 4,3X15X1,25MM GALVANIZED Price: $1.99 |
| 27 | 0912040253 | AH SCREW DIN0912-M 4X25 Price: $1.99 |
| 28 | 61041080000 | AMBIENT-AIR TEMPERATURE SENSOR Price: $27.93 |
| 29 | 0018050163 | INT. TORX OVAL HEAD M5X16 Price: $1.99 |
| 40 | 61341031100 | ECU Price: $976.46 |
| 41 | 76011048000 | AMBIENT-AIR TEMP. SENSOR CABLE Price: $7.69 |
