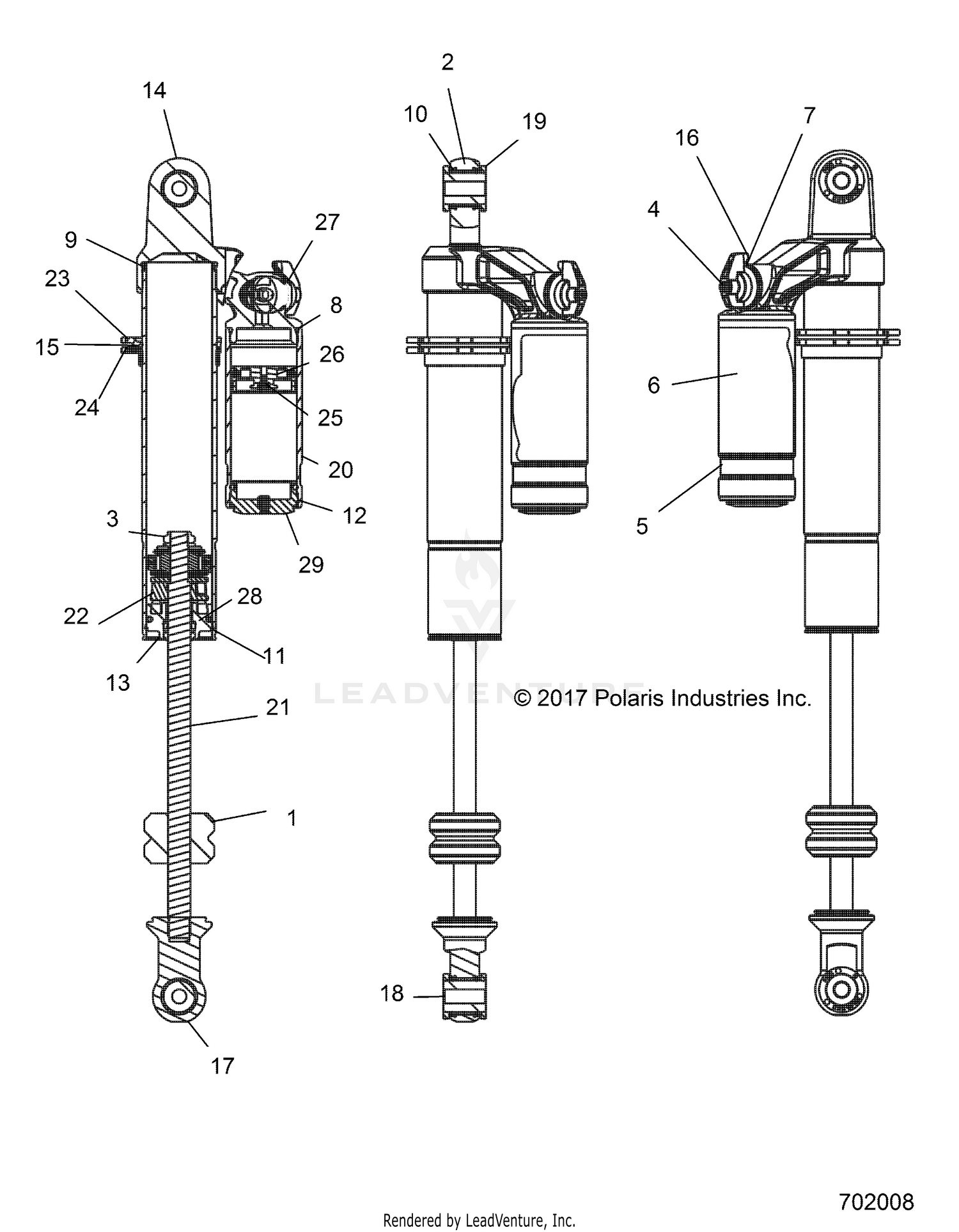

| Ref | Part Number | Description |
|---|
| 1 |
1501028 |
BUMPER, B/O SHAFT Price: $29.99 |
| 2 |
1501010 |
BUSHING, EYELET Price: $24.99 |
| 3 |
------- |
FASTENER, STANDARD: NUT, LOCK [1/2-20 X 0.313 TLG] |
| 4 |
1501011 |
SCREW, #4, SS PAN Price: $16.99 |
| 5 |
1501012 |
DECAL, PERFORMANCE SERIES Price: $18.99 |
| 6 |
1501013 |
DECAL, RESERVOIR Price: $13.99 |
| 7 |
1501105 |
DECAL, BASE VALVE, 3 POSITION Price: $49.99 |
| 8 |
1500623 |
O-RING,.103W-1.737ID Price: $7.99 |
| 9 |
------- |
SEALS:O-RING [(-135) .103 C.S. X 1.925 ID] STANDARD, N-70, STATIC |
| 10 |
1501274 |
SEAL - CANNED WEATHER Price: $15.99 |
| 11 |
------- |
RETAINING RING: WIRE [0.062 CS X 1.850 ID] 17-7 SS |
| 12 |
1501015 |
RING-RETAINING, WIRE 2.050 Price: $11.99 |
| 13 |
1501100 |
CAP, BEARING Price: $49.99 |
| 14 |
------- |
BODY, CAP, PIGGY BACK, LH |
| 15 |
1501018 |
BODY, 1.834X10.5 Price: $79.99 |
| 16 |
1501108 |
KNOB, DAMP. ADJ, BLK Price: $24.99 |
| 17 |
------- |
EYELET PART: EYELET, 1.0097 BORE X .800 W, 5/8UNF, 2.200 LG |
| 18 |
1501087 |
EYELET PART: SLEEVE, .397 ID X .875 OD X 1.181 TLG Price: $29.99 |
| 19 |
1501088 |
EYELET PART: SPACER, .876 ID X 1.25 OD X .150 TLG Price: $7.99 |
| 20 |
------- |
RESERVOIR:0 1.834 BORE,5.000TLG ALUMINUM THREADED ID SHORT OD STEP |
| 21 |
1501024 |
SHAFT, .62X11.4TLG Price: $124.99 |
| 22 |
1501025 |
SPACER: SHAFT, 0.625 ID X 0 1.300 OD X O 0.588 TLG, NYLON 66 Price: $11.99 |
| 23 |
------- |
SPRING HARDWARE: PRELOAD RING BACK UP [3.250 OD X 0.280 TLG, 2.080-14 STUB ACME ID] LOW CARBON STEEL, ZINC PLATED |
| 24 |
------- |
SPRING HARDWARE: PRELOAD RING [3.250 OD X 0.515 TLG, 2.080-14 STUB ACME ID] LOW CARBON STEEL, ZINC PLATED |
| 25 |
------- |
SCREW ASSEMBLY: [FLAT HEAD SOCKET CAP #10-24 X 0.375 TLG] STEEL BLACK OXIDE, COMPLETE |
| 26 |
------- |
ASM., PISTON, FLOAT |
| 27 |
1501186 |
DAMPING ADJUSTMENT ASSEMBLY Price: $304.99 |
| 28 |
1501185 |
ASM., BEARING, .62SHAFT Price: $169.99 |
