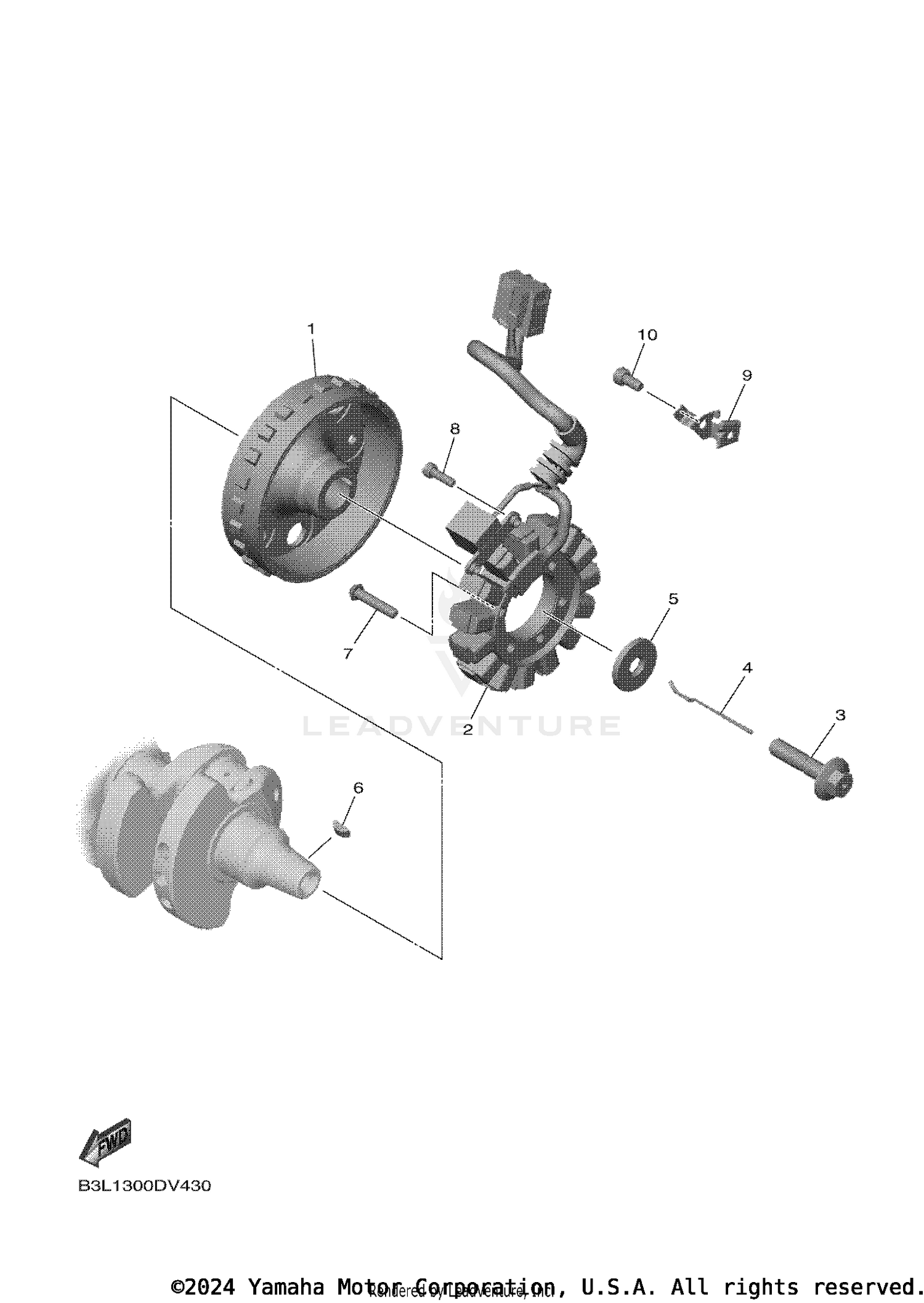

GENERATOR
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 2CR-81450-00-00 | ROTOR ASSY Price: $615.99 |
| 2 | 2CR-81410-02-00 | STATOR ASSY This part replaces 2CR-81410-00-00. Price: $309.99 |
| 3 | 90109-10061-00 | BOLT Price: $33.99 |
| 4 | 2CR-11455-00-00 | SHAFT 1 Price: $3.30 |
| 5 | 90201-107K6-00 | WASHER, PLATE Price: $13.49 |
| 6 | 90280-05029-00 | KEY, WOODRUFF Price: $12.49 |
| 7 | 90149-06129-00 | SCREW This part replaces 90149-06128-00. Price: $9.49 |
| 8 | 91317-05016-00 | BOLT This part replaces 90110-05034-00. Price: $3.55 |
| 9 | 2CR-15484-00-00 | CLAMP 2 Price: $9.49 |
