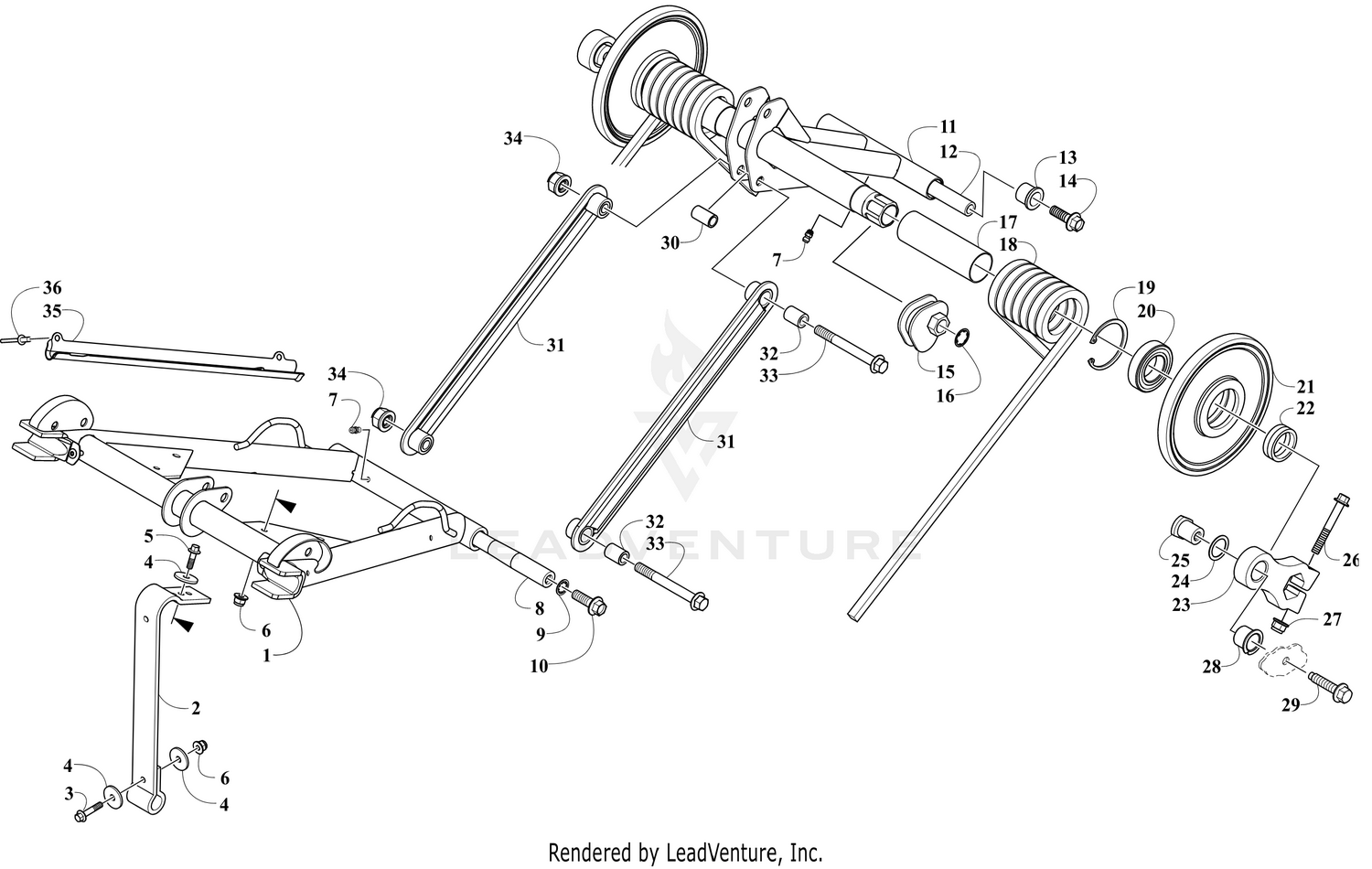

| Ref | Part Number | Description |
| 2 |
3604-891 |
Strap, Limiter Price: $20.56 |
| 3 |
8408-630 |
Screw, Cap Price: $1.08 |
| 4 |
8450-109 |
Washer Price: $0.70 |
| 5 |
8476-620 |
Screw, Machine This part replaces 8408-620. Price: $0.48 |
| 6 |
8427-602 |
Nut, Hex Price: $0.23 |
| 7 |
1623-010 |
Fitting, Grease Price: $2.05 |
| 8 |
4604-086 |
Axle, Inner Price: $53.95 |
| 9 |
1623-992 |
Washer, Internal Tooth Lock Price: $0.35 |
| 10 |
8413-031 |
Screw, Cap Price: $2.91 |
| 12 |
3604-276 |
Axle Price: $36.95 |
| 13 |
1604-100 |
Bushing, Flared Price: $7.23 |
| 14 |
8413-041 |
Screw, Cap Price: $3.38 |
| 15 |
1604-204 |
Block, Spring Adjuster - Right - Black Price: $20.19 |
| 15 |
1604-205 |
Block, Spring Adjuster - Left - Black Price: $20.19 |
| 16 |
0623-138 |
Ring, Retaining Price: $0.70 |
| 17 |
3604-288 |
Sleeve, Spring Price: $3.75 |
| 18 |
4704-152 |
Spring, Suspension - Right Price: $50.95 |
| 18 |
4704-153 |
Spring, Suspension - Left Price: $50.95 |
| 19 |
3604-256 |
Ring, Retaining Price: $5.34 |
| 20 |
3604-257 |
Bearing Price: $36.95 |
| 22 |
3604-674 |
Spacer, Pivot - Idler Arm Price: $1.45 |
| 24 |
3604-930 |
Washer Price: $1.08 |
| 25 |
3604-979 |
Axle Price: $3.75 |
| 26 |
8408-860 |
SCREW,CAP-HFH M8X1.25X60 CL8.8 Z&Y Price: $4.39 |
| 27 |
8427-802 |
Nut, Lock Price: $0.58 |
| 28 |
3604-713 |
Bushing, Flared Price: $4.11 |
| 29 |
8409-031 |
Screw, Cap Price: $1.49 |
| 30 |
3604-109 |
Sleeve Price: $4.89 |
| 31 |
0704-928 |
Link, Shock Price: $40.95 |
| 32 |
3604-330 |
Axle, Link Price: $2.66 |
| 33 |
8408-090 |
Screw, Cap Price: $4.11 |
| 34 |
2623-202 |
Nut, Lock w/Washer Price: $1.32 |
| 35 |
8060-706 |
Rivet Price: $0.46 |
