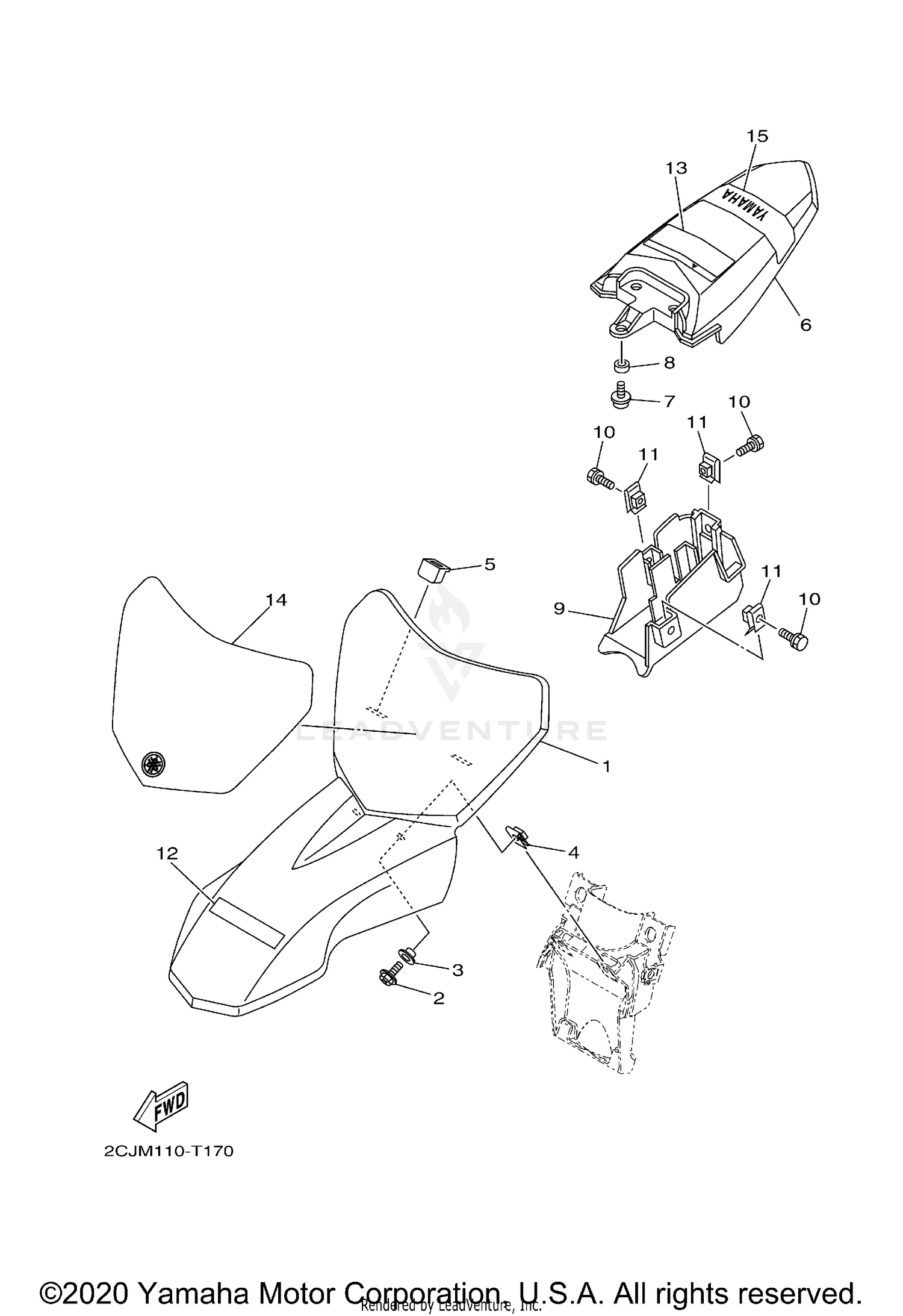

FENDER
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1P6-F1511-00-00 | FENDER, FRONT Price: $63.99 |
| 2 | 95022-06014-00 | BOLT, FLANGE Price: $3.40 |
| 3 | 90387-07818-00 | COLLAR Price: $9.49 |
| 4 | 90183-06023-00 | NUT, SPRING This part replaces 90183-06802-00. Price: $10.49 |
| 5 | 90480-16185-00 | GROMMET Price: $9.49 |
| 6 | 1P6-F1611-00-00 | FENDER, REAR Price: $53.99 |
| 7 | 90159-06182-00 | SCREW, WITH WASHER This part replaces 90159-06830-00. Price: $10.49 |
| 8 | 90387-07808-00 | COLLAR Price: $8.49 |
| 9 | 1P6-F160E-01-00 | BOX This part replaces 1P6-F160E-00-00. Price: $24.99 |
| 10 | 97502-06514-00 | BOLT, WITH WASHER Price: $3.55 |
| 11 | 90183-06023-00 | NUT, SPRING This part replaces 90183-06802-00. Price: $10.49 |
| 12 | 1P6-F151A-40-00 | LABEL 1 Price: $7.49 |
| 13 | 3PT-2118K-A2-00 | LABEL, CAUTION Price: $5.99 |
| 14 | 1P6-F1569-20-00 | GRAPHIC 1 Price: $38.99 |
