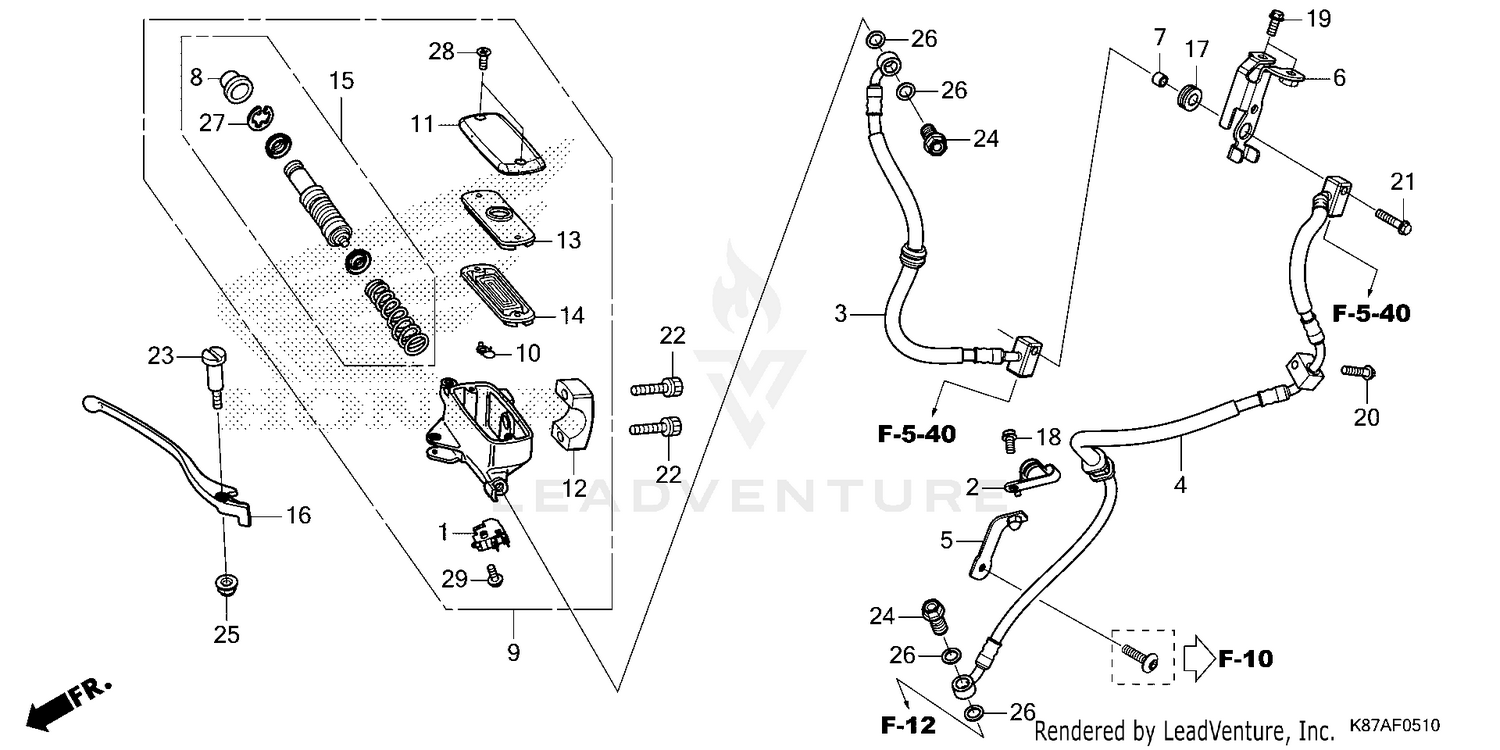

| Ref | Part Number | Description |
|---|
| 1 |
35340-MGS-D31 |
SWITCH ASSY., FR. STOP Price: $22.42 |
| 2 |
43155-K87-L50 |
CLAMP, BRAKE HOSE Price: $3.51 |
| 3 |
45125-K87-A81 |
HOSE A, FR. BRAKE Price: $47.29 |
| 4 |
45128-K87-A81 |
HOSE D, FR. BRAKE Price: $90.38 |
| 5 |
45155-K87-A00 |
STAY, FR. BRAKE HOSE Price: $4.35 |
| 6 |
45160-K87-L50 |
STAY B, FR. BRAKE HOSE Price: $12.82 |
| 7 |
45161-K87-L50 |
COLLAR, BRAKE HOSE STAY Price: $1.87 |
| 8 |
45504-410-003 |
BOOT Price: $14.75 |
| 9 |
45510-K87-A01 |
MASTER CYLINDER SUB-ASSY., FR. (NISSIN) Price: $151.00 |
| 10 |
45512-MA6-006 |
PROTECTOR Price: $5.38 |
| 11 |
45513-MM5-016 |
CAP, MASTER CYLINDER (NISSIN) Price: $27.15 |
| 12 |
45517-MAV-751 |
HOLDER, MASTER CYLINDER (NISSIN) Price: $25.09 |
| 13 |
45518-MM5-006 |
PLATE, DIAPHRAGM (NISSIN) Price: $12.91 |
| 14 |
45520-MM5-006 |
DIAPHRAGM (NISSIN) Price: $18.31 |
| 15 |
45530-KVS-M21 |
MASTER CYLINDER SET, FR. (NISSIN) Price: $22.88 |
| 16 |
53175-MR5-003 |
LEVER, R. HANDLEBAR Price: $19.75 |
| 17 |
64312-KWW-640 |
GROMMET, MAIN PIPE COVER Price: $1.11 |
| 18 |
90013-GHB-600 |
BOLT, FLANGE (6X10) Price: $5.11 |
| 19 |
90013-GHB-610 |
BOLT, FLANGE (6X12) (L. SIDE ONLY) Price: $2.65 |
| 20 |
90013-GHB-680 |
BOLT, FLANGE (6X28) Price: $1.13 |
| 21 |
90013-GHB-690 |
BOLT, FLANGE (6X32) Price: $1.07 |
| 22 |
90111-GHB-660 |
BOLT, SOCKET (6X22) Price: $1.13 |
| 23 |
90114-MA5-671 |
BOLT, R. HANDLEBAR PIVOT Price: $11.42 |
| 24 |
90145-MS9-612 |
BOLT, OIL (10X22) (SAGA) Price: $9.20 |
| 25 |
94050-06000 |
NUT, FLANGE (6MM) Price: $0.68 |
| 26 |
90545-300-000 |
WASHER, OIL BOLT Price: $5.02 |
| 27 |
90651-K03-M61 |
CIRCLIP (INNER) (18.8) Price: $0.78 |
| 28 |
93600-04012-0G |
SCREW, FLAT (4X12) Price: $0.95 |
| 29 |
93893-04012-07 |
SCREW-WASHER (4X12) Price: $1.40 |
