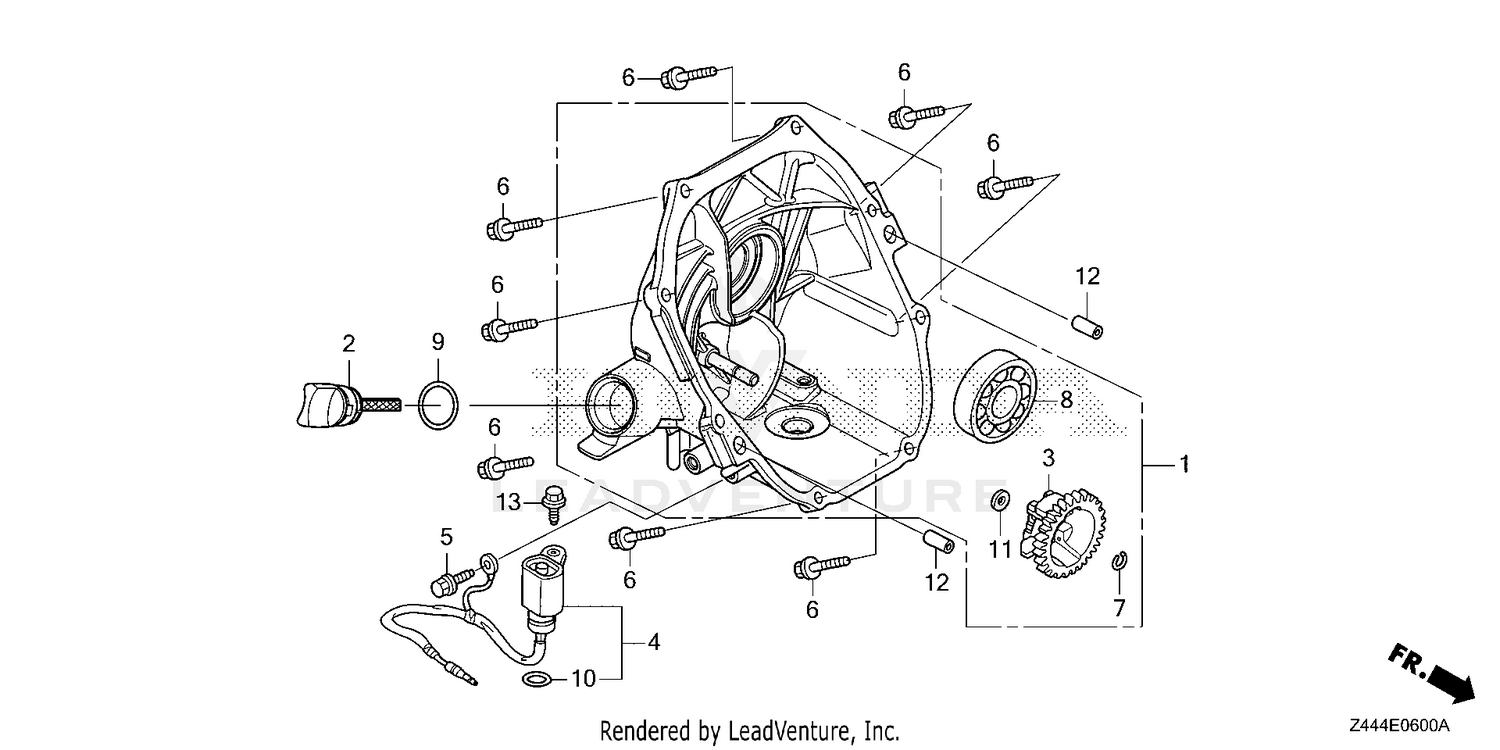

| Ref | Part Number | Description |
|---|
| 1 |
11300-ZDJ-405 |
COVER ASSY., CRANKCASE Price: $152.76 |
| 2 |
15620-ZE2-700 |
CAP, OIL FILLER Price: $8.30 |
| 3 |
16512-ZL8-000 |
HOLDER, GOVERNOR WEIGHT Price: $4.96 |
| 4 |
35480-Z0D-D02 |
SEE PART DETAILS - PRI; SWITCH ASSY., OIL LEVEL Price: $51.28 |
| 6 |
90121-952-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) Use up to Engine SN 2056819. Price: $2.82 |
| 7 |
90602-ZE1-000 |
SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697). Price: $1.74 |
| 8 |
91001-878-003 |
BEARING, RADIAL BALL (62/22) (Honda Code 0442061). Price: $37.88 |
| 9 |
91301-ZDJ-D00 |
O-RING (25.5X3) Price: $1.26 |
| 10 |
91302-ZL8-003 |
O-RING (11.8X2.4) Price: $1.38 |
| 11 |
94101-06800 |
SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900). Price: $0.82 |
| 12 |
94301-08200 |
SEE PART DETAILS - PRI; PIN, DOWEL (8X20) Price: $2.82 |
