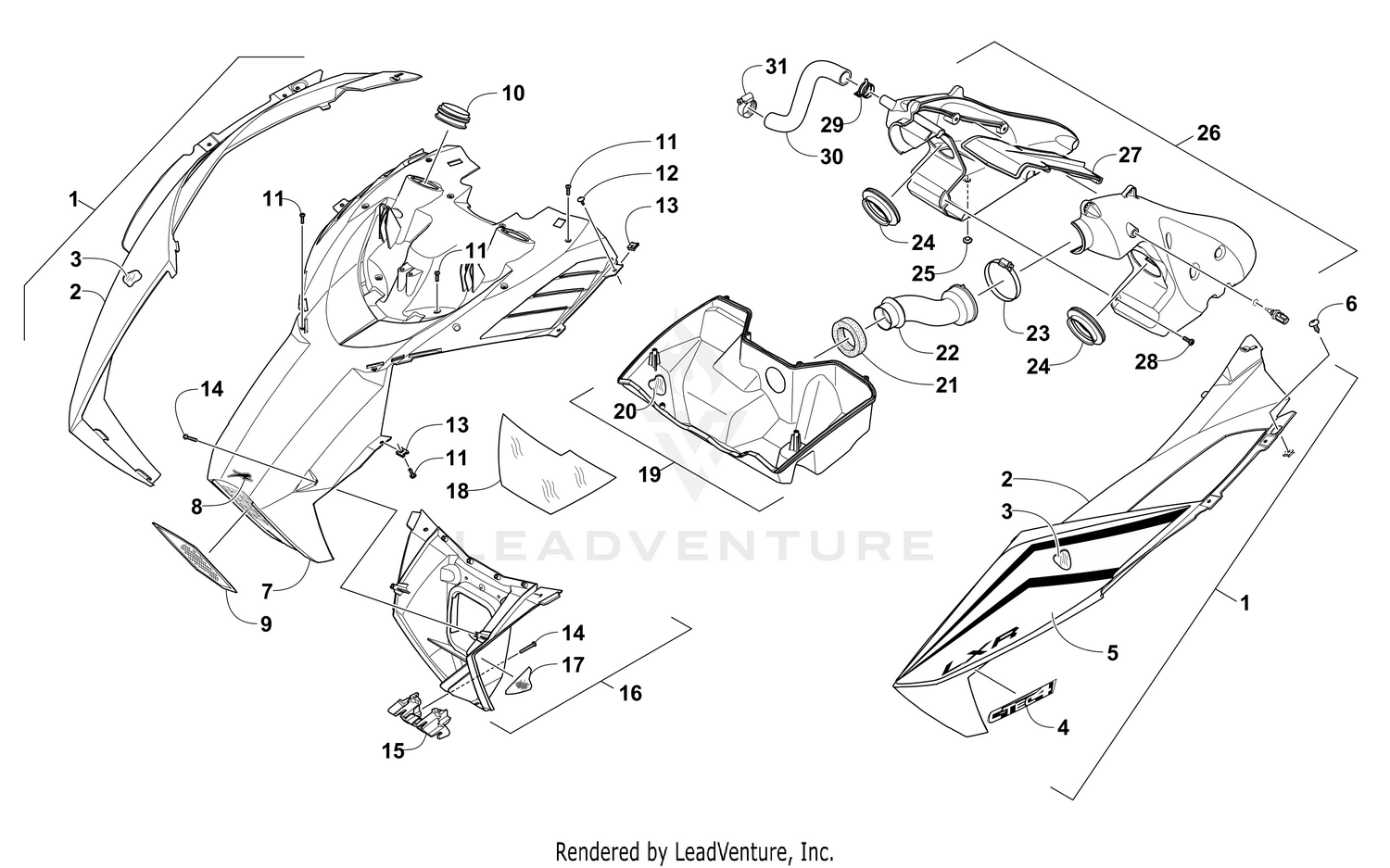

HOOD AND AIR INTAKE ASSEMBLY [106220]

HOOD AND AIR INTAKE ASSEMBLY [106220]

Parts (27)

RefPart NumberDescription
3 6606-415 Foil, Protective - Left Price: $5.21
3 6606-420 Foil, Protective - Right Price: $1.49
4 0621-993 Decal, Hood - "C-TEC4" Price: $4.72
5 2621-616 Decal, Hood - Right - Orange Price: $42.95
5 2621-617 Decal, Hood - Left - Orange Price: $42.95
6 0623-784 Screw, Self-Tapping Price: $0.09
7 6606-383 Plenum, Intake - Upper Price: $214.95
8 4411-479 Emblem, Aircat Price: $8.83
9 0608-696 Screen, Vent Price: $22.99
10 6606-386 Seal Price: $3.75
11 1623-933 Screw, Self-Tapping Price: $0.35
12 0623-797 Screw, Self-Tapping Price: $0.42
13 1623-939 Nut, U Price: $1.30
14 1623-929 Screw, Self-Tapping Price: $1.45
15 6606-822 Retainer, Plenum Price: $14.49
17 0621-989 Decal, Reflector - Amber Price: $15.71
18 6606-421 Foil, Protective Price: $1.39
20 6606-419 Foil, Protective Price: $19.35
21 0617-644 Seal Price: $0.99
22 2670-164 Duct, Intake Price: $34.95
23 0423-018 Clamp, Hose Price: $7.23
24 2670-161 Boot, Throttle Body Price: $22.41
25 0406-877 BUMPER,SEAT Price: $3.88
27 2670-183 Baffle, Air Silencer Price: $22.41
28 1623-251 Screw, Self-Tapping Price: $0.35
29 1623-229 Clamp, Hose Price: $4.11
30 0610-852 Hose, Breather Price: $24.20
