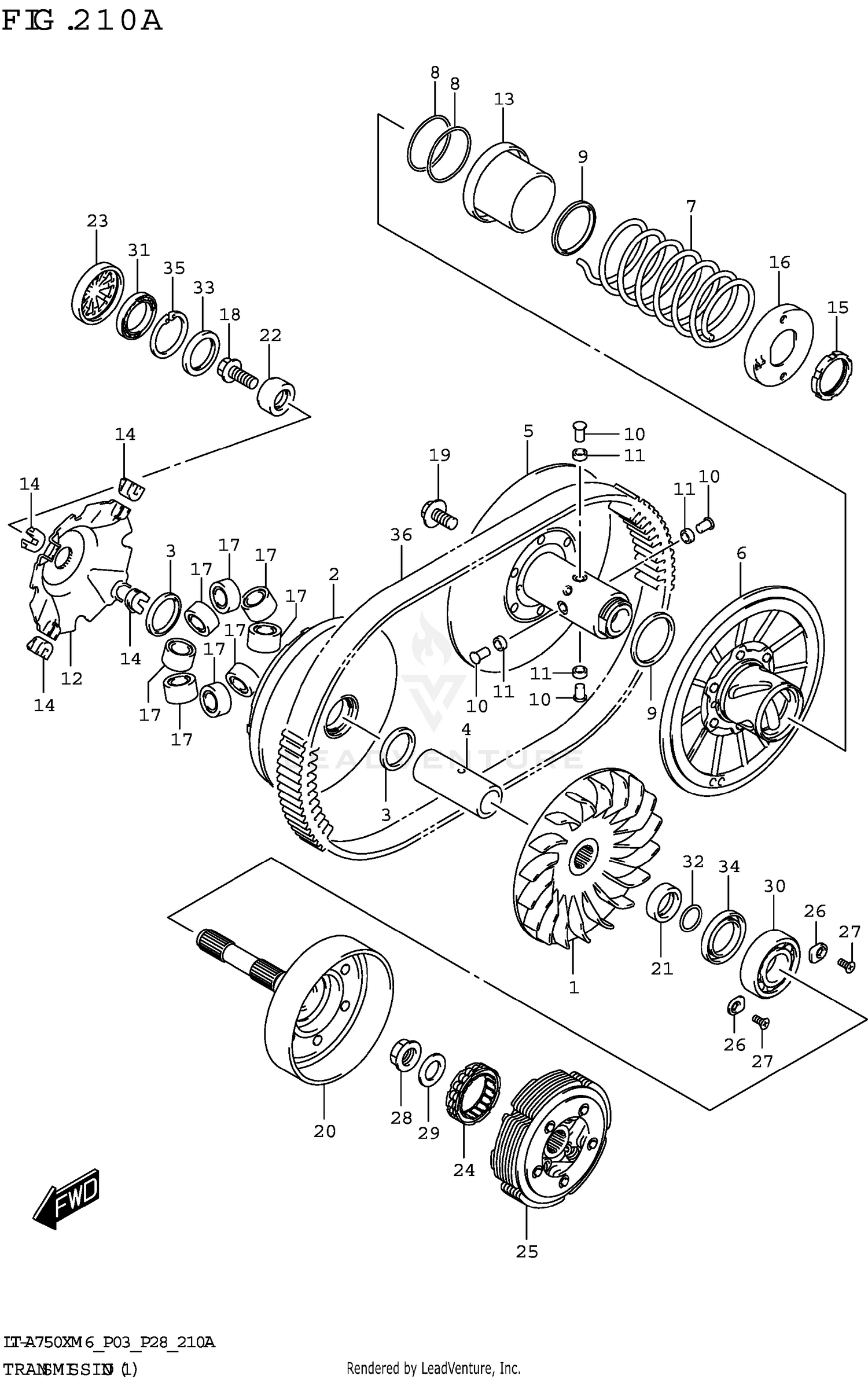

| Ref | Part Number | Description |
|---|
| 1 |
21110-31G00 |
FACE,FIXED DRIVE Price: $195.24 |
| 2 |
21120-31G00 |
FACE,MOVABLE DRIVE Price: $202.82 |
| 3 |
21124-09F50 |
SEAL,MOVABLE DRIVE FACE OIL Price: $13.55 |
| 4 |
21125-31G00 |
SPACER,MOVABLE DRIVE Price: $72.64 |
| 5 |
21210-31G01 |
FACE,FIXED DRIVEN Price: $450.56 |
| 6 |
21240-31G10 |
FACE,MOVABLE DRIVEN Price: $266.73 |
| 7 |
21243-09F60 |
SPRING,MOVABLE DRIVEN Price: $39.84 |
| 8 |
21245-15F00 |
O-RING Price: $6.38 |
| 9 |
21247-31G00 |
SEAL,MOVABLE DRIVEN Price: $15.42 |
| 10 |
21248-15F01 |
PIN,MOVABLE DRIVEN Price: $6.05 |
| 11 |
21249-15F00 |
SPACER,MOVABLE DRIVEN PIN Price: $6.83 |
| 12 |
21431-31G00 |
PLATE,MOVABLE DRIVE Price: $56.14 |
| 13 |
21471-09F60 |
SHEET,MOVABLE DRIVEN Price: $21.47 |
| 14 |
21481-14F00 |
DAMPER,MOVABLE DRIVE PLATE Price: $8.92 |
| 15 |
21518-09F50 |
NUT,DRIVEN PULLY SPRING Price: $33.98 |
| 16 |
21519-09F52 |
HOLDER,MOVABLE DRIVEN SPRING Price: $23.59 |
| 17 |
21650-09F51 |
ROLLER,MOVABLE DR Price: $20.80 |
| 18 |
09103-12028 |
BOLT (12X30) Price: $8.28 |
| 19 |
09103-12049 |
BOLT (12X25) Price: $5.18 |
| 20 |
21100-31G20 |
HOUSING,CLUTCH Price: $349.41 |
| 21 |
21102-31G00 |
SPACER,PRIMARY SHAFT Price: $32.97 |
| 22 |
21106-31G10 |
SPACER,CLUTCH HOUSING BRG FR Price: $35.51 |
| 23 |
21107-31G00 |
CAP,V-BELT BEARING HOUSING Price: $11.39 |
| 24 |
21273-44D00 |
CLUTCH,PRI DRIVE ONE WAY Price: $171.35 |
| 25 |
21500-31G00 |
CLUTCH ASSY,SHOE Price: $480.96 |
| 26 |
24741-20A00 |
RETAINER, SHIFT CAM BEARING Price: $3.29 |
| 27 |
09126-06011 |
SCREW (6X12) Price: $2.45 |
| 28 |
09159-18027 |
NUT Price: $16.43 |
| 29 |
09164-18004 |
WASHER Price: $4.57 |
| 30 |
09262-28014 |
BEARING (28X68X18) Price: $71.59 |
| 31 |
09262-35075 |
BEARING (35X47X7) Price: $79.30 |
| 33 |
09283-35051 |
OIL SEAL (35X47X5) Price: $31.18 |
| 34 |
09283-38025 |
OIL SEAL (38X56X7) Price: $38.79 |
| 35 |
08331-41479 |
CIRCLIP Price: $2.80 |
