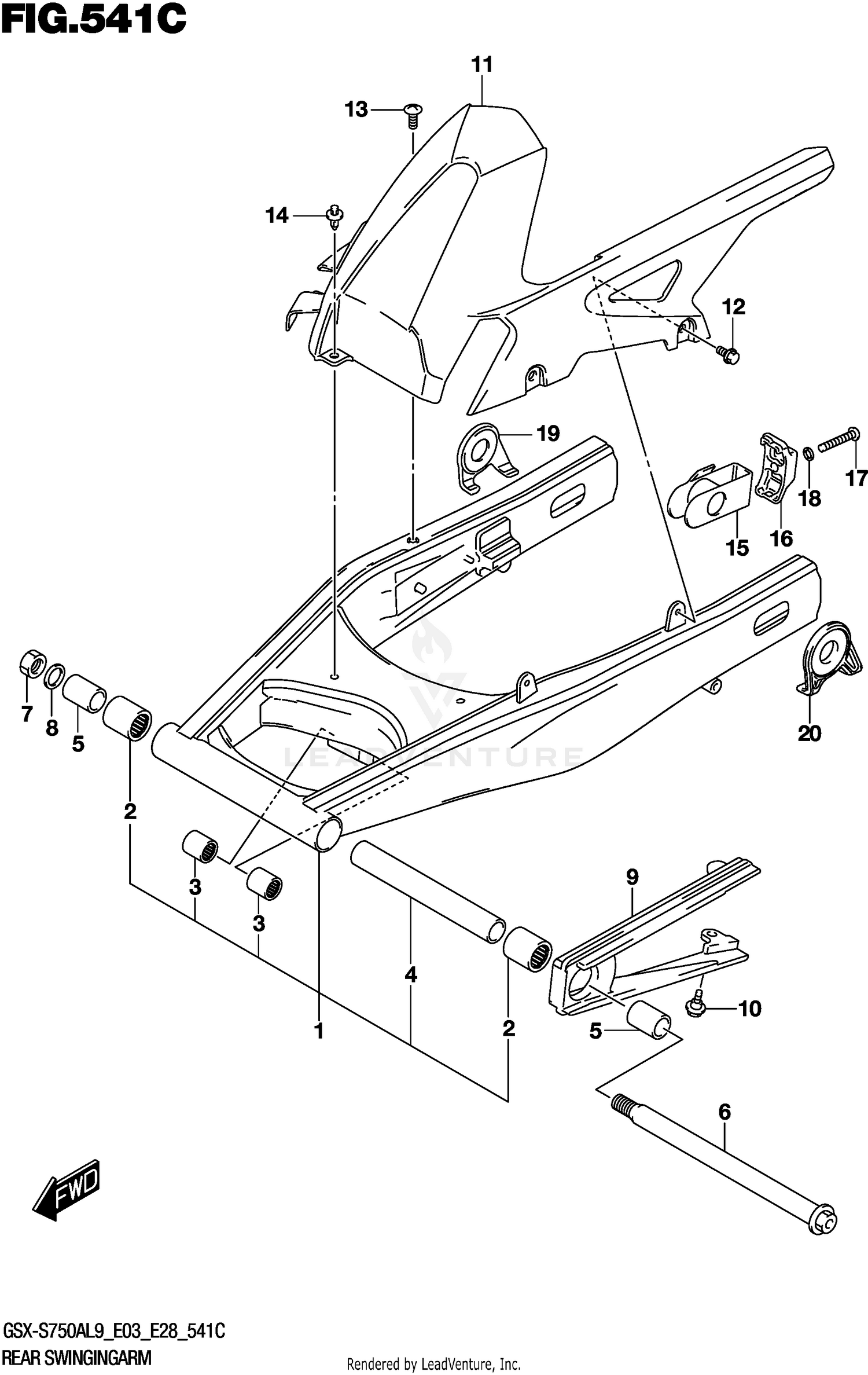

REAR SWINGINGARM (GSX-S750AL9 E28)
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 61000-13K01-YAP | SWINGINGARM ASSY,REAR (BLACK) This part replaces 61000-13K00-YAP. Price: $848.49 |
| 2 | 09263-25073 | BEARING (25X33X35) This part replaces 09263-25059. Price: $37.67 |
| 5 | 61251-21E00 | SPACER,RR SWGARM PIVOT Price: $32.46 |
| 6 | 61211-31E00 | SHAFT,RR SWGARM PIVOT Price: $139.02 |
| 7 | 09159-18007 | NUT Price: $20.68 |
| 8 | 09160-18030 | WASHER (18.5X28X2.6) Price: $3.12 |
| 9 | 61273-13K00 | BUFFER, CHAIN TOUCH DEFENSE Price: $30.91 |
| 10 | 09111-06072 | BOLT (6X17.8) Price: $2.45 |
| 11 | 61310-13K00 | CASE, CHAIN Price: $77.75 |
| 12 | 09111-06107 | BOLT (6X12) Price: $3.02 |
| 13 | 09139-06113 | SCREW (6X16) Price: $4.33 |
| 14 | 09409-08308-5ES | CLIP (BLACK) Price: $2.37 |
| 15 | 61410-13K00 | ADJUSTER, CHAIN Price: $22.27 |
| 16 | 61421-13K00 | PLATE, CHAIN ADJUSTER GUIDE Price: $26.68 |
| 17 | 09106-08119 | BOLT (8X50) Price: $4.99 |
| 18 | 09164-08015 | WASHER Price: $3.91 |
| 19 | 61445-13K00 | WASHER, CHAIN ADJUSTER RH Price: $30.57 |
