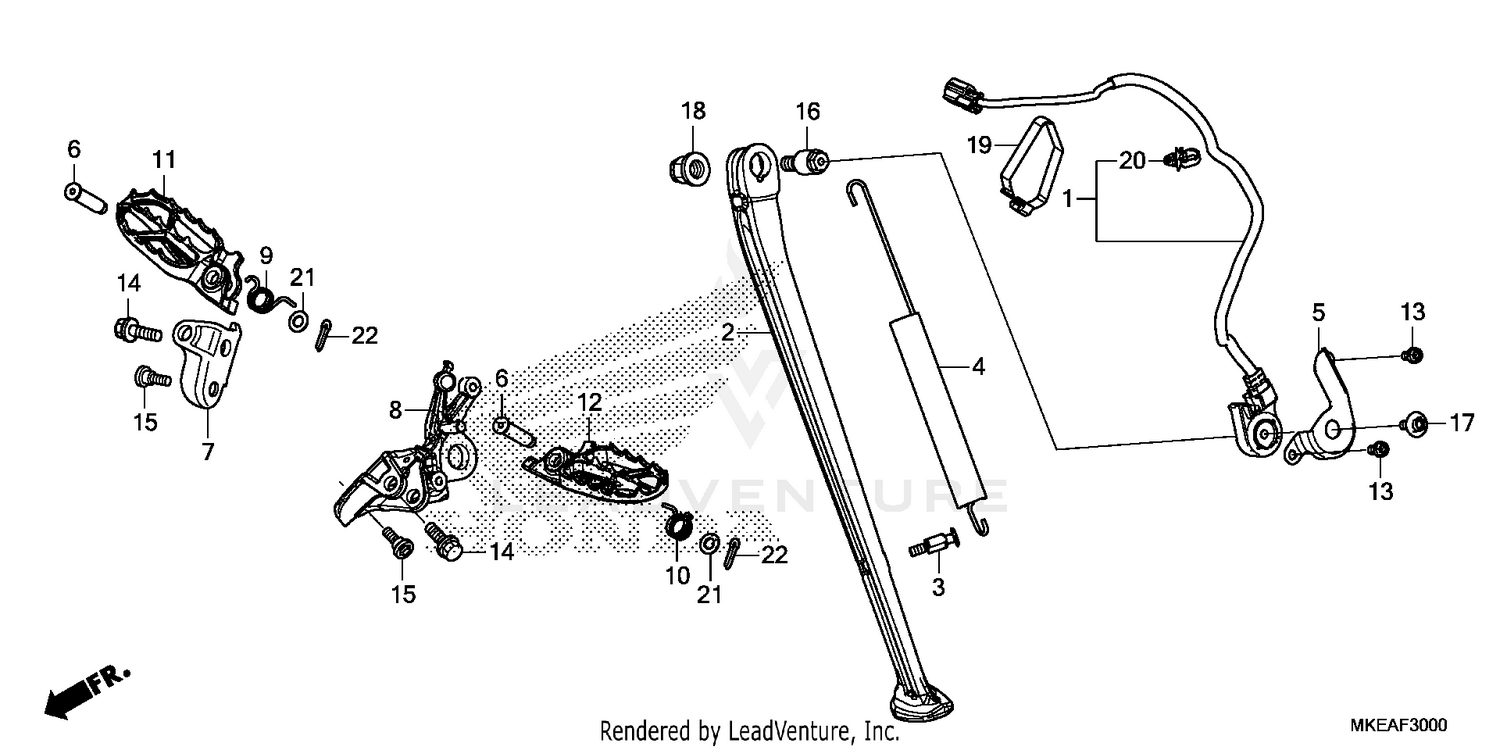

| Ref | Part Number | Description |
|---|
| 1 |
35700-MKE-A51 |
SWITCH ASSY., SIDE STAND Price: $91.25 |
| 2 |
50530-MKE-A50 |
BAR, SIDE STAND Price: $206.15 |
| 3 |
50538-MKE-A10 |
HOOK, SIDE STAND SPRING Price: $15.11 |
| 4 |
50540-MKE-A50 |
SPRING ASSY., SIDE STAND Price: $23.98 |
| 5 |
50547-MKE-A50 |
GUARD, SIDE STAND SWITCH Price: $7.20 |
| 6 |
50603-KZ4-J40 |
PIN, STEP JOINT Price: $4.60 |
| 7 |
50610-MEN-B10 |
BRACKET, R. STEP Price: $32.76 |
| 8 |
50611-MKE-A50 |
BRACKET, L. STEP Price: $193.18 |
| 9 |
50617-KZ4-J40 |
SPRING, R. STEP RETURN Price: $4.80 |
| 10 |
50618-KZ4-J40 |
SPRING, L. STEP RETURN Price: $4.80 |
| 11 |
50660-MKE-A70 |
ARM, R. STEP Price: $58.18 |
| 12 |
50670-MKE-A70 |
ARM, L. STEP Price: $58.18 |
| 13 |
90021-GHB-610 |
BOLT, FLANGE (6X10) Price: $2.42 |
| 14 |
90106-MKE-AJ0 |
BOLT, STEP (12MM) Price: $3.89 |
| 15 |
90110-MEN-B10 |
BOLT, STEP BRACKET Price: $3.71 |
| 16 |
90118-MKE-A50 |
BOLT, SIDE STAND PIVOT Price: $13.82 |
| 17 |
90147-MCE-950 |
BOLT, SPECIAL (6X16) Price: $0.64 |
| 18 |
90304-GE8-003 |
NUT, U (10MM) NUT, SELF-LOCK (10MM) Price: $4.62 |
| 19 |
90679-SG9-E01 |
BAND, SUCTION HOSE (BLACK) (Honda Code 3522752) Price: $4.68 |
| 20 |
91541-S0A-003 |
CLIP, HARNESS BAND (145MM) (BLACK) Price: $4.15 |
| 21 |
94102-08800 |
WASHER, PLAIN (8MM) Price: $0.98 |
| 22 |
94201-25300 |
PIN, SPLIT (2.5X30) This part replaces 94201-25150. Price: $1.08 |
