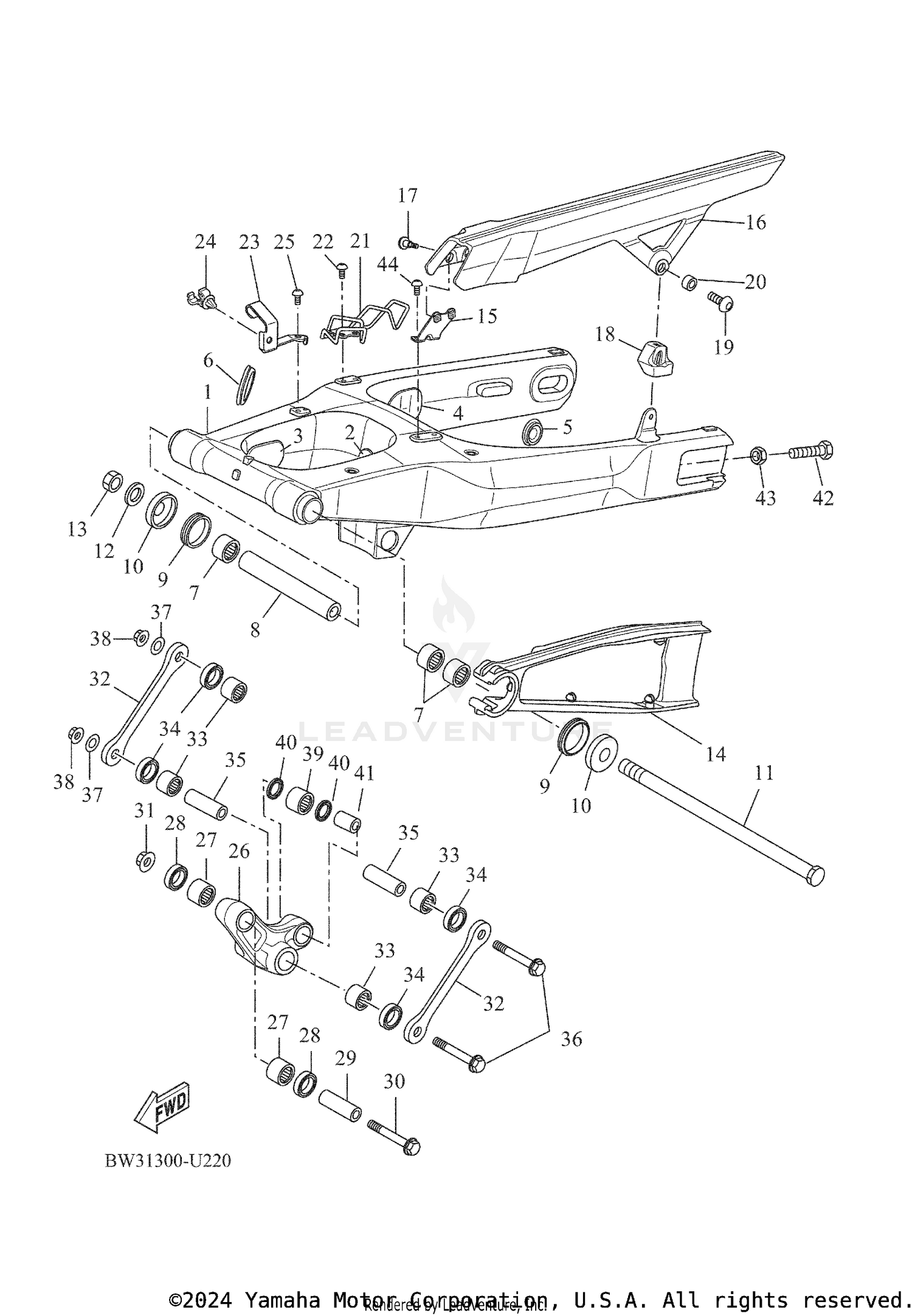

| Ref | Part Number | Description |
|---|
| 1 |
BW3-22100-00-00 |
REAR ARM ASSY Price: $1,713.99 |
| 2 |
90338-20008-00 |
PLUG Price: $3.80 |
| 3 |
90338-40004-00 |
PLUG Price: $8.49 |
| 4 |
90338-30008-00 |
PLUG Price: $8.49 |
| 5 |
90338-30007-00 |
PLUG Price: $4.70 |
| 6 |
BW3-22417-00-00 |
PLUG Price: $13.49 |
| 7 |
93317-22262-00 |
BEARING Price: $42.99 |
| 8 |
90387-16034-00 |
COLLAR Price: $55.99 |
| 9 |
93108-35004-00 |
OIL SEAL (35-41-8) Price: $17.49 |
| 10 |
30X-2219X-00-00 |
COVER Price: $17.99 |
| 11 |
BW3-22141-00-00 |
SHAFT, PIVOT Price: $50.99 |
| 12 |
90201-16021-00 |
WASHER, PLATE Price: $9.49 |
| 13 |
90185-16002-00 |
NUT, SELF-LOCKING Price: $18.49 |
| 14 |
BW3-F2151-00-00 |
SEAL, GUARD Price: $38.99 |
| 15 |
BW3-F2131-00-00 |
STAY, CHAIH CASE 1 Price: $20.99 |
| 16 |
11D-F2311-00-00 |
CASE, CHAIN Price: $57.99 |
| 17 |
1C3-22969-10-00 |
SCREW, 1 Price: $5.49 |
| 18 |
BW3-F2313-00-00 |
RUBBER, CHAIN CASE Price: $32.99 |
| 19 |
90111-05014-00 |
BOLT, HEX. SOCKET BUTTON Price: $2.85 |
| 20 |
90560-05001-00 |
SPACER Price: $4.80 |
| 21 |
BW3-25886-10-00 |
HOLDER, BRAKE HOSE Price: $64.99 |
| 22 |
90111-06864-00 |
BOLT,HEX. SOCKET BUTTON Price: $2.20 |
| 23 |
BW3-F216A-00-00 |
STAY 4 Price: $36.99 |
| 24 |
90464-14013-00 |
CLAMP Price: $3.85 |
| 25 |
90111-06864-00 |
BOLT,HEX. SOCKET BUTTON Price: $2.20 |
| 26 |
BW3-2217A-00-00 |
ARM, RELAY Price: $103.99 |
| 27 |
93315-31758-00 |
BEARING Price: $44.99 |
| 28 |
93109-17071-00 |
OIL SEAL Price: $8.49 |
| 29 |
90387-124V0-00 |
COLLAR Price: $19.49 |
| 30 |
90101-12058-00 |
BOLT Price: $11.49 |
| 31 |
95607-12200-00 |
NUT, SELF-LOCKING Price: $6.49 |
| 32 |
BW3-2217M-00-00 |
ARM 1 Price: $42.99 |
| 33 |
93317-21746-00 |
BEARING Price: $37.99 |
| 34 |
93109-17071-00 |
OIL SEAL Price: $8.49 |
| 35 |
90387-126Y1-00 |
COLLAR Price: $24.99 |
| 36 |
90101-12059-00 |
BOLT Price: $10.49 |
| 37 |
90201-124G9-00 |
WASHER, PLATE Price: $8.49 |
| 38 |
90185-12119-00 |
NUT, SELF-LOCKING Price: $12.49 |
| 39 |
93317-31771-00 |
BEARING Price: $39.99 |
| 40 |
93109-17071-00 |
OIL SEAL Price: $8.49 |
| 41 |
90387-127W0-00 |
COLLAR Price: $16.49 |
| 42 |
90101-08006-00 |
BOLT Price: $9.49 |
| 43 |
95302-08600-00 |
NUT, HEXAGON Price: $10.49 |
