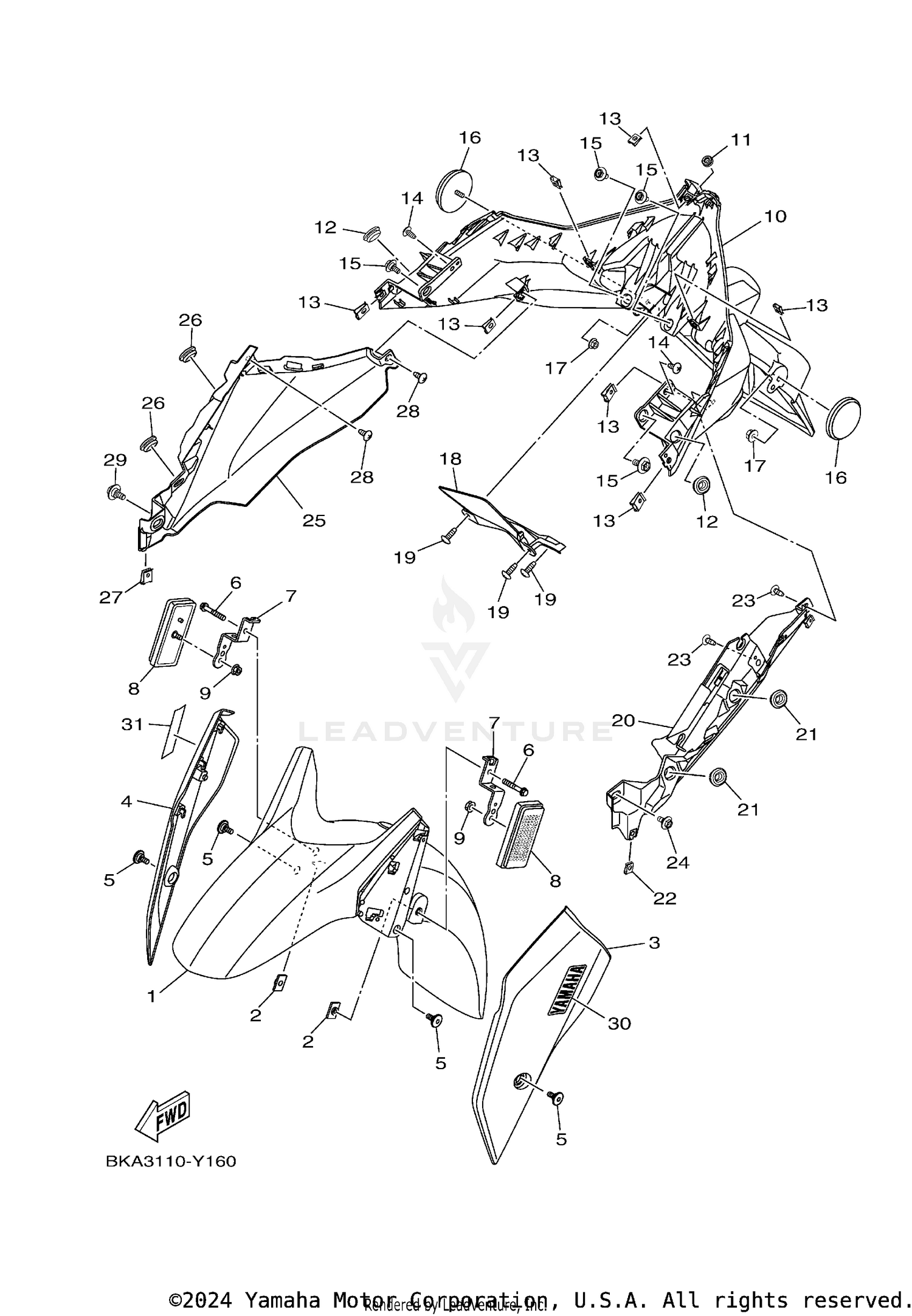

| Ref | Part Number | Description |
|---|
| 1 |
BKA-F1511-00-00 |
FENDER, FRONT Price: $20.99 |
| 2 |
90179-06055-00 |
NUT Price: $5.49 |
| 5 |
90109-068C5-00 |
BOLT Price: $1.50 |
| 6 |
91337-06035-00 |
BOLT Price: $0.50 |
| 7 |
B74-F113J-00-00 |
BRACKET, REFLECTOR 1 Price: $6.49 |
| 8 |
11H-85110-01-00 |
REFLECTOR ASSY Price: $30.99 |
| 9 |
95702-05500-00 |
NUT, WITH WASHER Price: $0.95 |
| 10 |
BKA-F1611-10-00 |
FENDER, REAR Price: $24.99 |
| 11 |
50C-H4759-00-00 |
GROMMET Price: $0.45 |
| 12 |
90480-01559-00 |
GROMMET Price: $6.49 |
| 13 |
90183-05042-00 |
NUT, SPRING This part replaces 90183-05807-00. Price: $1.00 |
| 14 |
97707-50012-00 |
SCREW, TRUSS HEAD TAPPING This part replaces 97702-50012-00. Price: $4.63 |
| 15 |
90109-068B5-00 |
BOLT Price: $0.50 |
| 16 |
449-85131-02-00 |
REFLECTOR, REAR 1 Price: $33.99 |
| 17 |
95707-05500-00 |
NUT, FLANGE Price: $9.49 |
| 18 |
BKA-F1651-00-00 |
COVER, REAR FENDER Price: $4.20 |
| 19 |
97707-50016-00 |
SCREW, TRUSS HEAD TAPPING Price: $1.85 |
| 20 |
BKA-F172A-00-00 |
PANEL 1 Price: $6.99 |
| 21 |
90480-01559-00 |
GROMMET Price: $6.49 |
| 22 |
90183-05042-00 |
NUT, SPRING This part replaces 90183-05807-00. Price: $1.00 |
| 23 |
97707-50012-00 |
SCREW, TRUSS HEAD TAPPING This part replaces 97702-50012-00. Price: $4.63 |
| 24 |
90109-068B5-00 |
BOLT Price: $0.50 |
| 25 |
BKA-F172F-00-00 |
PANEL 2 Price: $6.49 |
| 26 |
90480-01559-00 |
GROMMET Price: $6.49 |
| 27 |
90183-05042-00 |
NUT, SPRING This part replaces 90183-05807-00. Price: $1.00 |
| 28 |
97707-50012-00 |
SCREW, TRUSS HEAD TAPPING This part replaces 97702-50012-00. Price: $4.63 |
| 29 |
90109-068B5-00 |
BOLT Price: $0.50 |
