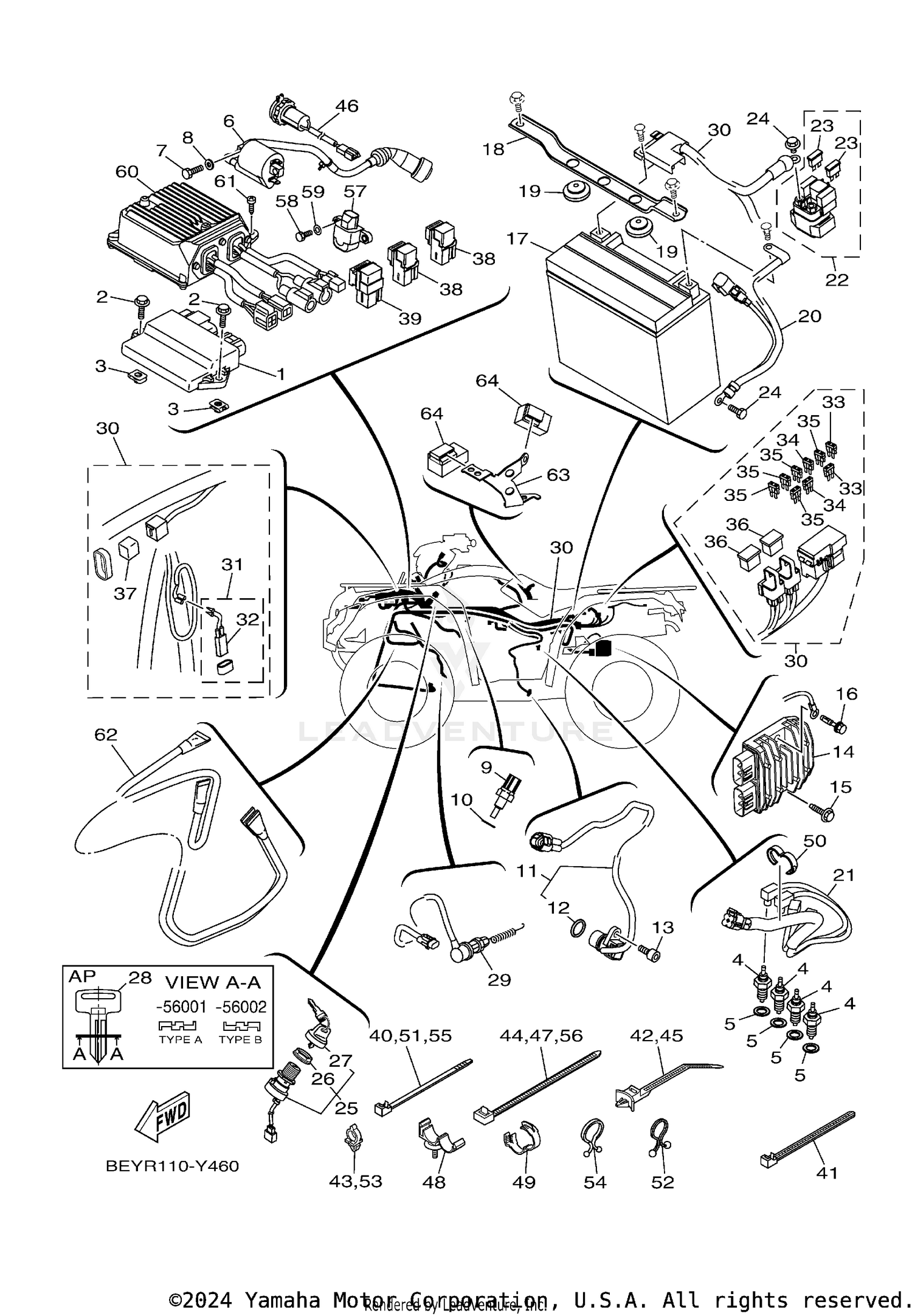

| Ref | Part Number | Description |
|---|
| 1 |
B5R-8591A-21-00 |
ENGINE CONTROL UNI Price: $933.99 |
| 2 |
95E32-06020-00 |
BOLT, FLANGE DEEP RE Price: $0.95 |
| 3 |
90183-06069-00 |
NUT, SPRING This part replaces 90183-06053-00. Price: $7.49 |
| 4 |
3GB-82540-01-00 |
NEUTRAL SWITCH ASSY Price: $63.99 |
| 5 |
90430-10148-00 |
GASKET Price: $5.99 |
| 6 |
BB5-82320-03-00 |
IGNITION COIL ASSY Price: $87.99 |
| 7 |
97017-06020-00 |
BOLT This part replaces 97002-06020-00. Price: $4.06 |
| 8 |
92990-06600-00 |
WASHER, PLATE This part replaces 92902-06600-00. Price: $2.85 |
| 9 |
52B-H3591-00-00 |
THERMO UNIT This part replaces 4P9-83591-00-00. Price: $37.99 |
| 10 |
90430-10004-00 |
GASKET Price: $7.49 |
| 11 |
3C2-83755-11-00 |
SENSOR, SPEED Price: $140.99 |
| 12 |
4D9-81168-00-00 |
O-RING Price: $7.49 |
| 13 |
91317-06016-00 |
BOLT (4MY) This part replaces 90110-06001-00. Price: $1.25 |
| 14 |
1D7-81960-11-00 |
RECTIFIER & REGULATOR ASSY This part replaces 1D7-81960-10-00. Price: $267.99 |
| 15 |
90105-06833-00 |
BOLT, FLANGE Price: $2.30 |
| 16 |
90109-06865-00 |
BOLT Price: $0.85 |
| 17 |
YTX-20LBS-00-00 |
YTX20LBS YUASA BATT Price: $165.99 |
| 18 |
5ND-H2128-02-00 |
BRACKET, BATTERY Price: $7.49 |
| 19 |
371-82121-00-00 |
PAD, BATTERY Price: $9.99 |
| 20 |
BB5-82116-00-00 |
WIRE, MINUS LEAD Price: $33.99 |
| 21 |
5ND-82541-01-00 |
WIRE, LEAD Price: $48.99 |
| 22 |
5B4-81940-00-00 |
STARTER RELAY ASSY (RC19-080A) Price: $110.99 |
| 23 |
42X-82151-00-00 |
FUSE (10A-BL) Price: $4.70 |
| 24 |
95022-06008-00 |
BOLT, FLANGE Price: $9.49 |
| 25 |
28P-82510-02-00 |
MAIN SWITCH ASSY This part replaces 28P-82510-01-00. Price: $75.99 |
| 26 |
3HN-82569-00-00 |
NUT, MAIN SWITCH Price: $5.99 |
| 27 |
3HN-82579-00-00 |
CAP, KEY Price: $15.49 |
| 29 |
BB5-82530-01-00 |
STOP SWITCH ASSY Price: $45.99 |
| 30 |
B5R-82590-10-00 |
WIRE HARNESS ASSY Price: $881.99 |
| 31 |
5GT-82180-00-00 |
CIRCUIT BREAKER ASSY This part replaces 4GB-82180-00-00. Price: $35.99 |
| 32 |
4GB-82560-00-00 |
THERMO SWITCH ASSY Price: $42.99 |
| 33 |
67F-82151-50-00 |
FUSE (15A) This part replaces 5JJ-82151-10-00. Price: $4.05 |
| 34 |
5JJ-82151-20-00 |
FUSE (20A-BL) Price: $8.49 |
| 35 |
67F-82151-40-00 |
FUSE (10A) This part replaces 5JJ-82151-30-00. Price: $7.10 |
| 36 |
JR9-82151-00-00 |
SLOW BLOW FUSE This part replaces 5PS-82151-00-00. Price: $13.49 |
| 37 |
3WP-81980-00-00 |
DIODE ASSY Price: $24.99 |
| 38 |
8DM-81950-11-00 |
RELAY ASSY (8DM-11) Price: $33.99 |
| 39 |
5DM-81950-01-00 |
RELAY ASSY (G8HN-1C4T-DJ-Y52) Price: $31.99 |
| 42 |
90464-38800-00 |
CLAMP Price: $6.49 |
| 43 |
90464-12830-00 |
CLAMP This part replaces 90464-10833-00. Price: $1.60 |
| 44 |
90464-48800-00 |
CLAMP Price: $4.90 |
| 45 |
90464-38800-00 |
CLAMP Price: $6.49 |
| 46 |
1HP-H254B-10-00 |
TERMINAL COMP. Price: $20.99 |
| 47 |
90464-48800-00 |
CLAMP Price: $4.90 |
| 49 |
90464-28003-00 |
CLAMP Price: $4.46 |
| 50 |
90464-16001-00 |
CLAMP Price: $2.39 |
| 52 |
90464-25267-00 |
CLAMP This part replaces 341-82594-00-00. Price: $8.49 |
| 53 |
90464-12830-00 |
CLAMP This part replaces 90464-10833-00. Price: $1.60 |
| 54 |
90464-37257-00 |
CLAMP Price: $2.40 |
| 56 |
90464-48800-00 |
CLAMP Price: $4.90 |
| 57 |
3B4-82576-10-00 |
SENSOR, LEAN ANGLE Price: $64.99 |
| 58 |
97095-05016-00 |
BOLT This part replaces 97002-05016-00. Price: $1.75 |
| 59 |
92990-05600-00 |
WASHER, PLATE This part replaces 92902-05600-00. Price: $0.80 |
| 60 |
B5R-859A0-00-00 |
POWER STRG. CONT. UN This part replaces B5R-859A0-01-00. Price: $945.99 |
| 61 |
95E32-06020-00 |
BOLT, FLANGE DEEP RE Price: $0.95 |
| 62 |
BB5-82309-00-00 |
WIRE, SUB LEAD Price: $101.99 |
| 63 |
B5R-H331M-00-00 |
HOLDER Price: $0.80 |
