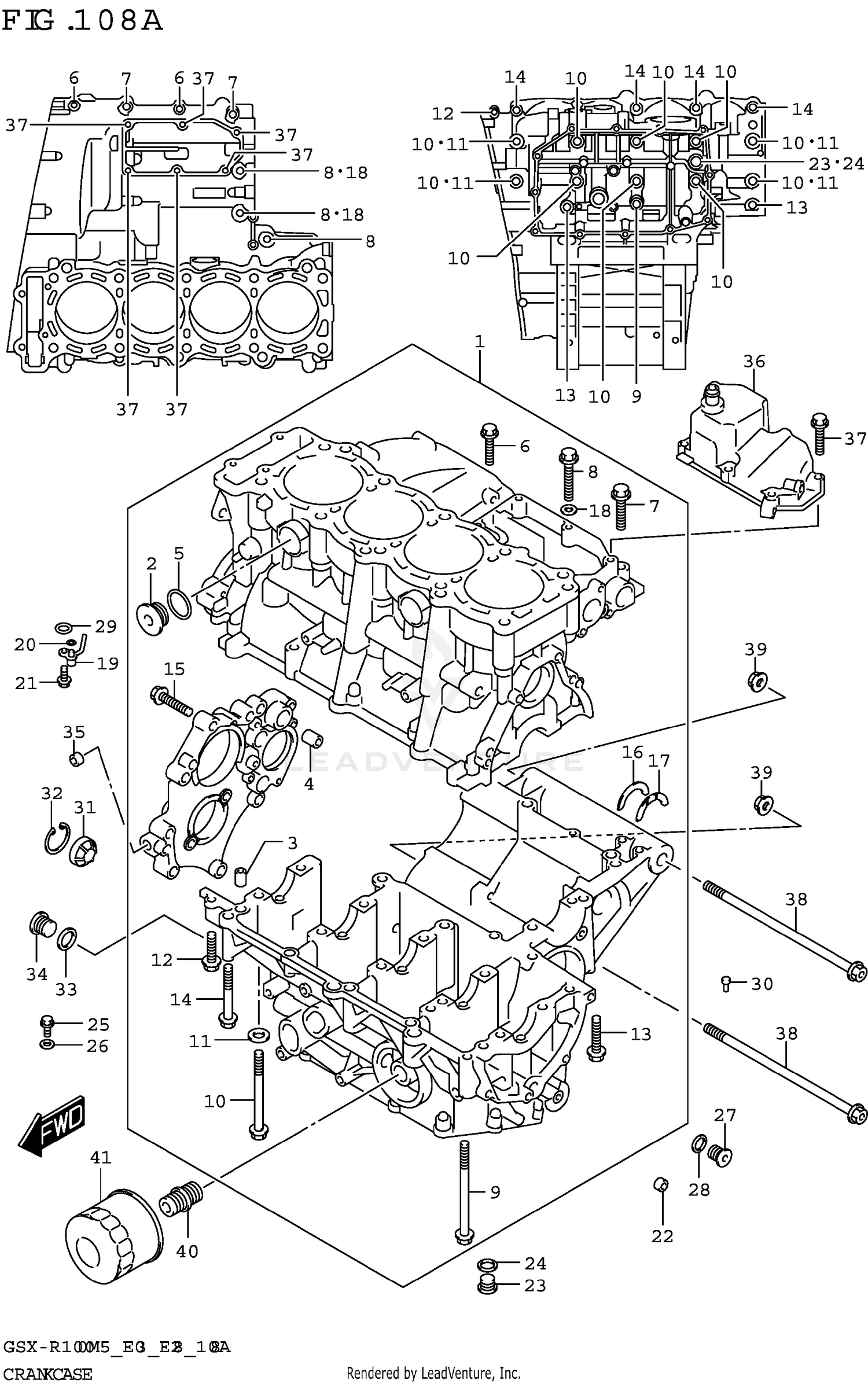

CRANKCASE
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11301-17810 | CRANKCASE SET Price: $2,903.69 |
| 6 | 01547-0635A | BOLT Price: $2.79 |
| 7 | 01550-0840A | BOLT Price: $3.72 |
| 12 | 01547-0635A | BOLT Price: $2.79 |
| 13 | 01550-0840A | BOLT Price: $3.72 |
| 15 | 07120-0835A | BOLT Price: $4.39 |
| 18 | 09168-08016 | GASKET (8.2X14X1) Price: $1.99 |
| 19 | 11390-17K00 | JET,PISTON COOLING Price: $54.27 |
| 20 | 09280-04004 | O-RING (D:1.2,ID:4) Price: $1.99 |
| 21 | 09106-06075 | BOLT (6X12) Price: $3.02 |
| 22 | 09246-04009 | PLUG This part replaces 09246-05006. Price: $4.47 |
| 23 | 09248-12004 | PLUG,L:12 (L:12) Price: $8.36 |
| 24 | 09168-12002 | GASKET (12.1X16.2X3.7) Price: $1.92 |
| 25 | 01547-0612A | BOLT Price: $2.45 |
| 26 | 09168-06018 | GASKET (6.2X13X1.2) Price: $1.99 |
| 27 | 09248-10010 | PLUG (10X10) Price: $5.16 |
| 28 | 09168-10002 | GASKET (10X14X3.6) Price: $2.22 |
| 29 | 09280-08012 | O-RING (D:1.9,ID:7.8) Price: $4.48 |
| 30 | 09493-28012 | JET (#140) Price: $17.72 |
| 32 | 08331-4130A | CIRCLIP Price: $2.85 |
| 33 | 09168-16002 | GASKET (16X22X2) Price: $2.30 |
| 34 | 09248-16013 | PLUG (16X12) Price: $5.95 |
| 35 | 09246-04009 | PLUG This part replaces 09246-05006. Price: $4.47 |
| 36 | 11380-17K00 | COVER,BREATHER Price: $161.59 |
| 37 | 01547-0630A | BOLT Price: $2.79 |
| 38 | 09103-12078 | BOLT (12X275) Price: $20.18 |
| 39 | 09159-12081 | NUT Price: $7.59 |
| 40 | 16591-06B01 | UNION,OIL STAND Price: $8.70 |
