Parts Catalog

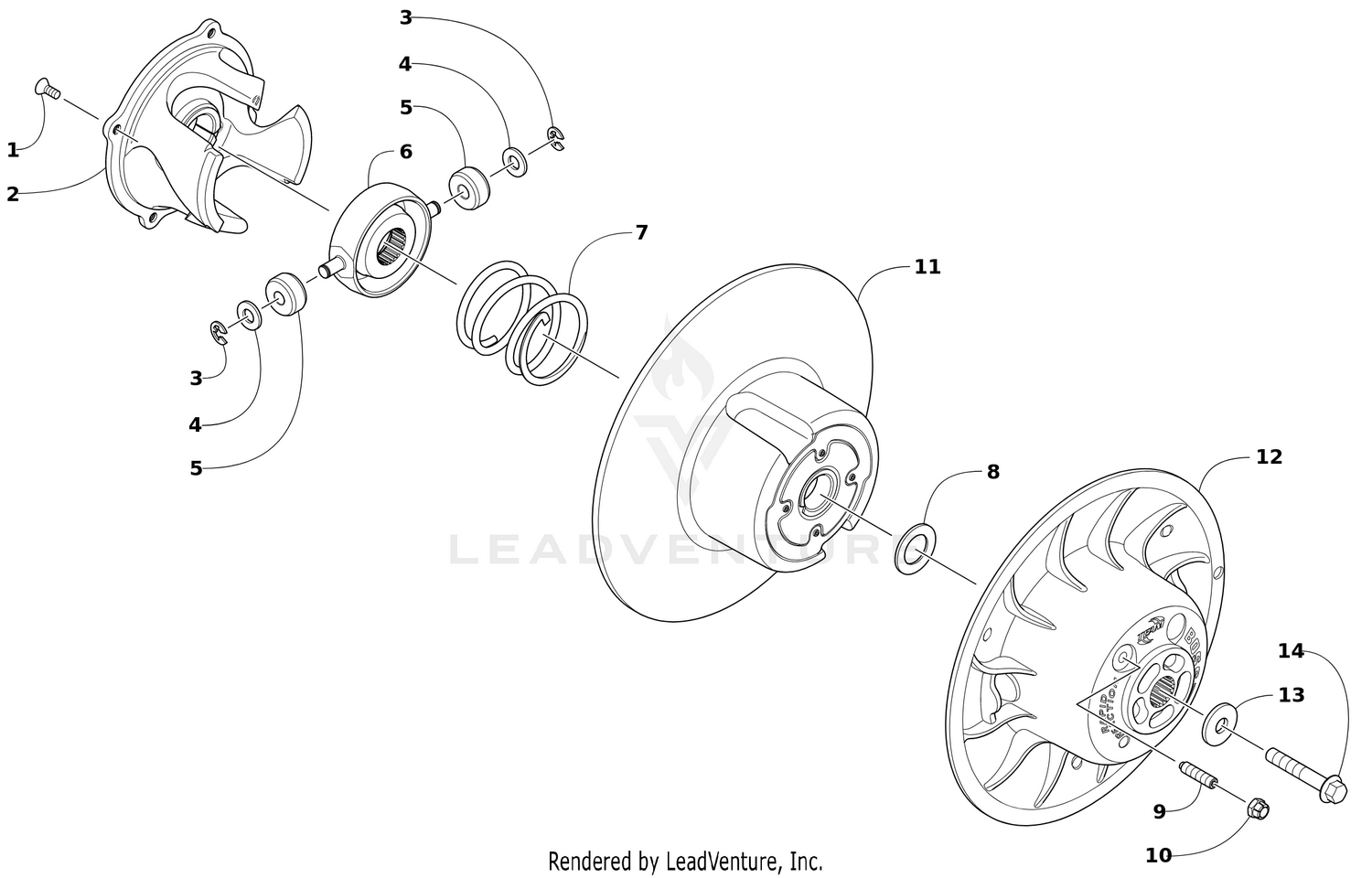

DRIVEN CLUTCH [106172]

Parts (14)

Ref	Part Number	Description
1	0648-875	Screw, Machine Price: $7.23
2	0648-870	Cam, Driven Price: $230.95
3	0648-701	Ring, Retaining Price: $7.23
4	0648-700	Washer, Thrust Price: $11.95
5	0648-842	Roller, Clutch Price: $20.56
6	0648-841	Spider Price: $53.95
7	0648-860	Spring, Driven Clutch Price: $63.95
8	0648-849	Washer, Shim (.030 in.) Price: $2.30
8	0648-850	Washer, Shim (.090 in.) Price: $5.09
9	0648-845	Screw, Set - Adjuster Price: $15.71
10	0648-846	Nut, Lock - Adjuster Price: $16.92
11	0748-776	Sheave, Moveable Price: $226.95
12	0748-030	Sheave, Stationary Price: $282.95
13	2623-120	Washer, Belleville Price: $5.44
