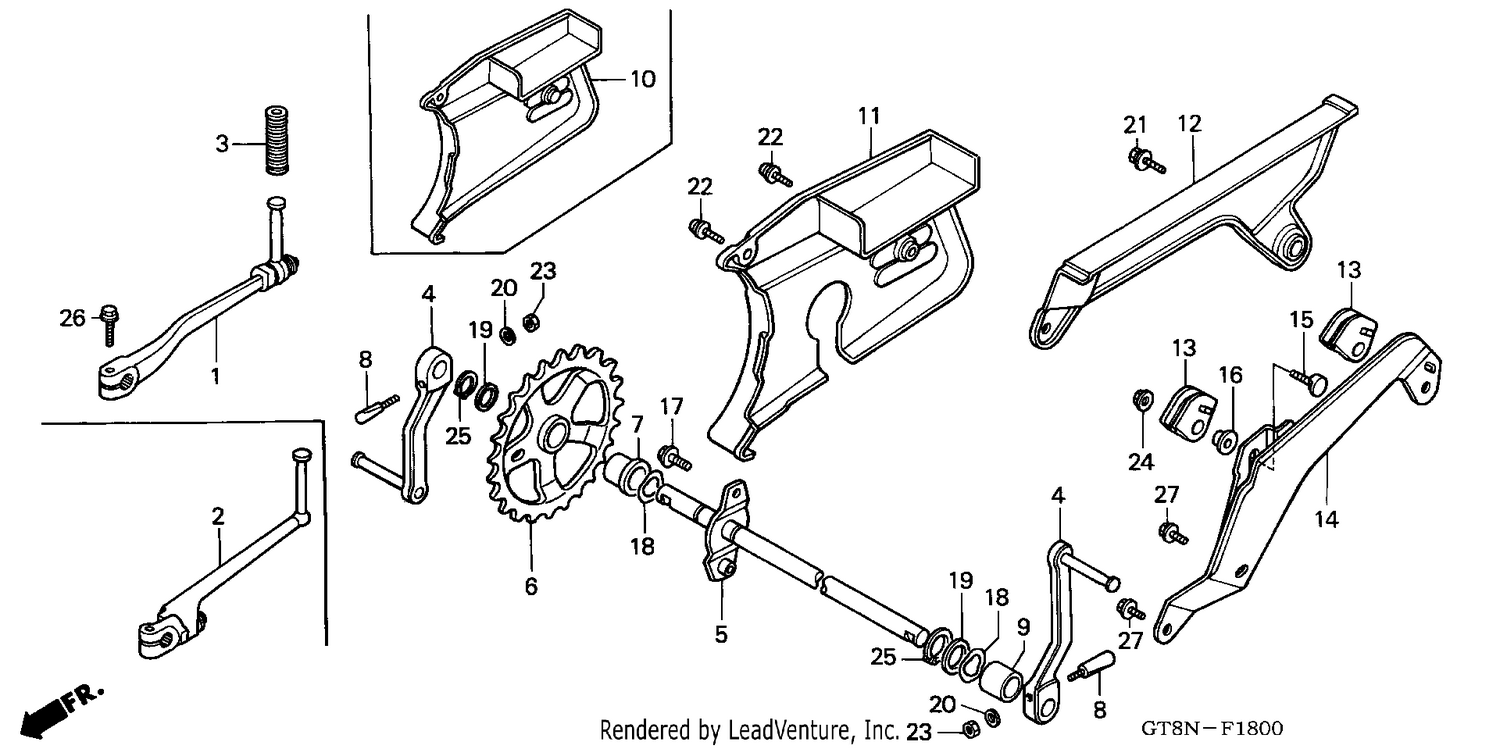

| Ref | Part Number | Description |
|---|
| 2 |
28300GT8710 |
ARM ASSY., KICK STARTER Price: Call Us |
| 3 |
28311GN2930 |
RUBBER, KICK STARTER Price: Call Us |
| 4 |
40210GT8710 |
ARM ASSY., CRANK Price: Call Us |
| 5 |
40230GT8710 |
DRIVESHAFT COMP. Price: Call Us |
| 6 |
40233GT8710 |
SPROCKET, DRIVE (28T) Price: Call Us |
| 7 |
40234197000 |
BUSH, DRIVESHAFT Price: Call Us |
| 8 |
40235093000 |
PIN, CRANK ARM SETTING Price: Call Us |
| 9 |
40239GT8710 |
BUSH, L. DRIVESHAFT Price: Call Us |
| 11 |
40510GT8710ZA |
COVER, DRIVE SPROCKET *NH261* Price: Call Us |
| 12 |
40520GT8710 |
CASE, CHAIN Price: Call Us |
| 13 |
40542GT8710 |
SLIDER, CHAIN Price: Call Us |
| 14 |
40546GT8710 |
TENSIONER, CHAIN Price: Call Us |
| 15 |
40557GT8710 |
BOLT, TENSIONER ADJUSTING Price: Call Us |
| 16 |
40558GT8710 |
COLLAR, SLIDER Price: Call Us |
| 17 |
90103GT8710 |
BOLT, FLANGE, 8X16 Price: Call Us |
| 18 |
90505KE5000 |
WASHER, WAVE, 17MM Price: Call Us |
| 19 |
90541KK6000 |
WASHER, 16MM Price: Call Us |
| 20 |
90545044000 |
WASHER, CRANK ARM Price: Call Us |
| 21 |
934040601207 |
BOLT-WASHER, 6X12 Price: Call Us |
| 22 |
938910502007 |
SCREW-WASHER, 5X20 Price: Call Us |
| 23 |
94001060000S |
NUT, HEX., 6MM Price: Call Us |
| 24 |
9405008070 |
NUT, FLANGE, 8MM Price: Call Us |
| 25 |
9451116000 |
CIRCLIP, EXTERNAL, 16MM Price: Call Us |
| 26 |
957000602207 |
BOLT, FLANGE, 6X22 Price: Call Us |
