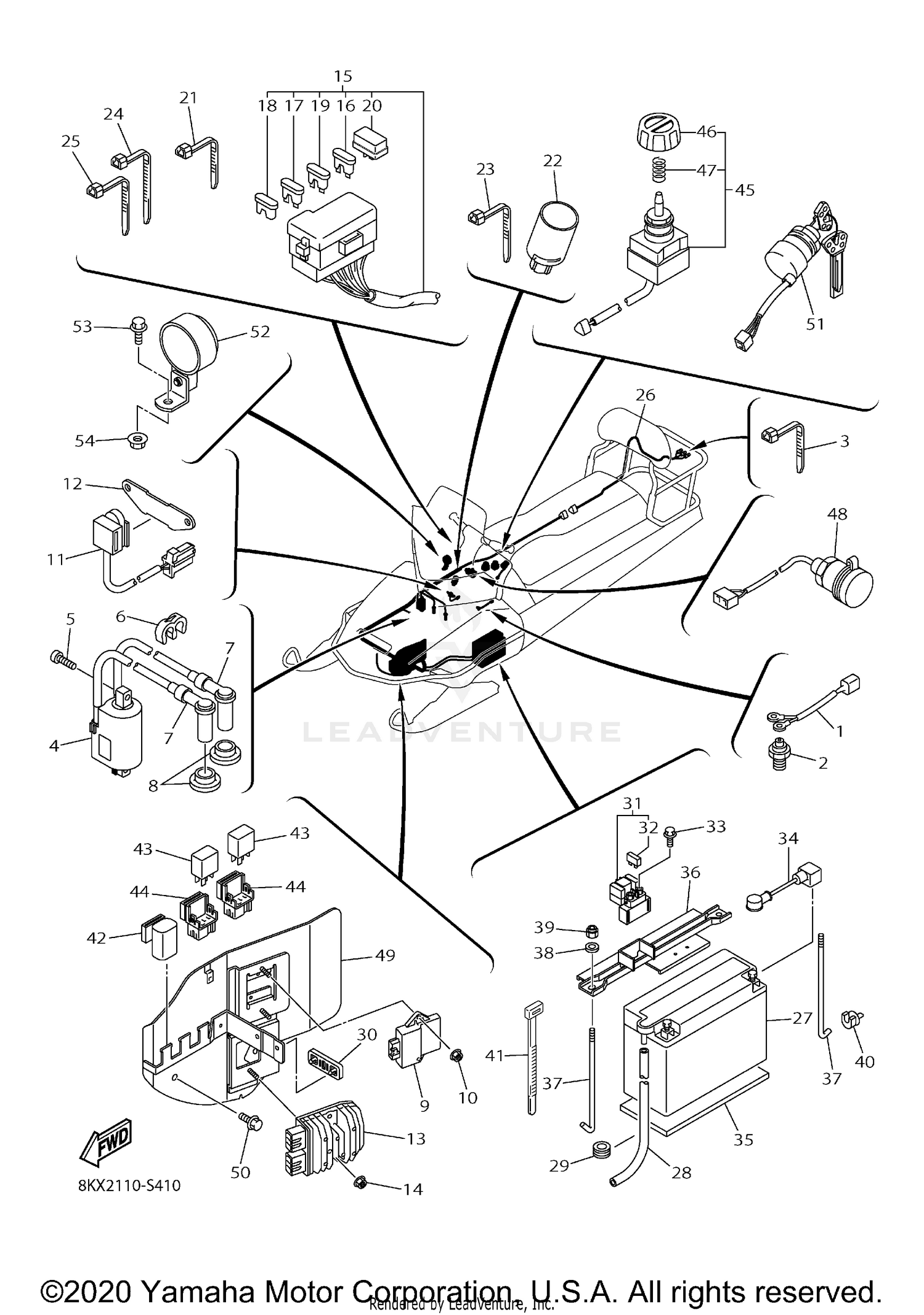

| Ref | Part Number | Description |
|---|
| 1 |
87L-82318-01-00 |
WIRE, SUB-LEAD This part replaces 87L-82318-00-00. Price: $15.49 |
| 2 |
4KD-82540-00-00 |
NEUTRAL SWITCH ASSY Price: $63.99 |
| 4 |
8KX-82310-01-00 |
IGNITION COIL ASSY Price: $71.99 |
| 5 |
91317-06025-00 |
BOLT This part replaces 91312-06025-00. Price: $2.65 |
| 6 |
90464-60067-00 |
CLAMP Price: $1.75 |
| 7 |
85G-82370-20-00 |
PLUG CAP ASSEMBLY This part replaces 8K1-82370-20-00. Price: $37.99 |
| 8 |
8G5-82372-00-00 |
SEAL, PLUG CAP Price: $6.49 |
| 9 |
8KX-85540-00-00 |
C.D.I. UNIT ASSY Price: $968.99 |
| 10 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 11 |
5FU-82560-50-00 |
THERMO SWITCH ASSY Price: $66.99 |
| 12 |
8JD-83773-00-00 |
BRACKET, SWITCH Price: $41.99 |
| 13 |
27D-81960-00-00 |
RECTIFIER & REGULATOR ASSY Price: $342.99 |
| 14 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 15 |
8KX-82590-10-00 |
WIRE HARNESS ASSY Price: $508.99 |
| 16 |
67F-82151-30-00 |
FUSE (3A) This part replaces 5JJ-82151-50-00. Price: $5.49 |
| 17 |
5JJ-82151-00-00 |
FUSE (7.5A-BL) Price: $7.49 |
| 18 |
67F-82151-50-00 |
FUSE (15A) This part replaces 5JJ-82151-10-00. Price: $4.05 |
| 19 |
5JJ-82151-20-00 |
FUSE (20A-BL) Price: $8.49 |
| 20 |
4WA-81980-00-00 |
DIODE ASSY Price: $32.99 |
| 22 |
8GL-8252U-00-00 |
COVER Price: $10.49 |
| 24 |
90464-15195-00 |
CLAMP Price: $4.41 |
| 26 |
8KX-84717-00-00 |
CORD, TAILLIGHT Price: $33.99 |
| 27 |
YB1-6ALA2-00-00 |
YB16ALA2 YUASA BATT This part replaces 5E3-82110-81-00. Price: $152.99 |
| 28 |
8AC-8235W-00-00 |
PIPE Price: $7.49 |
| 29 |
90480-12X00-00 |
GROMMET This part replaces 90480-12314-00. Price: $1.25 |
| 30 |
8FA-83614-00-00 |
BRACKET Price: $4.85 |
| 31 |
3D7-81940-00-00 |
STARTER RELAY ASSY (RC19-076A) Price: $106.99 |
| 32 |
1AE-82151-00-00 |
FUSE (30A-BL) Price: $8.49 |
| 33 |
95022-06008-00 |
BOLT, FLANGE Price: $9.49 |
| 34 |
8KX-82115-00-00 |
WIRE, PLUS LEAD Price: $18.49 |
| 35 |
84N-82122-00-00 |
SEAT, BATTERY Price: $5.49 |
| 36 |
8KX-82136-00-00 |
PLATE, BATTERY FITTING Price: $45.99 |
| 37 |
8Y7-82133-00-00 |
SCREW, FITTING Price: $14.49 |
| 38 |
92990-06600-00 |
WASHER, PLATE This part replaces 92902-06600-00. Price: $2.85 |
| 39 |
95707-06300-00 |
NUT, NYLON This part replaces 95702-06300-00. Price: $3.75 |
| 40 |
8AC-82355-00-00 |
GROMMET Price: $14.49 |
| 41 |
437-83936-01-00 |
BAND, SWITCH CORD Price: $8.49 |
| 42 |
5DM-81950-01-00 |
RELAY ASSY (G8HN-1C4T-DJ-Y52) This part replaces 5DM-81950-00-00. Price: $31.99 |
| 43 |
8HG-81951-10-00 |
RELAY ASSY (8HG-10) Price: $17.49 |
| 44 |
8HG-81952-00-00 |
HOLDER, RELAY Price: $3.95 |
| 45 |
1XD-87280-01-00 |
SWITCH, SELECT This part replaces 1XD-87280-00-00. Price: $106.99 |
| 46 |
1XD-87285-00-00 |
KNOB, SELECT SWITCH Price: $14.49 |
| 47 |
1XD-87288-00-00 |
SPRING Price: $1.90 |
| 48 |
8FP-8254B-00-00 |
TERMINAL COMP. Price: $172.99 |
| 49 |
8KX-85991-01-00 |
BRACKET, UNIT Price: $84.99 |
| 50 |
95817-08012-00 |
BOLT, FLANGE This part replaces 95812-08012-00. Price: $5.49 |
| 51 |
8HV-82510-00-00 |
MAIN SWITCH ASSY Price: $113.99 |
| 52 |
8KX-83383-00-00 |
BUZZER Price: $69.99 |
| 53 |
95817-06016-00 |
BOLT, FLANGE This part replaces 95822-06016-00. Price: $1.95 |
