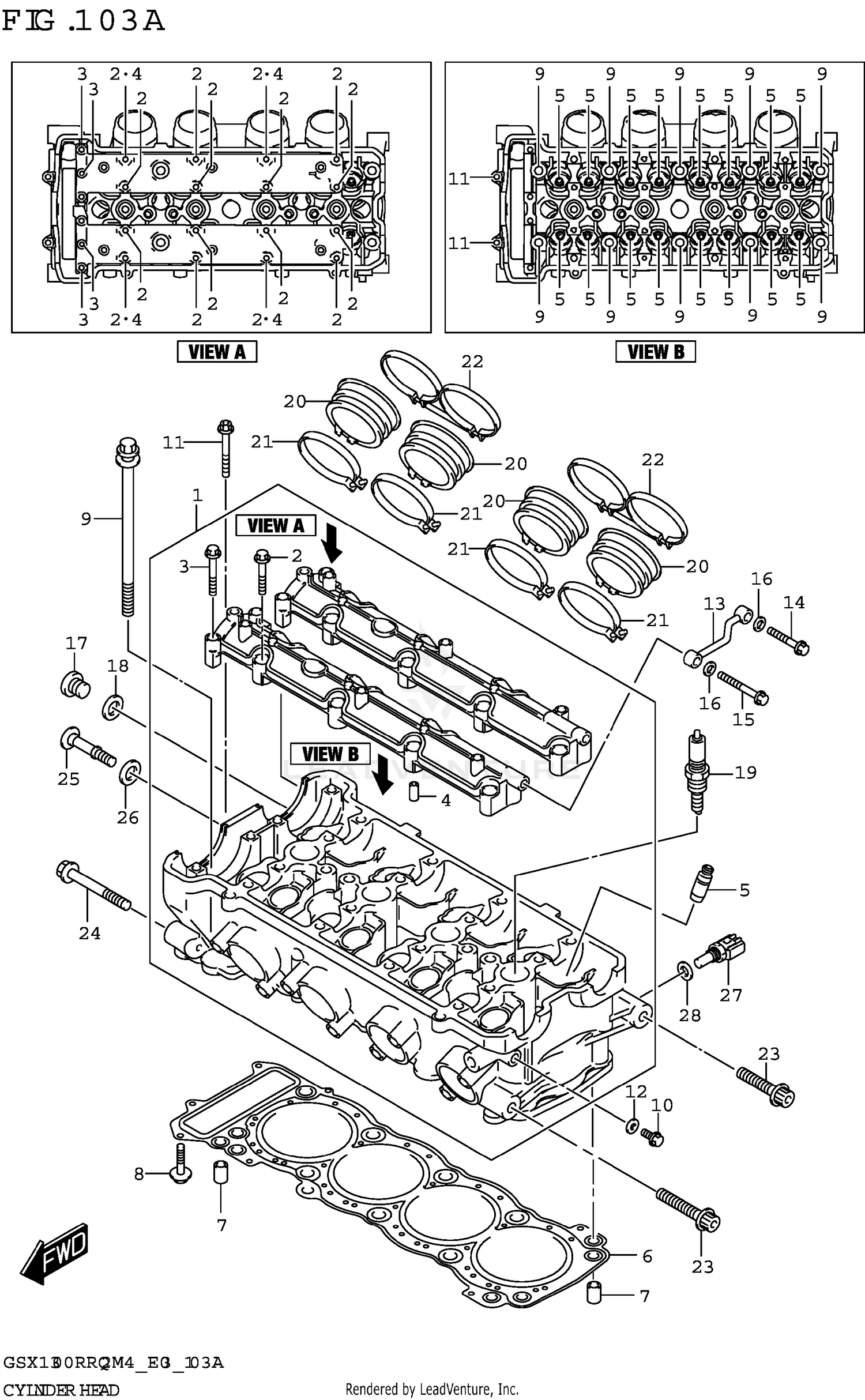

CYLINDER HEAD
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11100-10L00 | HEAD ASSY,CYLINDER Price: $2,116.92 |
| 7 | 04211-11169 | PIN Price: $2.15 |
| 8 | 01550-0630A | BOLT (L:30) Price: $2.79 |
| 9 | 11117-15H00 | BOLT,CYLINDER HEAD (L180) Price: $22.73 |
| 10 | 01550-0612A | BOLT Price: $2.37 |
| 11 | 07120-0655B | BOLT Price: $4.31 |
| 12 | 09168-06023 | GASKET (5.8X13X1.2) Price: $2.45 |
| 13 | 11131-33E01 | PIPE,OIL Price: $50.45 |
| 14 | 01550-0635A | BOLT Price: $2.79 |
| 15 | 01550-0645A | BOLT (6X45) Price: $2.93 |
| 16 | 08322-0106A | WASHER Price: $2.22 |
| 17 | 09248-16012 | PLUG (16X8) Price: $5.66 |
| 18 | 09168-16009 | GASKET (16X22X0.8) Price: $3.02 |
| 20 | 13111-10L00 | PIPE,INTAKE Price: $11.98 |
| 21 | 09402-60208 | CLAMP Price: $6.23 |
| 22 | 13170-08J00 | CLAMP,INTAKE PIPE Price: $31.81 |
| 23 | 09106-10069 | BOLT (10X45) Price: $5.16 |
| 24 | 09106-10084 | BOLT (10X60) Price: $6.80 |
| 25 | 11161-33E00 | BOLT,CYL HEAD SIDE FACE Price: $12.58 |
| 26 | 11191-13E00 | WASHER,HEAD COVER Price: $5.61 |
| 27 | 13650-49X00 | SENSOR,TEMP Price: $111.41 |
