Parts Catalog

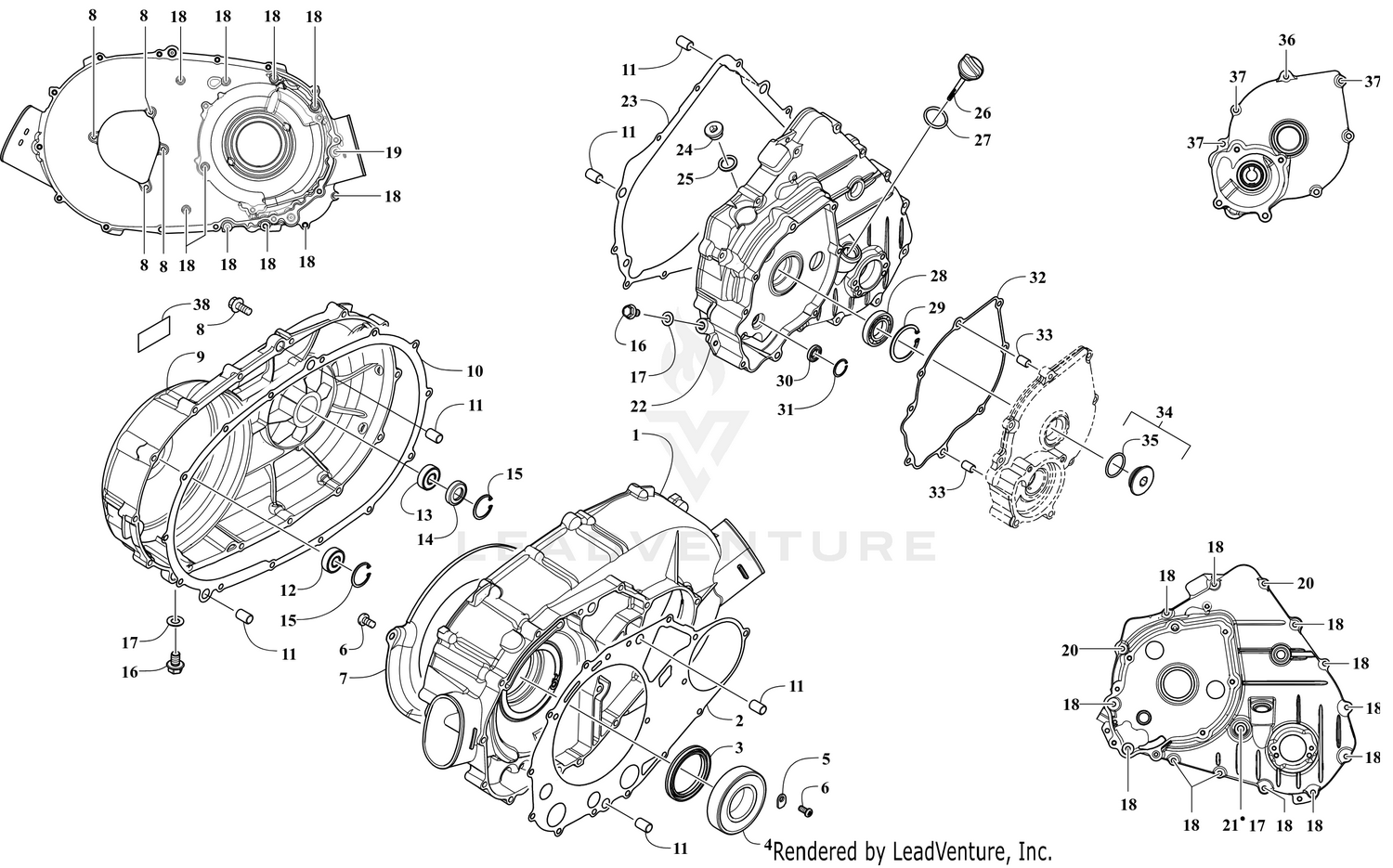

CLUTCH/V-BELT/MAGNETO COVER ASSEMBLY [304009]

Parts (35)

Ref	Part Number	Description
1	0806-026	COVER, CLUTCH Price: $468.95
2	0830-055	GASKET Price: $31.95
3	0830-157	SEAL,CLUTCH HOUSING (RIGHT) Price: $85.95
4	3313-886	BEARING 6208LU 40*80*18 Price: $35.95
5	0822-104	RETAINER,BEARING Price: $2.98
6	0826-144	SCREW,PPH,M6X1X12 Price: $1.56
7	0806-103	PLATE AIR INTAKE Price: $40.95
8	3303-386	BOLT FLANGE SH 6*35 Price: $2.13
9	3307-251	COVER R COVER Price: $253.95
10	0830-056	GASKET, V-BELT COVER Price: $53.95
11	0829-046	PIN,DOWEL Price: $3.55
12	0832-023	BEARING,CONRAD-6201 Price: $21.39
13	3307-253	BRG BALL RADIAL 6201 Price: $9.35
14	3307-755	OIL SEAL 12X32X7 Price: $5.02
15	3303-347	CIR CLIP IN 32 Price: $2.72
16	3304-544	BOLT FLANGE 8*12 Price: $1.85
17	3303-591	WASHER 8MM Price: $0.85
18	3307-053	BOLT FLANGE SH 6*40 Price: $3.14
19	3307-054	Screw, Cap Price: Call Us
20	3307-062	BOLT FLANGE SH 6*50 Price: $5.80
21	3307-060	BOLT FLANGE 8*140 Price: $7.85
22	0806-122	COVER,LEFT CRANK CASE Price: $478.95
23	0830-057	GASKET, MAGNETO COVER Price: $57.95
24	0806-099	PLUG,TDC CHECK Price: $14.08
25	0830-141	WASHER,CRUSH 16 X 22 X 2 Price: $1.72
27	3304-102	O-RING 18*3 Price: $1.85
28	0832-053	BEARING,CONRAD S/R-47 X 25 X 8 Price: $68.95
29	3305-943	CIR CLIP IN 47 Price: $5.50
30	3313-894	BEARING BALL RADIAL 6800 Price: $7.08
31	3305-942	CIR CLIP IN 19 Price: $4.23
32	0830-206	GASKET,STARTING COVER Price: $18.52
33	3301-716	DOWEL PIN Price: $3.47
35	0835-016	O-RING 27.4*2.4 Price: $1.56
36	3307-055	BOLT FLANGE SH 6*30 (G) Price: $1.08
37	3304-189	BOLT FLANGE SH 6*20 Price: $0.93
