Parts Catalog

⚓ Флот 📚 Manuals Replacements 38,231,304 parts

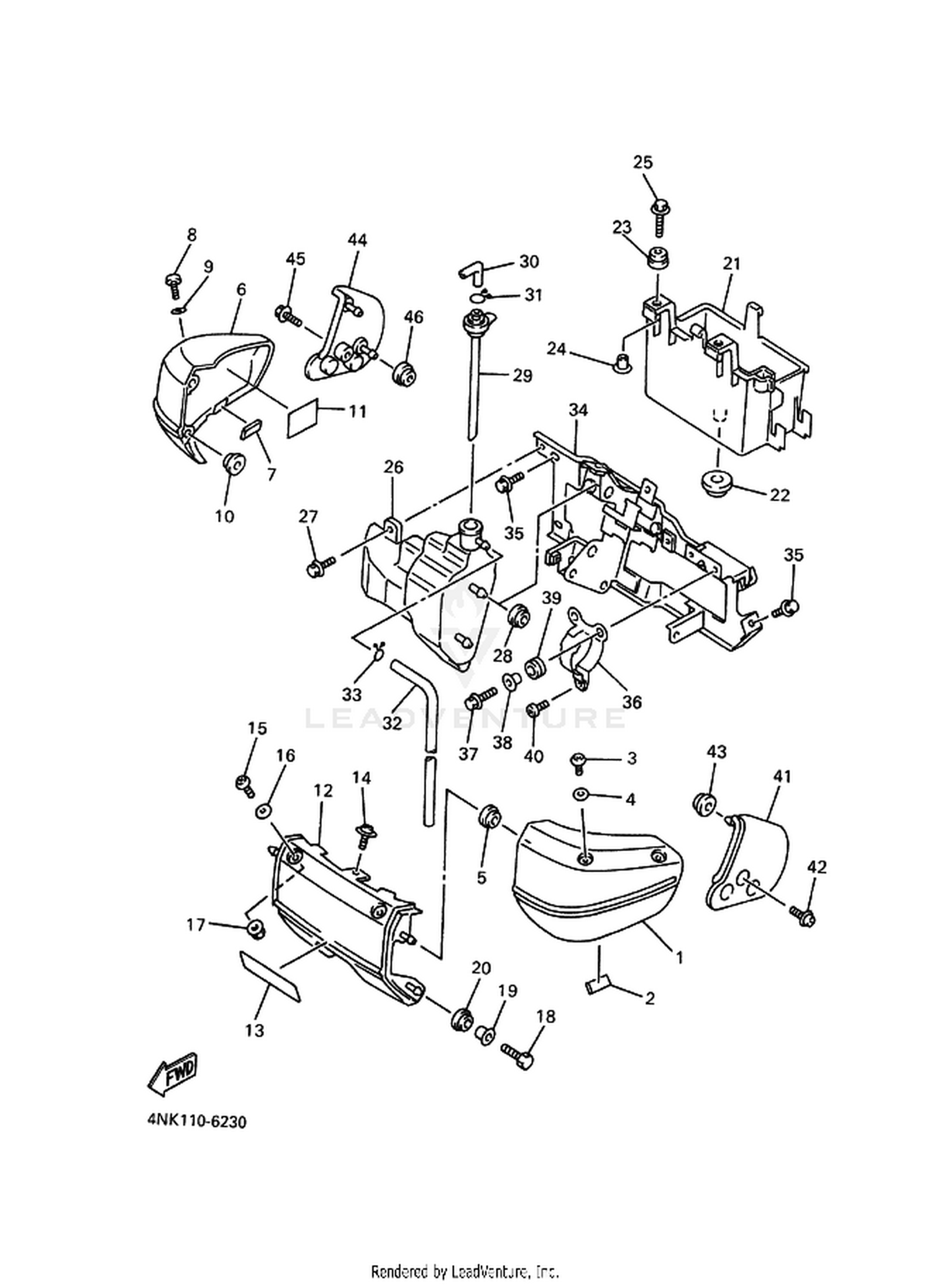

23 ??????

23 ??????

Parts (42)

RefPart NumberDescription
2 51Y-21639-00 DAMPER 2 Price: Call Us
3 90149-06298 SCREW Price: Call Us
4 90202-06172 WASHER, PLATE Price: Call Us
5 90480-13567 GROMMET Price: Call Us
7 51Y-21639-00 DAMPER 2 Price: Call Us
8 90149-06298 SCREW Price: Call Us
9 90202-06172 WASHER, PLATE Price: Call Us
10 90480-13567 GROMMET Price: Call Us
11 1JK-21735-00 SEAL 2 Price: Call Us
13 52W-2117G-00 PROTECTOR Price: Call Us
14 90159-06084 SCREW, WITH WASHER Price: Call Us
15 90149-06298 SCREW Price: Call Us
16 90202-06172 WASHER, PLATE Price: Call Us
17 95707-06500 NUT, FLANGE Price: Call Us
18 97007-06020 BOLT Price: Call Us
19 90387-067N5 COLLAR Price: Call Us
20 90480-13398 GROMMET Price: Call Us
21 4NK-2177G-00 BOX, BATTERY Price: Call Us
22 90480-20384 GROMMET Price: Call Us
23 90480-13398 GROMMET Price: Call Us
24 90387-067N5 COLLAR Price: Call Us
25 90119-06096 BOLT, WITH WASHER Price: Call Us
26 4NK-21871-00 TANK, RECOVERY Price: Call Us
27 90119-06044 BOLT, WITH WASHER Price: Call Us
28 90480-13567 GROMMET Price: Call Us
29 4NK-21875-00 CAP Price: Call Us
30 26H-21828-00 ELBOW Price: Call Us
31 90467-11019 CLIP Price: Call Us
32 90445-09361 HOSE (L545) Price: Call Us
33 90467-09006 CLIP Price: Call Us
34 4NK-21243-00 PLATE, BRIDGE Price: Call Us
35 95817-06010 BOLT, FLANGE Price: Call Us
36 3CV-24491-10 BRACKET, FUEL PUMP Price: Call Us
37 95817-06016 BOLT, FLANGE Price: Call Us
38 90387-062L2 COLLAR Price: Call Us
39 90480-13163 GROMMET Price: Call Us
40 98907-05010 SCREW, BIND Price: Call Us
41 4NK-21731-00 COVER, SIDE 3 Price: Call Us
42 90159-06071 SCREW, WITH WASHER Price: Call Us
43 90480-13567 GROMMET Price: Call Us
44 4NK-21741-00 COVER, SIDE 4 Price: Call Us
45 90159-06071 SCREW, WITH WASHER Price: Call Us
