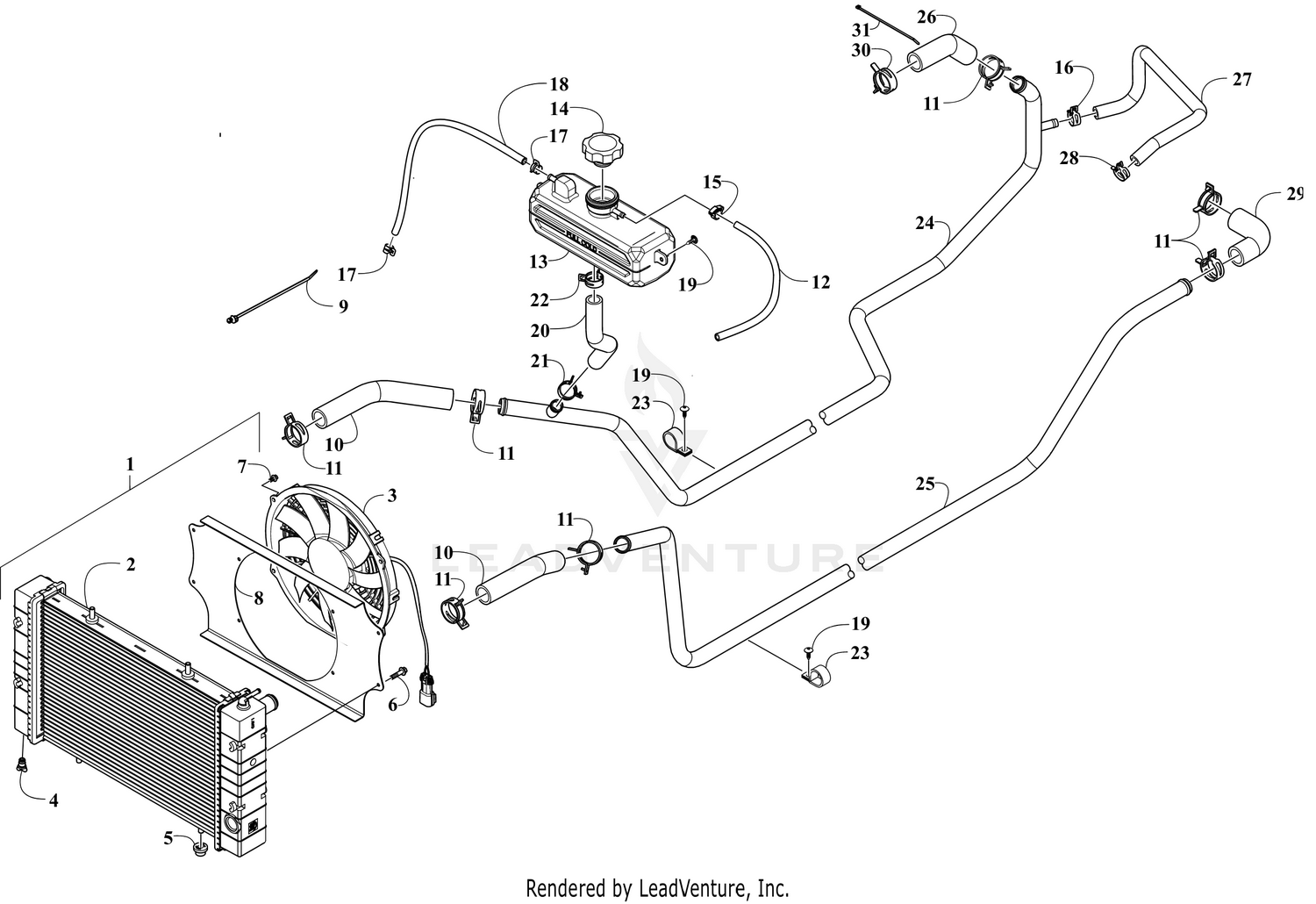

| Ref | Part Number | Description |
| 2 |
0413-387 |
Radiator Price: $324.95 |
| 3 |
0413-449 |
Fan, Assembly Price: $253.95 |
| 4 |
0413-459 |
Plug, Drain Price: $5.65 |
| 5 |
1423-476 |
Grommet Price: $2.18 |
| 6 |
8408-625 |
Screw, Cap Price: $0.59 |
| 7 |
8408-616 |
Screw, Cap Price: $0.59 |
| 8 |
0413-483 |
Shroud, Fan Price: $58.95 |
| 9 |
0623-677 |
Tie, Cable - Push Mount Price: $1.18 |
| 10 |
0410-418 |
Hose, Coolant - Radiator Price: $18.80 |
| 11 |
1623-322 |
Clamp, Hose Price: $5.09 |
| 12 |
0610-011 |
Hose, 25 ft Price: $118.95 |
| 13 |
0413-568 |
Tank, Overflow Price: $74.95 |
| 14 |
4606-209 |
Cap, Coolant Tank Price: $13.94 |
| 15 |
0124-045 |
Clamp, Hose Price: $2.91 |
| 16 |
1623-283 |
Clamp Price: $2.66 |
| 17 |
1623-276 |
Clamp, Hose Price: $5.09 |
| 18 |
0410-422 |
Hose, Bleed Line Price: $9.35 |
| 19 |
2623-163 |
Screw, Self-Tapping Price: $1.45 |
| 20 |
0410-419 |
Hose, Coolant - Fill Price: $18.80 |
| 21 |
1623-289 |
Clamp, Hose Price: $4.23 |
| 22 |
1623-291 |
Clamp, Hose Price: $1.49 |
| 23 |
0423-594 |
Clamp, Routing Price: $0.89 |
| 24 |
0513-104 |
Pipe, Coolant - Thermostat/Radiator Price: $127.95 |
| 25 |
0413-393 |
Pipe, Coolant Price: $77.95 |
| 26 |
0410-426 |
Hose, Coolant - Engine Inlet Price: $21.39 |
| 27 |
0410-427 |
Hose, Bypass Price: $35.95 |
| 28 |
1623-285 |
Clamp, Hose Price: $3.38 |
| 29 |
0410-423 |
Hose, Coolant - Thermostat Outlet Price: $14.08 |
| 30 |
1623-321 |
Clamp, Hose Price: $5.21 |
