| Ref | Part Number | Description |
|---|
| 1 |
30510-HL4-B71 |
COIL, FR. IGNITION Price: $57.09 |
| 2 |
30520-HL4-B71 |
COIL, RR. IGNITION Price: $57.09 |
| 3 |
30700-HL4-A02 |
CAP ASSY. Price: $56.80 |
| 4 |
31400-HL4-B71 |
BASE, BUS BAR Price: $90.00 |
| 5 |
31401-HL4-B71 |
COVER, BUS BAR Price: $181.73 |
| 6 |
31600-HL4-M91 |
REG RECT COMP Price: $119.22 |
| 7 |
31730-MAS-601 |
DIODE ASSY., THREE WAY (SUMITOMO) Price: $13.09 |
| 8 |

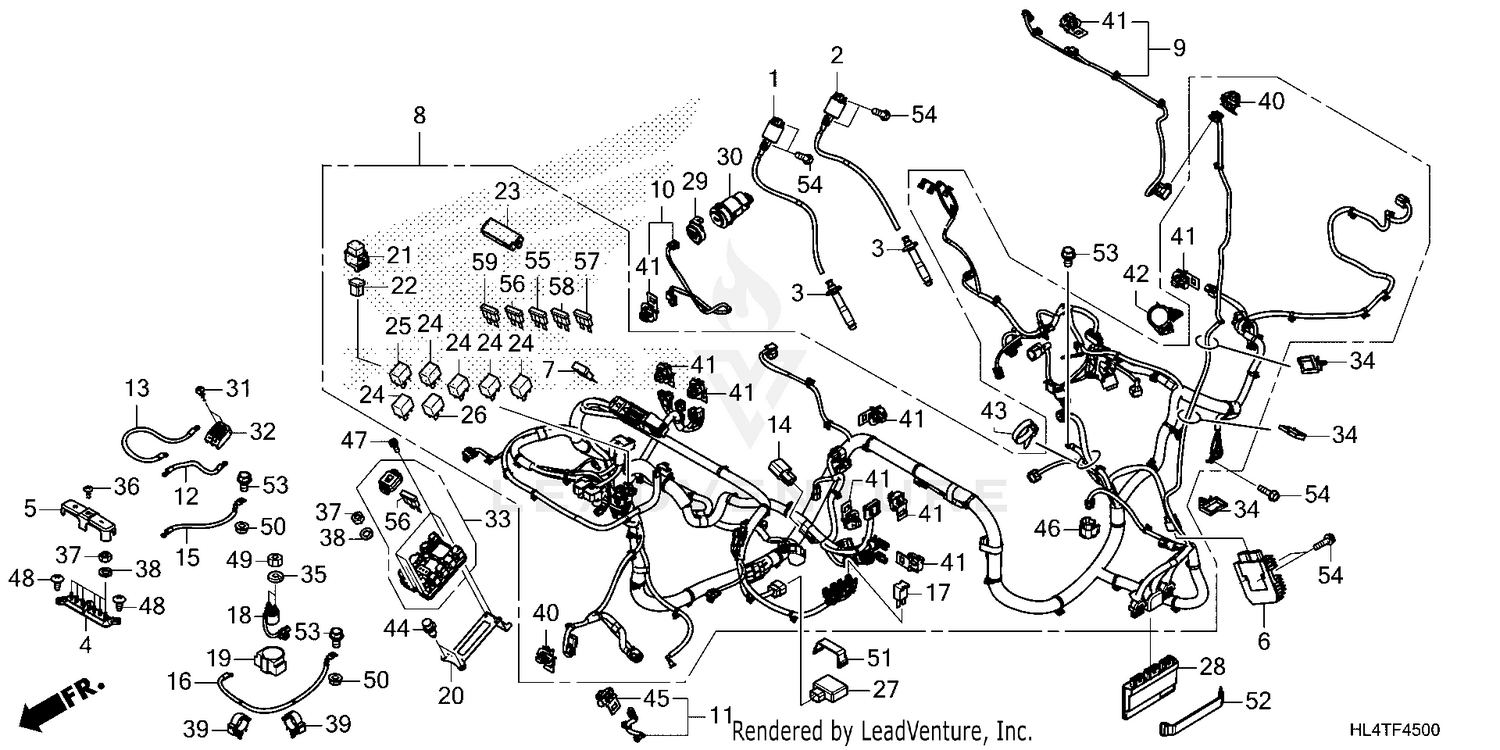

32100-HL4-D70 |
WIRE HARNESS Price: $3,308.80 |
| 9 |
32103-HL4-B70 |
SUB-HARNESS, ROOF Price: $22.55 |
| 10 |
32104-HL4-B70 |
SUB-HARNESS, USB Price: $13.87 |
| 11 |
32106-HL4-A00 |
SUB-HARNESS, FR. DIFFERENTIAL Price: $5.47 |
| 12 |
32106-HL4-B70 |
CABLE Price: $4.76 |
| 13 |
32107-HL4-B70 |
CABLE Price: $1,501.76 |
| 14 |
32107-ZVL-003 |
TERMINATOR ASSY. Price: Call Us |
| 15 |
32110-HL4-B70 |
WIRE BUS BAR Price: $899.35 |
| 16 |
32111-HL4-B70 |
WIRE BUS BAR Price: $34.71 |
| 17 |
32146-SH3-003 |
CONNECTOR, DIODE (2P) Price: $22.28 |
| 18 |
35850-HL4-A01 |
SWITCH ASSY., STARTER MAGNETIC Price: $57.04 |
| 19 |
35856-HP5-600 |
RUBBER, MAGNETIC SHOCK (Honda Code 8611063) Price: $5.42 |
| 20 |
38201-HL4-B70 |
STAY, FUSE BOX Price: $5.45 |
| 21 |
38205-HP0-B11 |
COVER ASSY., FUSE (40A) Price: $5.69 |
| 22 |
38211-SNA-A21 |
FUSE, BLOCK (40A) Price: $5.43 |
| 23 |
38252-MFJ-D01 |
COVER (UPPER) Price: $13.62 |
| 24 |
38501-MKP-DN1 |
RELAY (MICRO ISO 4P) Price: $5.85 |
| 25 |
38502-MCS-G01 |
RELAY, POWER (MICRO ISO 5P) Price: $12.56 |
| 26 |
38503-MCA-A61 |
RELAY, POWER (MICRO ISO 4P) Price: $17.69 |
| 27 |
38710-HL6-A01 |
CONTROL UNIT, FAN Price: $77.29 |
| 28 |
38770-HL4-D73 |
UNIT COMP Price: $273.95 |
| 29 |
38941-K2F-NC1 |
CAP Price: $2.04 |
| 30 |
38950-K2F-NC1 |
UNIT COMP Price: $128.42 |
| 31 |
39523-HL4-AZ0 |
SCREW (#4-20X0.45) Price: $5.75 |
| 32 |
39601-HL4-AZ1 |
COVER, TERMINAL Price: $7.84 |
| 33 |
39602-HL4-AZ1 |
ASSY., POWER BLOCK Price: $196.96 |
| 34 |
53105-KJ9-003 |
CLIP, WIRE HARNESS Price: $3.87 |
| 35 |
90052-ZA0-800 |
WASHER, SPRING (6MM) (Honda Code 1310549) Price: $1.36 |
| 36 |
90149-HL4-B70 |
SCREW (3X8) Price: $0.98 |
| 37 |
90307-HL4-B70 |
NUT, HEX. (M6) Price: $1.85 |
| 38 |
90521-HL4-B70 |
WASHER (M6) Price: $0.73 |
| 39 |
90651-HL3-G01 |
CLAMP, TUBE (D18) Price: $2.84 |
| 40 |
90651-K1N-V61 |
CLIP, CONNECTOR (DARK BLUE) (NOT AVAILABLE) Price: $0.96 |
| 41 |
90651-K2T-V01 |
CLIP, CONNECTOR Price: $1.33 |
| 42 |
90652-HC4-003 |
CLAMP, HARNESS Price: $7.47 |
| 43 |
90652-KT1-771 |
BAND, WIRE (BLACK) Price: $5.62 |
| 44 |
90653-HC4-900 |
CLIP, SPLASH GUARD (Honda Code 3795994) Price: $0.67 |
| 45 |
91535-STK-003 |
CLIP, CONNECTOR (DARK BLUE) Price: $7.70 |
| 46 |
91771-MKK-H11 |
CAP, DUMMY (6P) (RED) Price: $25.67 |
| 47 |
92301-04012-0A |
BOLT (4X12) Price: $1.13 |
| 48 |
93903-25280 |
SCREW, TAPPING (5X12) Price: $1.42 |
| 49 |
94002-06390-0S |
NUT, HEX. (6MM) Price: $1.06 |
| 50 |
94050-06000 |
NUT, FLANGE (6MM) Price: $0.68 |
| 51 |
95012-13001 |
BAND B2, BATTERY Price: $6.64 |
| 52 |
95012-17001 |
BAND F, BATTERY (155MM) Price: $9.07 |
| 53 |
95701-06012-08 |
BOLT, FLANGE (6X12) Price: $1.70 |
| 54 |
95701-06022-08 |
BOLT, FLANGE (6X22) Price: $1.88 |
| 55 |
98200-40500 |
FUSE, MINI (5A) (Honda Code 5026521) Price: $1.38 |
| 56 |
98200-41000 |
FUSE, MINI (10A) Price: $1.38 |
| 57 |
98200-41500 |
FUSE, MINI (15A) (Honda Code 4853438) Price: $1.27 |
| 58 |
98200-42000 |
FUSE, MINI (20A) Price: $1.27 |
