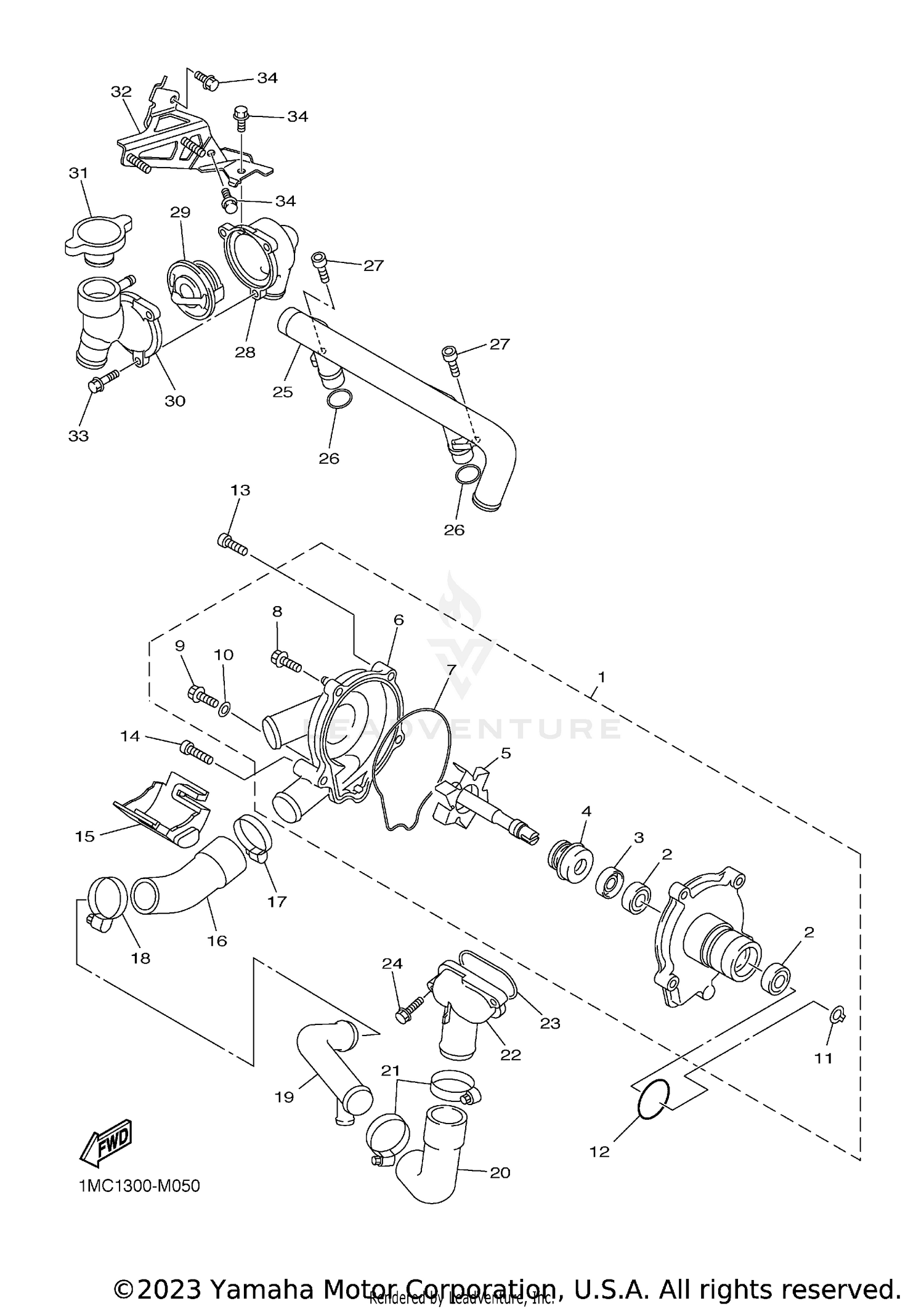

| Ref | Part Number | Description |
|---|
| 1 |
1MC-12420-01-00 |
WATER PUMP ASSY Price: $320.99 |
| 2 |
93306-00105-00 |
BEARING This part replaces 93306-00106-00. Price: $33.99 |
| 3 |
93102-12372-00 |
OIL SEAL Price: $13.49 |
| 4 |
5VK-12438-00-00 |
SEAL, MECHANICAL Price: $66.99 |
| 5 |
5JW-12450-00-00 |
IMPELLER SHAFT ASSY Price: $80.99 |
| 6 |
1MC-12422-00-00 |
COVER, HOUSING Price: $124.99 |
| 7 |
5JW-12439-00-00 |
O-RING Price: $14.49 |
| 8 |
90105-06065-00 |
BOLT, FLANGE Price: $4.25 |
| 9 |
95024-06025-00 |
BOLT, FLANGE (SMALL HEAD) Price: $2.45 |
| 10 |
90430-06014-00 |
GASKET Price: $8.60 |
| 11 |
99009-12400-00 |
CIRCLIP Price: $3.59 |
| 12 |
93210-33133-00 |
O-RING Price: $3.80 |
| 13 |
90110-06336-00 |
BOLT, HEXAGON SOCKET HEAD Price: $2.95 |
| 14 |
90110-06337-00 |
BOLT, HEXAGON SOCKET HEAD Price: $3.85 |
| 15 |
1MC-12437-00-00 |
STOPPER Price: $14.49 |
| 16 |
5JW-12576-00-00 |
HOSE 1 Price: $31.99 |
| 17 |
90450-38003-00 |
HOSE CLAMP ASSY Price: $18.49 |
| 18 |
90450-38040-00 |
HOSE CLAMP ASSY Price: $19.49 |
| 19 |
3P6-12581-00-00 |
JOINT, HOSE 1 Price: $84.99 |
| 20 |
5JW-12577-00-00 |
HOSE 2 Price: $32.99 |
| 21 |
90450-38040-00 |
HOSE CLAMP ASSY Price: $19.49 |
| 22 |
5JW-12469-00-00 |
JOINT 1 Price: $39.99 |
| 23 |
93210-47675-00 |
O-RING Price: $7.49 |
| 24 |
95022-06020-00 |
BOLT, FLANGE This part replaces 90105-06082-00. Price: $3.90 |
| 25 |
1MC-12481-00-00 |
PIPE 1 Price: $153.99 |
| 26 |
93210-18417-00 |
O-RING Price: $8.49 |
| 27 |
91312-06016-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 28 |
3P6-12417-00-00 |
HOUSING, THERMOSTAT Price: $42.99 |
| 29 |
1MC-12410-01-00 |
THERMOSTAT ASSY Price: $33.99 |
| 30 |
3P6-12591-00-00 |
SUPPORT, FILLER NECK Price: $66.99 |
| 31 |
1B3-12462-00-00 |
CAP, RADIATOR This part replaces 5JW-12462-00-00. Price: $73.99 |
| 32 |
1MC-1244E-00-00 |
BRACKET 1 Price: $28.99 |
| 33 |
95022-06020-00 |
BOLT, FLANGE Price: $3.90 |
