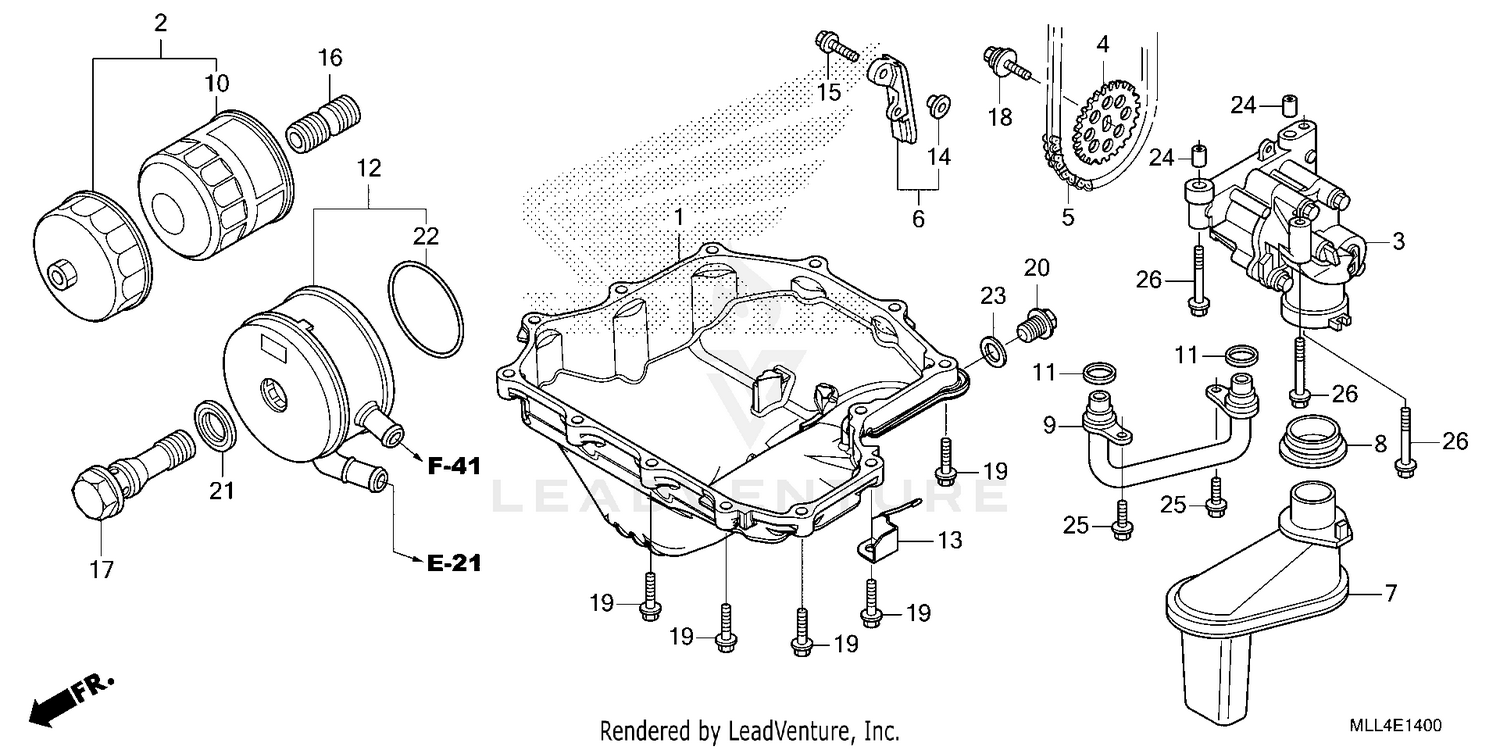

| Ref | Part Number | Description |
|---|
| 1 |
11210-MLL-D01 |
PAN, OIL (NOT AVAILABLE) Price: $180.00 |
| 3 |
15100-MKF-D40 |
PUMP ASSY., OIL Price: $261.78 |
| 4 |
15134-MEL-000 |
SPROCKET, OIL PUMP DRIVEN (25T) Price: $52.89 |
| 5 |
15141-MFL-003 |
CHAIN, OIL PUMP (72L) Price: $23.45 |
| 6 |
15146-MFL-000 |
GUIDE, OIL PUMP CHAIN Price: $8.27 |
| 7 |
15150-MFL-000 |
STRAINER, OIL Price: $38.09 |
| 8 |
15154-MAT-000 |
GASKET, OIL STRAINER Price: $7.73 |
| 9 |
15310-MFL-000 |
PIPE, OIL Price: $88.95 |
| 10 |
15410-MFJ-D02 |
FILTER, OIL (WAKO FILTER) Price: $18.63 |
| 11 |
15433-MFJ-D01 |
RING, SEAL Price: $2.36 |
| 12 |
15700-MGP-003 |
COOLER, OIL Price: $363.67 |
| 13 |
32108-MLL-D00 |
STAY, HARNESS LAF (NOT AVAILABLE) Price: $6.73 |
| 14 |
61107-MCR-D00 |
COLLAR, FR. FENDER Price: $2.56 |
| 15 |
90011-MFL-000 |
BOLT, FLANGE (6X20) Price: $2.15 |
| 16 |
90019-MB0-000 |
BOSS, OIL FILTER (Honda Code 1243435) Price: $10.44 |
| 17 |
90019-MGP-D60 |
BOLT, OIL COOLER Price: $75.82 |
| 18 |
90021-MM5-000 |
BOLT-WASHER (6X12) (Honda Code 2551760) Price: $6.42 |
| 19 |
90028-GHB-690 |
BOLT, FLANGE (6X28) (S-NSHF) Price: $1.25 |
| 20 |
90131-896-650 |
BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000. Price: $2.76 |
| 21 |
90402-MFJ-D01 |
WASHER, SEALING (34.5MM) Price: $9.07 |
| 22 |
91354-MCT-003 |
O-RING, OIL COOLER Price: $9.96 |
| 23 |
94109-12000 |
WASHER, DRAIN PLUG (12MM) Price: $1.28 |
| 24 |
94301-08140 |
PIN, DOWEL (8X14) (Honda Code 0069310) Price: $2.35 |
| 25 |
95701-06016-00 |
BOLT, FLANGE (6X16) (Honda Code 2410892) Price: $1.70 |
| 26 |
95701-06045-07 |
BOLT, FLANGE (6X45) This part replaces 95701-06045-00. Price: $2.27 |
