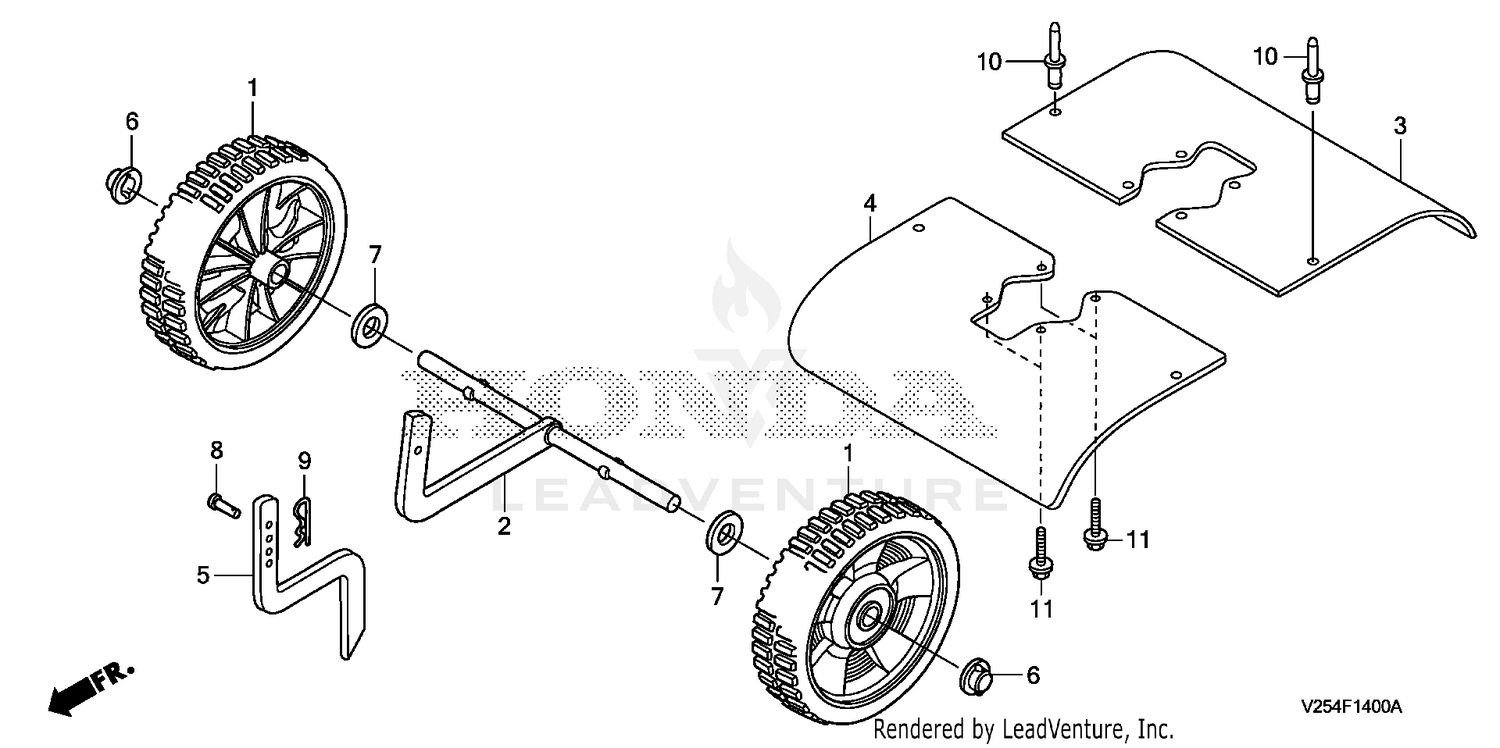

FENDER@WHEEL (FG110)
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 42710-V25-000 | SEE PART DETAILS - PRI; WHEEL, RR. Price: $3.95 |
| 2 | 44330-V25-000 | BAR, WHEEL Price: $92.36 |
| 3 | 63411-V25-000 | FENDER, RR. Price: $11.55 |
| 4 | 65141-V25-000 | FENDER, FR. Price: $10.61 |
| 5 | 72481-V25-000 | BAR, DRAG Price: $78.72 |
| 6 | 90301-V10-000 | NUT, PUSH (12.7MM) Price: $1.30 |
| 7 | 90505-VG3-000 | WASHER, THRUST (13X27X1) Price: $0.46 |
| 8 | 90751-V25-000 | PIN, LOCK Price: $0.82 |
| 9 | 90752-V25-000 | PIN, LOCK (6.35MM) Price: $15.04 |
| 10 | 90852-V25-000 | RIVET (4.8X9.8) Price: $0.26 |
