| Ref | Part Number | Description |
|---|
| 1 |
1TD-F1600-P0-00 |

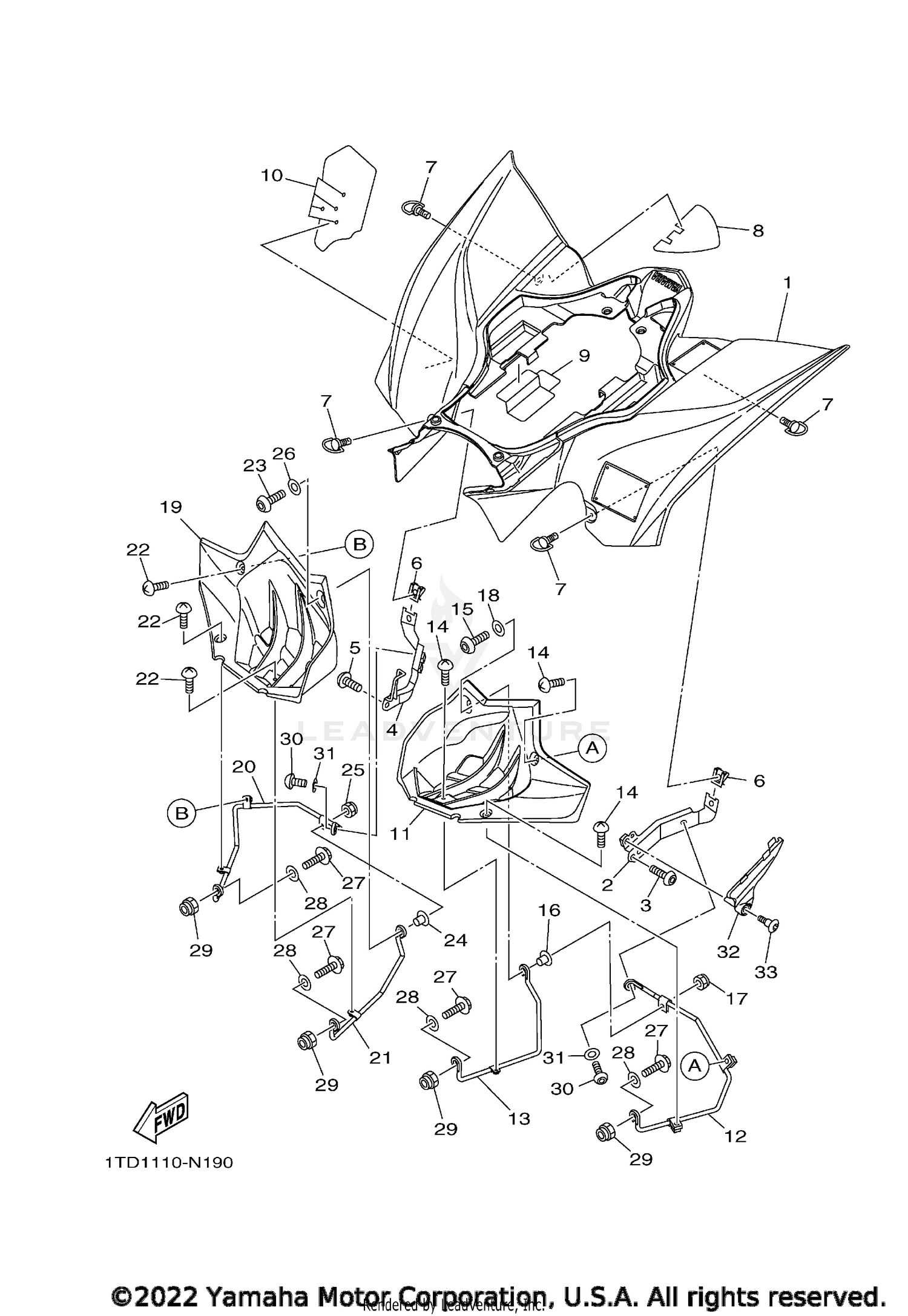

REAR FENDER ASSY Price: $309.99 |
| 2 |
18P-21643-00-00 |
STAY, FENDER 3 Price: $36.99 |
| 3 |
92012-08016-00 |
BOLT, BUTTON HEAD Price: $10.49 |
| 4 |
18P-21644-00-00 |
STAY, FENDER 4 Price: $36.99 |
| 5 |
92012-08016-00 |
BOLT, BUTTON HEAD Price: $10.49 |
| 6 |
4XV-2177L-01-00 |
PLATE, SPRING Price: $7.49 |
| 7 |
8HG-28386-00-00 |
HEAD Price: $34.99 |
| 8 |
1TD-21652-00-00 |
PROTECTOR Price: $15.49 |
| 9 |
18P-2163E-00-00 |
COVER, 2 Price: $11.99 |
| 10 |
1TD-2163F-00-00 |
COVER, REAR FENDER 3 Price: $14.49 |
| 11 |
1TD-F1621-00-00 |
FLAP Price: $19.99 |
| 12 |
1TD-2164F-00-00 |
STAY 1 Price: $41.99 |
| 13 |
1TD-2164H-00-00 |
STAY 3 Price: $39.99 |
| 14 |
90154-05043-00 |
SCREW, BINDING Price: $9.49 |
| 15 |
92012-06030-00 |
BOLT, BUTTON HEAD Price: $3.35 |
| 16 |
90387-06205-00 |
COLLAR Price: $8.49 |
| 17 |
95604-06200-00 |
NUT, U FLANGE This part replaces 95602-06200-00. Price: $2.95 |
| 18 |
90201-06380-00 |
WASHER PLAIN This part replaces 90201-06076-00. Price: $0.65 |
| 19 |
1TD-F1691-00-00 |
FLAP Price: $19.99 |
| 20 |
1TD-2164G-00-00 |
STAY 2 Price: $46.99 |
| 21 |
1TD-2164J-00-00 |
STAY 4 Price: $39.99 |
| 22 |
90154-05043-00 |
SCREW, BINDING Price: $9.49 |
| 23 |
92012-06030-00 |
BOLT, BUTTON HEAD Price: $3.35 |
| 24 |
90387-06205-00 |
COLLAR Price: $8.49 |
| 25 |
95604-06200-00 |
NUT, U FLANGE This part replaces 95602-06200-00. Price: $2.95 |
| 26 |
90201-06380-00 |
WASHER PLAIN This part replaces 90201-06076-00. Price: $0.65 |
| 27 |
95817-08025-00 |
BOLT, FLANGE This part replaces 95822-08025-00. Price: $9.49 |
| 28 |
90201-08048-00 |
WASHER, PLATE Price: $6.49 |
| 29 |
95602-08200-00 |
NUT, SELF-LOCKING Price: $3.20 |
| 30 |
92012-08020-00 |
BOLT, BUTTON HEAD Price: $2.80 |
| 31 |
90201-08043-00 |
WASHER, PLATE Price: $8.49 |
| 32 |
18P-2163A-01-00 |
COVER, REAR FENDER Price: $8.49 |
