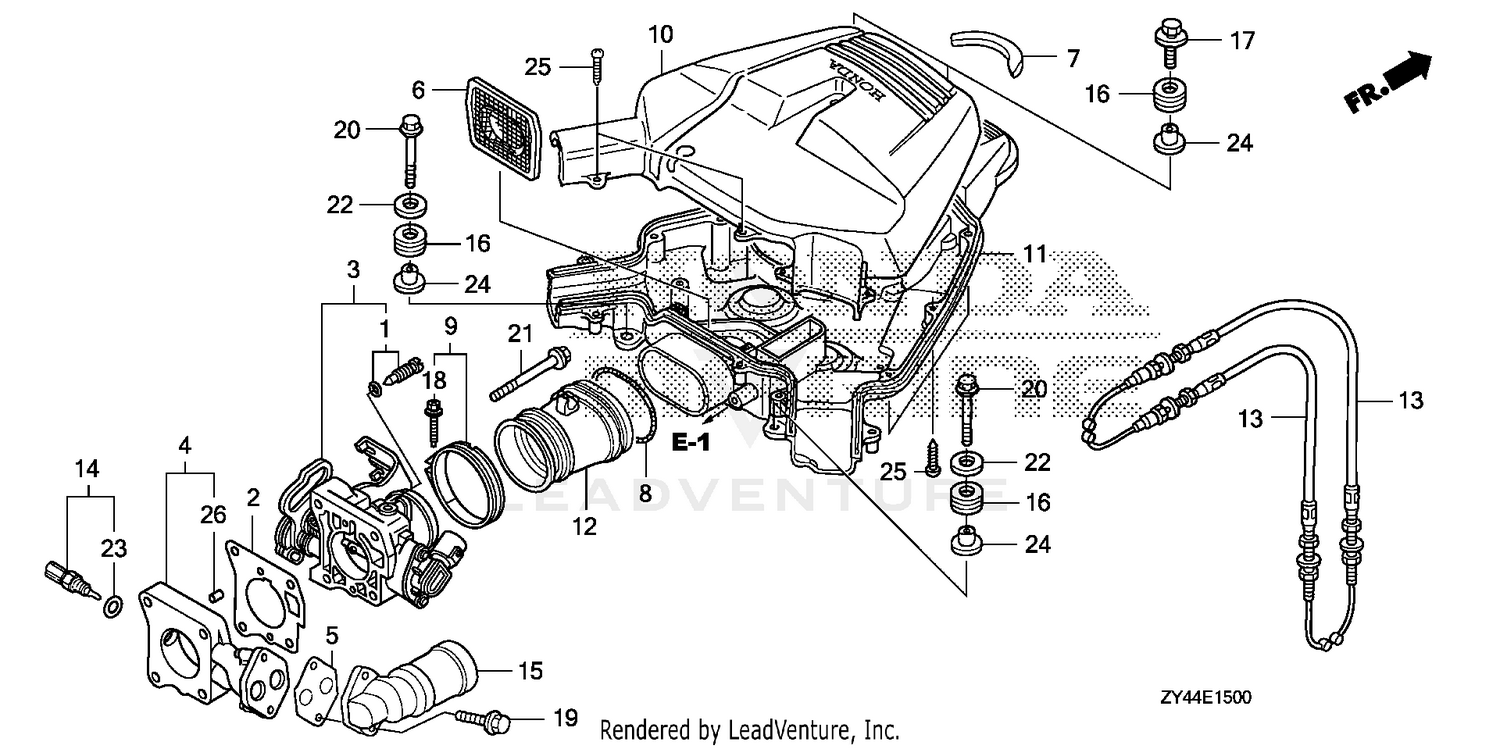

| Ref | Part Number | Description |
|---|
| 1 |
16016-ZY3-003 |
SCREW SET Price: $13.74 |
| 2 |
16176-ZY3-000 |
GASKET, THROTTLE BODY Price: $4.64 |
| 3 |
16400-ZY4-A01 |
BODY ASSY., THROTTLE Price: $911.24 |
| 4 |
16404-ZY3-000 |
SPACER, THROTTLE BODY Price: $140.72 |
| 5 |
16405-ZY3-000 |
GASKET, EAC VALVE Price: $3.90 |
| 6 |
17203-ZY3-000 |
TRAP, FLAME Price: $46.04 |
| 7 |
17207-ZY3-300 |
RUBBER, SEAL MUFFLER Price: $4.32 |
| 8 |
17249-PY3-000 |
SPRING, AIR FLOW TUBE Price: $12.34 |
| 9 |
17315-ZY9-M01 |
BAND, AIR FLOW Price: $16.20 |
| 10 |
17372-ZY3-000 |
CASE A, MUFFLER Price: $225.98 |
| 11 |
17373-ZY3-010 |
CASE B, MUFFLER Price: $51.90 |
| 12 |
17374-ZY3-010 |
GROMMET, MUFFLER Price: $32.86 |
| 13 |
17910-ZY3-013 |
CABLE, THROTTLE Price: $35.64 |
| 14 |
35665-ZW5-003 |
SENSOR ASSY., AIR TEMPERATURE Price: $26.50 |
| 15 |
36550-ZY3-003 |
VALVE ASSY., EAC Price: $522.02 |
| 16 |
40102-ZV5-000 |
GROMMET, CASE (LOWER) Price: $3.62 |
| 17 |
90013-ZW1-000 |
BOLT-WASHER (6X25) Price: $3.40 |
| 18 |
90017-ZY9-000 |
BOLT-WASHER (5X30) Price: $4.50 |
| 19 |
90030-ZY3-000 |
BOLT, FLANGE (6X22) Price: $1.26 |
| 20 |
90034-ZVL-010 |
BOLT, FLANGE (6X60) This part replaces 90034-ZY3-000. Price: $1.42 |
| 21 |
90037-ZY3-000 |
BOLT, FLANGE (8X65) Price: $2.10 |
| 22 |
90508-ZZ5-M01 |
WASHER, PLAIN (6MM) This part replaces 90508-ZY3-000. Price: $2.48 |
| 23 |
91303-P0A-A02 |
O-RING Price: $5.20 |
| 24 |
91553-ZV5-010 |
SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI) Price: $3.66 |
| 25 |
93903-254G0 |
SCREW, TAPPING (5X20) Price: $3.62 |
