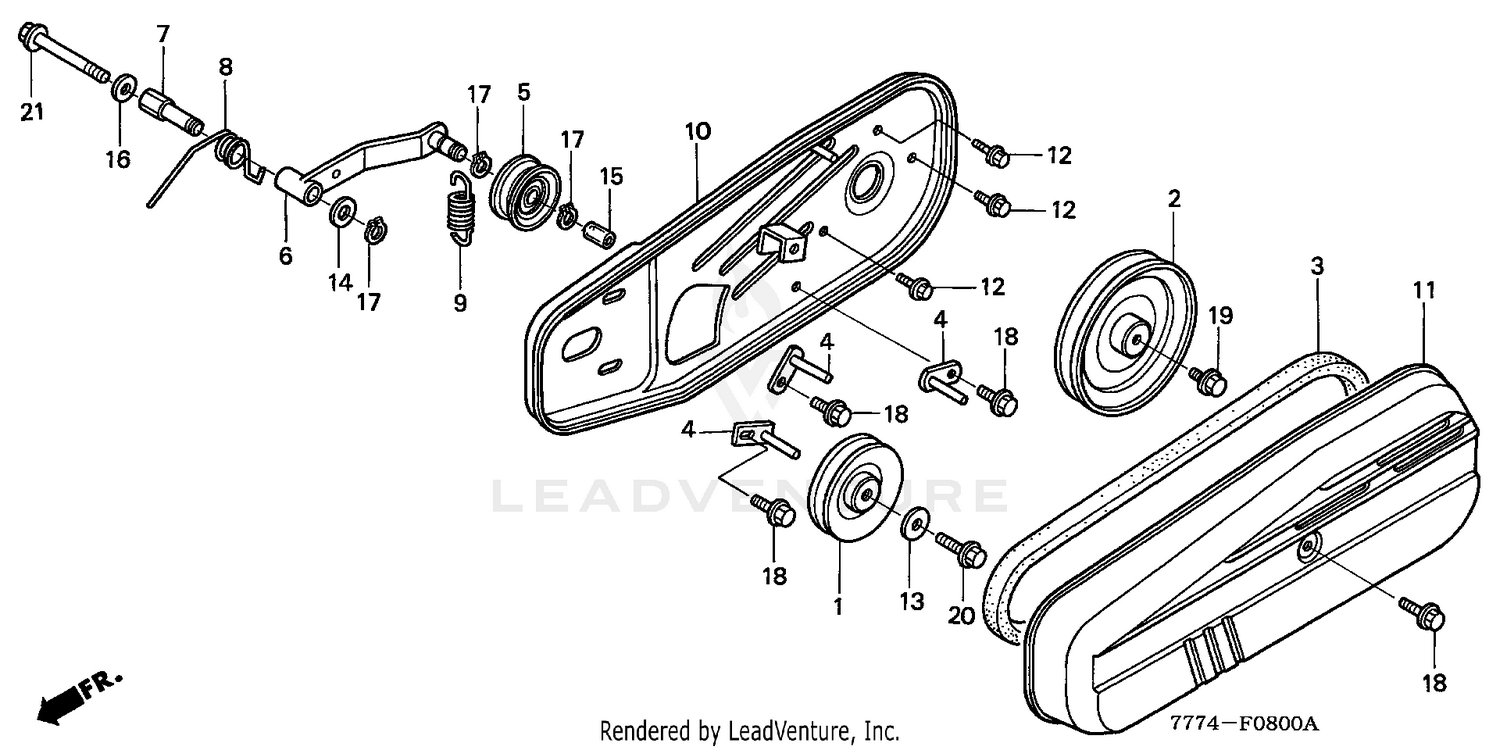

| Ref | Part Number | Description |
|---|
| 1 |
22411-733-751 |
PULLEY, DRIVE (80MM) Price: $50.02 |
| 2 |
22420-773-000 |
PULLEY, DRIVEN (130MM) Price: $51.22 |
| 3 |
22431-777-731 |
V-BELT (SB-38) Price: $42.84 |
| 4 |
22442-777-000 |
STOPPER A, BELT Price: $11.32 |
| 5 |
22465-777-003 |
ROLLER, TENSIONER Price: $44.82 |
| 6 |
22520-777-000 |
ARM, TENSIONER Price: $47.86 |
| 7 |
22523-777-003 |
SHAFT, TENSIONER ARM Price: $26.20 |
| 8 |
22529-773-000 |
SPRING, TENSIONER ARM RETURN Price: $3.26 |
| 9 |
22531-777-000 |
SPRING, BELT TENSIONER Price: $17.56 |
| 10 |
50651-777-003ZC |
COVER, BELT (INNER) *R280* (POWER RED) Price: $77.58 |
| 11 |
63611-777-003ZC |
SEE PART DETAILS - PRI; COVER, BELT *R280* (POWER RED) Price: $48.78 |
| 12 |
90014-952-000 |
BOLT, FLANGE (6X14) (Honda Code 0803619). Price: $2.94 |
| 13 |
90428-844-650 |
WASHER (8MM) Price: $4.70 |
| 14 |
90528-229-000 |
WASHER (12.5MM) Price: $2.66 |
| 15 |
91451-777-003 |
TUBE, VINYL (10MM) Price: $6.88 |
| 16 |
94102-10000 |
SEE PART DETAILS - PRI; WASHER, PLAIN (10MM) (Honda Code 0172551). Price: $0.94 |
| 17 |
94510-12000 |
CIRCLIP (OUTER) (12MM) Use up to Engine SN 2056819. Price: $2.28 |
| 18 |
95701-08016-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016. Price: $2.26 |
| 19 |
95701-08018-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X18) (Honda Code 2563237). Price: $2.02 |
| 20 |
95701-08025-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X25) Price: $0.92 |
