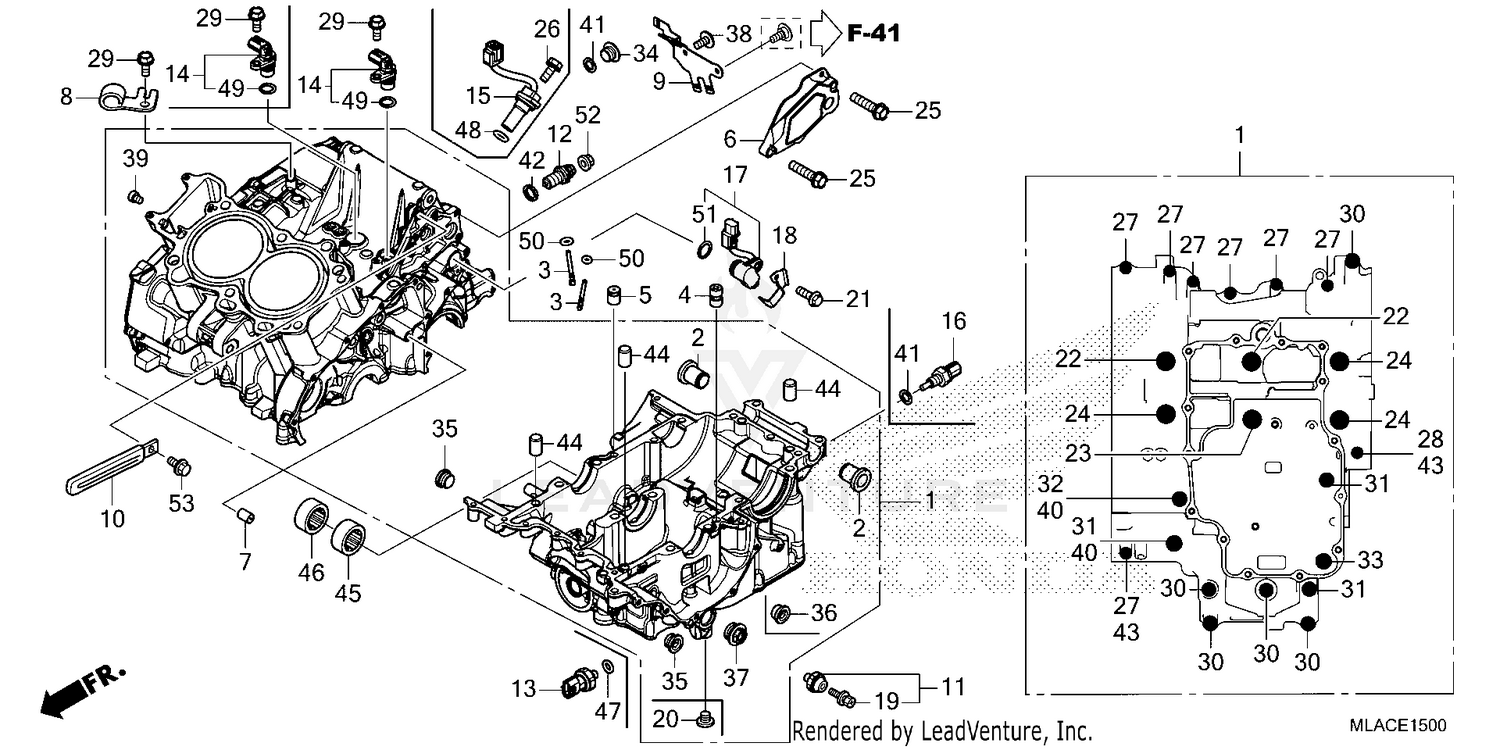

| Ref | Part Number | Description |
|---|
| 1 |
11000-MLA-A00 |
CRANKCASE SET Price: $3,076.19 |
| 2 |
11104-MJP-G50 |
COLLAR, ENGINE HANGER Price: $12.87 |
| 3 |
11140-MLN-E00 |
JET, OIL Price: $22.87 |
| 4 |
11206-MJP-G50 |
ORIFICE Price: $7.40 |
| 5 |
11207-MKS-E00 |
ORIFICE (1.2MM) Price: $4.02 |
| 6 |
11520-MJP-G50 |
COVER, REDUCTION GEAR Price: $27.69 |
| 7 |
15516-MGS-D30 |
ORIFICE (0.8MM) Price: $6.95 |
| 8 |
22821-MJP-G50 |
RECEIVER, CLUTCH CABLE Price: $10.60 |
| 9 |
32155-MLA-A00 |
STAY, HARNESS CLIP Price: $12.71 |
| 10 |
32170-443-850 |
CLIP, WIRE HARNESS Price: $5.87 |
| 11 |
35500-MEH-661 |
SWITCH ASSY., OIL PRESSURE (DENSO) Price: $55.84 |
| 12 |
35600-MKF-D41 |
SWITCH ASSY., NEUTRAL Price: $24.71 |
| 14 |
37700-MJE-D01 |
SENSOR ASSY., SPEED (TDK-EPC) Price: $29.33 |
| 17 |
38800-MJP-G81 |
SENSOR ASSY., ANGLE (350DEGREE) Price: $214.18 |
| 18 |
38805-MJP-G80 |
COVER, ANGLE SENSOR Price: $10.58 |
| 19 |
90002-PA6-003 |
BOLT-WASHER (4X8) (DENSO) Price: $6.13 |
| 21 |
90011-MGE-D00 |
BOLT, KNOCK (6MM) Price: $3.29 |
| 22 |
90015-MJP-G50 |
BOLT, FLANGE (10X110) Price: $9.16 |
| 23 |
90015-MKS-E00 |
BOLT, FLANGE (10X130) Price: $6.71 |
| 24 |
90016-MJP-G50 |
BOLT, FLANGE (10X145) Price: $11.55 |
| 25 |
90026-GHB-680 |
BOLT, FLANGE (6X25) Price: $2.49 |
| 27 |
90030-GHB-720 |
BOLT, FLANGE (6X35) Price: $2.60 |
| 28 |
90030-GHB-780 |
BOLT, FLANGE (6X60) Price: $2.96 |
| 29 |
90031-GHB-640 |
BOLT, FLANGE (6X16) Price: $2.58 |
| 30 |
90035-GHB-740 |
BOLT, FLANGE (8X40) Price: $2.89 |
| 31 |
90035-GHB-770 |
BOLT, FLANGE (8X55) Price: $3.49 |
| 32 |
90035-GHB-850 |
BOLT, FLANGE (8X95) Price: $4.64 |
| 33 |
90040-GHB-810 |
BOLT, FLANGE (10X75) Price: $5.82 |
| 34 |
90044-MKC-A00 |
BOLT, SPECIAL (10X12) Price: $5.09 |
| 35 |
90046-MKK-D00 |
BOLT, SEALING (18MM) Price: $9.91 |
| 37 |
90048-MFL-000 |
BOLT, SEALING (22MM) Price: $10.85 |
| 38 |
90106-KSE-000 |
SCREW, PAN (6X12) Price: $2.18 |
| 39 |
90119-SD9-000 |
BOLT, SEALING (8MM) Price: $6.36 |
| 40 |
90442-028-000 |
WASHER, SEALING (8MM) Price: $2.02 |
| 41 |
90443-MB0-000 |
WASHER, SEALING (10.2MM) Price: $3.53 |
| 42 |
90443-MJ6-000 |
WASHER, NEUTRAL Price: $2.20 |
| 43 |
90488-425-000 |
WASHER, SEALING (6MM) Price: $2.60 |
| 44 |
90701-MV9-670 |
PIN, DOWEL (10X16) (Honda Code 3906971) Price: $5.40 |
| 45 |
91021-MKS-E01 |
BEARING, NEEDLE (12X16X10) Price: $11.09 |
| 46 |
91022-MKS-E01 |
BEARING, SEAL NEEDLE (12X18X14) Price: $12.16 |
| 49 |
91303-KF0-003 |
O-RING (14.8X2.4) (ARAI) Price: $2.02 |
| 50 |
91305-MCJ-751 |
O-RING (3.2X1.1) Price: $2.27 |
| 51 |
91310-MGE-D01 |
O-RING (16.5X2.5) Price: $5.49 |
| 52 |
94050-04000 |
NUT, FLANGE (4MM) Price: $1.28 |
