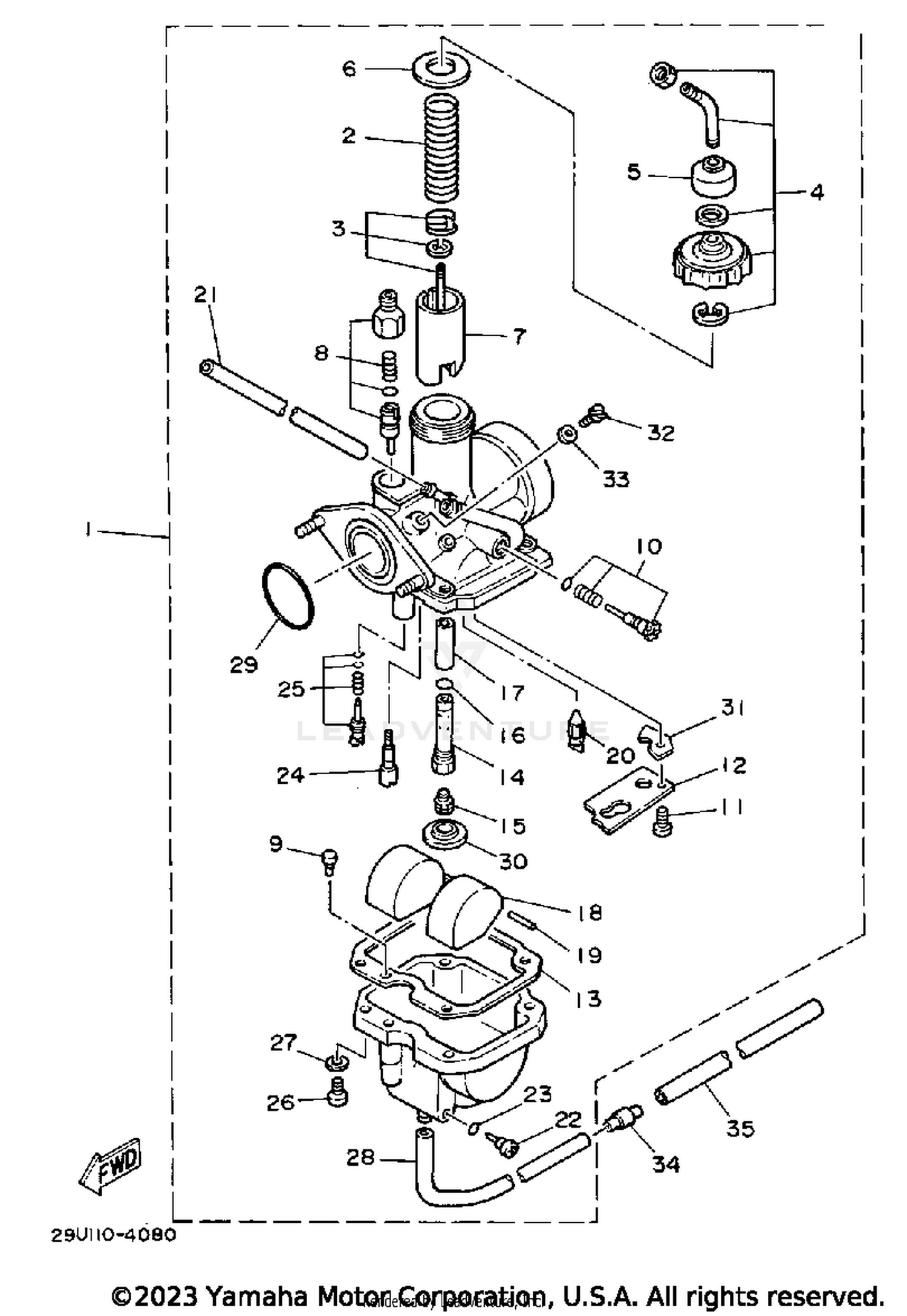

| Ref | Part Number | Description |
|---|
| 1 |
29U-14101-03-00 |
CARBURETOR ASSY 1 This part replaces 29U-14101-02-00. Price: $421.99 |
| 2 |
21V-14131-00-00 |
SPRING, THROTTLE VALVE Price: $10.99 |
| 3 |
29U-1490J-00-00 |
NEEDLE SET Price: $19.99 |
| 4 |
29U-14106-00-00 |
CABLE ADJUST SCREW SET Price: $27.99 |
| 5 |
3X3-14169-00-00 |
CAP This part replaces 1M1-14169-00-00. Price: $17.99 |
| 6 |
4U5-14126-00-00 |
GASKET Price: $14.49 |
| 7 |
29U-14112-35-00 |
VALVE,THROTTLE 1 Price: $62.07 |
| 8 |
21V-1410A-00-00 |
STARTER SET Price: $115.99 |
| 9 |
18M-14144-18-00 |
JET,STARTER Price: $3.36 |
| 10 |
18G-14103-00-00 |
THROTTLE SCREW SET Price: $30.99 |
| 11 |
98580-03008-00 |
SCREW, PAN HEAD (98501-03008-00 Price: $3.85 |
| 12 |
21V-14146-00-00 |
PLATE Price: $16.49 |
| 13 |
24W-14184-00-00 |
GASKET, FLOAT CHAMBER Price: $24.99 |
| 14 |
21V-14141-28-00 |
NOZZLE,MAIN Price: $42.99 |
| 16 |
583-14561-00-00 |
O-RING Price: $5.99 |
| 17 |
21V-14148-00-00 |
JET, HOLDER Price: $24.99 |
| 18 |
21V-14185-00-00 |
FLOAT Price: $76.99 |
| 19 |
127-14186-00-00 |
PIN, FLOAT Price: $6.75 |
| 20 |
5HH-14190-18-00 |
NEEDLE VALVE ASSY This part replaces 21V-14190-18-00. Price: $46.99 |
| 21 |
26H-14197-01-00 |
PIPE This part replaces 3Y1-14197-00-00. Price: $42.99 |
| 22 |
2L1-14191-00-00 |
PLUG, DRAIN Price: $32.99 |
| 23 |
214-14147-00-00 |
O-RING Price: $8.49 |
| 24 |
3H1-14142-20-00 |
JET, PILOT #20 Price: $15.49 |
| 25 |
21V-14105-00-00 |
PILOT SCREW SET Price: $18.99 |
| 26 |
98517-04016-00 |
SCREW, PAN HEAD This part replaces 98511-04016-00. Price: $9.49 |
| 27 |
92990-04100-00 |
WASHER, SPRING This part replaces 92901-04100-00. Price: $0.95 |
| 28 |
90445-084J0-00 |
PIPE This part replaces 90445-08619-00. Price: $20.99 |
| 29 |
29U-14147-00-00 |
O-RING Price: $25.99 |
| 30 |
5V7-14153-00-00 |
WASHER, MAIN JET Price: $24.99 |
| 31 |
24W-14146-00-00 |
PLATE Price: $4.84 |
| 32 |
341-14991-00-00 |
PLUG, SCREW Price: $5.99 |
| 33 |
584-14956-00-00 |
WASHER, PLUG SCREW Price: $6.49 |
| 34 |
24W-14193-00-00 |
PIPE Price: $45.99 |
