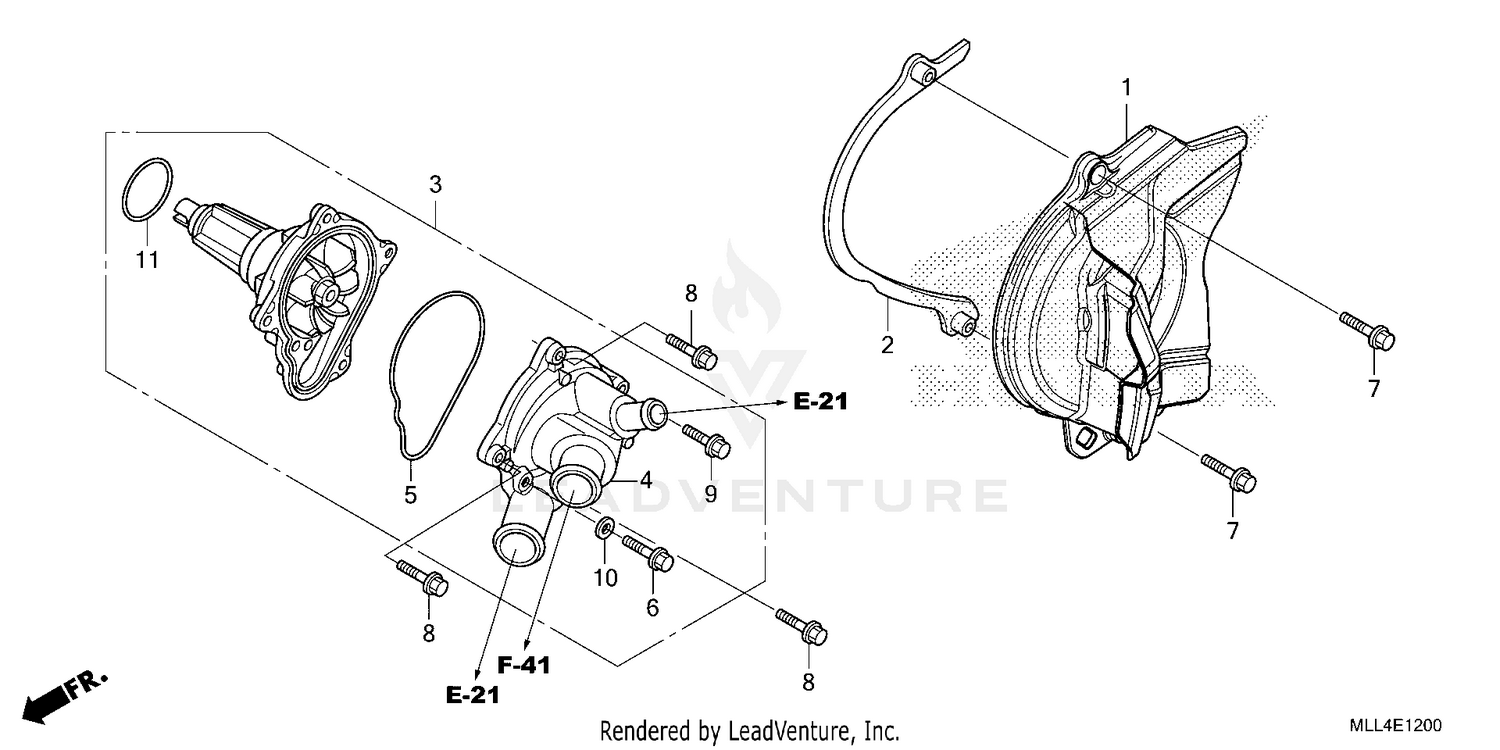

WATER PUMP
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11350-MLT-D00 | COVER, L. RR. Price: $24.35 |
| 2 | 11355-MLL-D00 | PLATE, DRIVE CHAIN GUIDE (NOT AVAILABLE) Price: $16.75 |
| 3 | 19200-MFL-315 | WATER PUMP ASSY. Price: $214.96 |
| 4 | 19220-MFL-010 | COVER COMP Price: $111.15 |
| 5 | 19226-MFL-000 | GASKET, WATER PUMP COVER Price: $7.49 |
| 6 | 90003-HN2-000 | BOLT, FLANGE (6X30) (CT200) Price: $1.47 |
| 7 | 90022-MKF-D40 | BOLT, FLANGE (6X25) Price: $3.09 |
| 8 | 90028-GHB-710 | BOLT (6X32) Price: $2.15 |
| 9 | 90121-MV9-670 | BOLT, FLANGE (6X25) Price: $3.40 |
| 10 | 90463-ML7-000 | WASHER, SEALING (6.5MM) Price: $3.53 |
